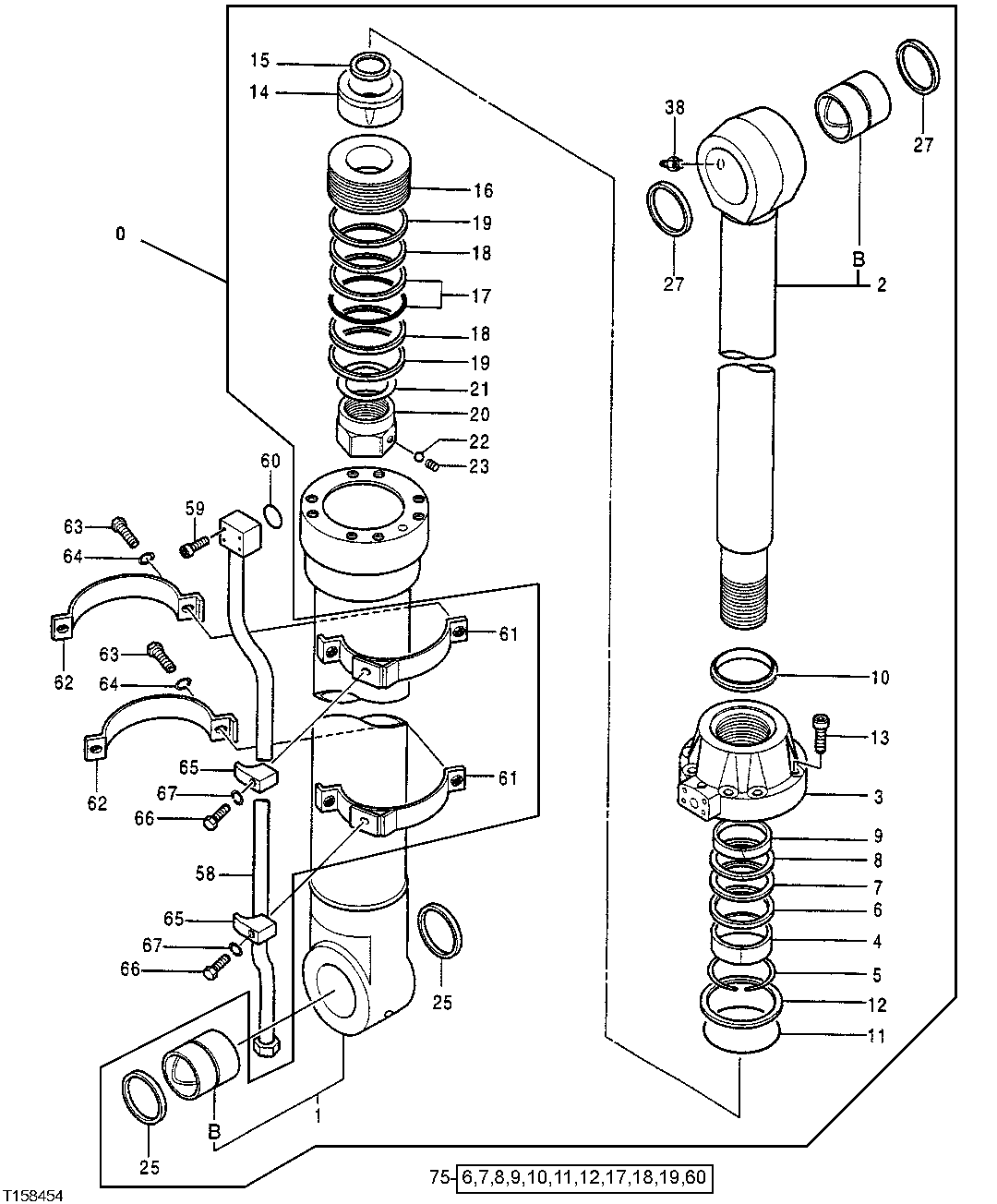

Bucket Cylinder Components (Long Arm)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AT182462	1	Cylinder	REMAN
0	-	1	Part 1	AT201824 NLA, SUB AT182462
1	0420401	1	Tube	SUB FOR AT201587
2	0420402	1	Hydraulic Cylinder Rod	SUB FOR AT201588
3	0420105	1	Cylinder Head	SUB FOR AT201573
4	0352704	1	Bushing	SUB FOR AT132283
5	0133103	1	Snap Ring	SUB FOR AT127275
6	AT132284	1	Ring	-
7	AT132285	1	Seal	-
8	AT132286	1	Back-Up Ring	-
9	AT204911	1	Ring	-
10	AT191197	1	Ring	SUB FOR AT132288
11	AT264240	1	O-Ring	SUB FOR AT132154
12	AT264252	1	Back-Up Ring	SUB FOR AT132399
13	0191412	8	Bolt	SUB FOR AT217053
14	0420106	1	Bearing	SUB FOR AT201574
15	0420113	1	Seal	SUB FOR AT201575
16	FXB00012870	1	Piston	SUB FOR AT201576 OR 0420108
17	AT264253	1	Ring	SUB FOR AT132400
18	AT264289	2	Ring	SUB FOR AT201577
19	AT264248	2	Ring	SUB FOR AT132175
20	0352713	1	Nut	SUB FOR AT132292
21	0352714	1	Shim	SUB FOR AT132293
22	R26552	1	Ball	7.938 mm (5/16")
23	H228111	1	Set Screw	SUB FOR AT132294 OR 0352715
25	0420403	2	Ring	SUB FOR AT201589 OR 4S00854
27	AT201578	2	Ring	-
38	TH100074	1	Lubrication Fitting	-
58	0646501	1	Oil Line	SUB FOR TH0646501
59	19M8395	4	Screw	M12 X 40
60	AT264348	1	O-Ring	SUB FOR TH102788
61	-	2	Part 34	0352719 NLA, SUB FOR AT132298
61	0875612	2	Half Clamp	-
62	0352721	2	Band	SUB FOR AT132300
63	19M7550	4	Cap Screw	M10 X 35
64	12M7066	4	Lock Washer	10 mm
65	0309219J	2	Half Clamp	SUB FOR 0309219 OR T108064
66	19M7363	2	Cap Screw	M12 X 60, SUB FOR 19M7273
67	12M7058	2	Lock Washer	12 mm, SUB FOR 12M7067
75	AT196471	1	Seal Kit	SUB FOR AT182708 OR AT191198
1B	4609091	1	Bushing	SUB FOR AT132309 OR 0352905
2B	4660855	1	Bushing	SUB FOR AT202246 OR 0420102

Bucket Cylinder Components (Long Arm)
