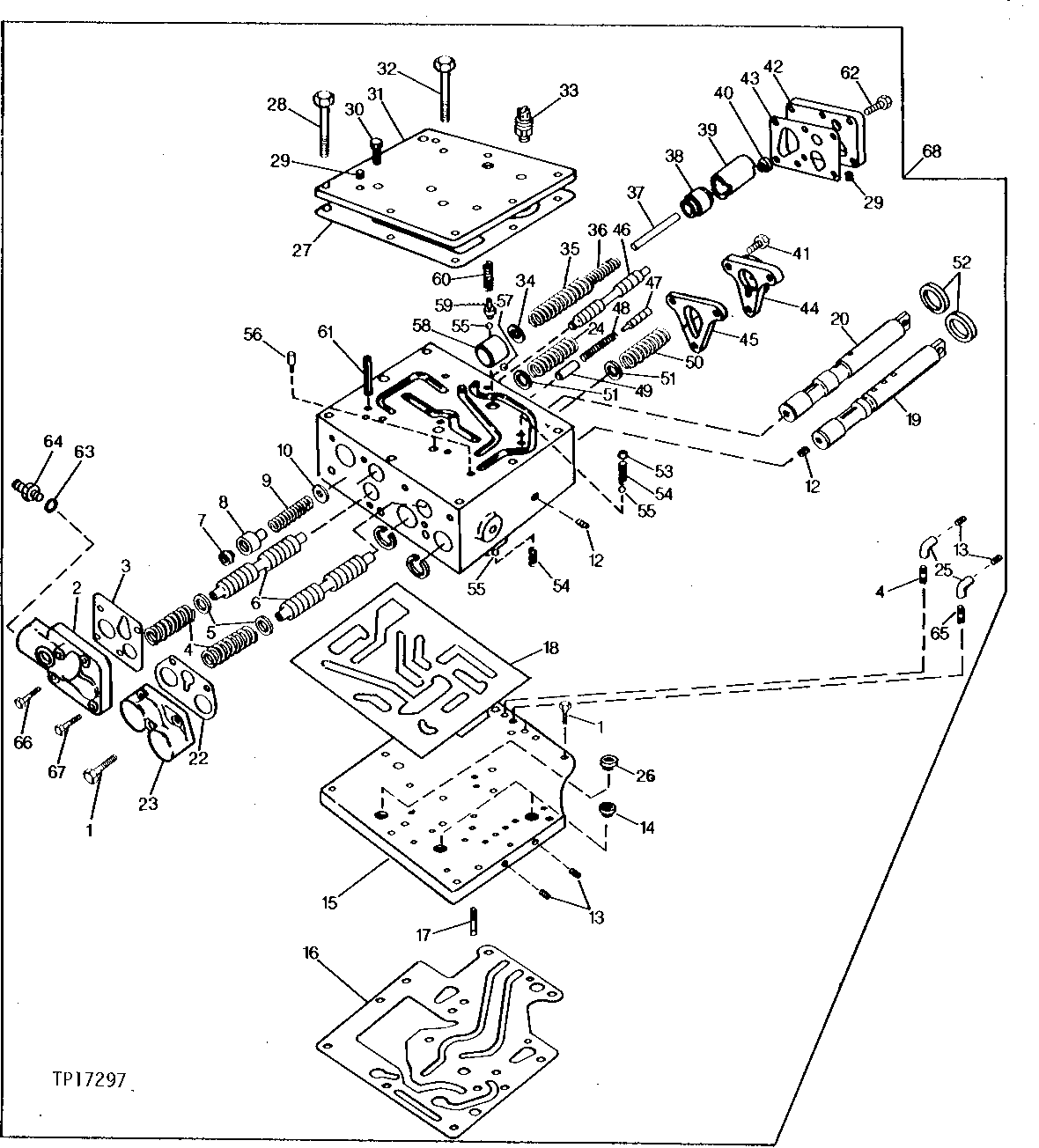

TRANSMISSION SELECTOR VALVE (SANDWICH PLATE, SPOOLS, MODULATING AND SELECTOR COVERS) (SERIAL NO. 719978- ) [01D21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3239	9	Cap Screw	3/8" X 1-1/4"
2	T104850	1	END PLATE	MODULATING VALVE
3	T212975	1	GASKET	(SUB FOR T104851)
4	29H763	1	THREADED NIPPLE	1/8", (REVERSE PORT)
5	T44884	2	Washer	-
6	T44873	2	SPOOL	FIRST, SECOND, AND DIRECTIONAL SEQUENCE
7	AT52233	1	ORIFICE	-
8	T44862	1	STOP	THIRD SEQUENCE SPOOL
9	T44880	1	Compression Spring	-
10	T44883	1	WASHER	-
11	-	1	Part 11	( AT104357 NO LONGER AVAILABLE)
12	15H275	2	Pipe Plug	1/4" 1/8"
13	15H558	3	Pipe Plug	1/8" 1/8"
14	AT43739	2	ORIFICE	FIRST, SECOND AND DIRECTION SEQUENCE SPOOLS
15	T104852	1	PLATE	SANDWICH
16	T44912	1	GASKET	-
17	19H3053	3	Screw	5/16" X 1"
18	T70140	1	GASKET	-
19	T44871	1	SPOOL	RANGE
20	T44872	1	SPOOL	DIRECTIONAL
21	T44869	2	SNAP RING	RETAINING
22	T44858	1	GASKET	-
23	T44852	1	COVER	SELECTOR SPOOL
24	T44879	2	COMPRESSION SPRING	REVERSE PORT
25	15H95	2	ELBOW FITTING	1/8", 45°
26	AT43740	2	ORIFICE	RATE AND RISE
27	T44857	1	GASKET	-
28	19H2229	7	Cap Screw	3/8" X 5-1/4"
29	15H558	5	Pipe Plug	1/8" 1/8"
30	19H2705	4	Cap Screw	5/16" X 1"
31	T44851	1	COVER	-
32	19H2345	2	Cap Screw	3/8" X 5-1/2"
33	AT80076	1	SWITCH	(NEUTRAL START)
34	T44848	1	WASHER	-
35	T44877	1	SPRING	-
36	T44876	1	COMPRESSION SPRING	-
37	T44863	1	PIN	-
38	T44866	1	HYDRAULIC PRESSURE VALVE	-
39	T44849	1	BUSHING	-

TRANSMISSION SELECTOR VALVE (SANDWICH PLATE, SPOOLS, MODULATING AND SELECTOR COVERS) (SERIAL NO. 719978- ) [01D21]

Нет текстового описания
