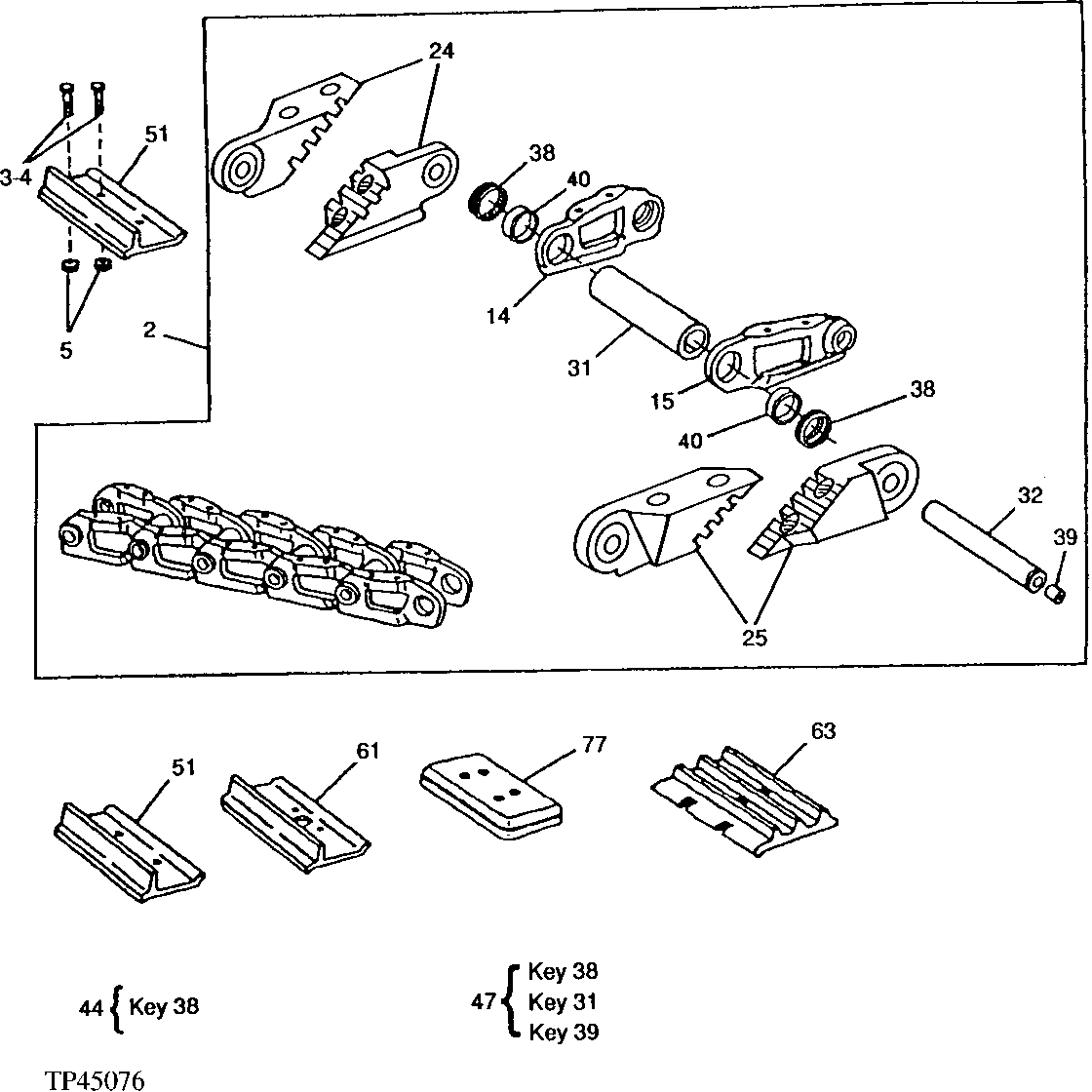

REPLACEMENT FOR LUBRICATED CHAIN 1/2", WITH NON-STRUTTED LINKS STD (36L) AND LT (39L) [01B13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	AT168612	2	TRACK CHAIN W/O SHOES	(39L)(BUSHING O.D.51 MM)(USE WITH SPROCKET T153045 OR T175962) (SUB FOR AT113037)
2	AT168607	2	TRACK CHAIN W/O SHOES	(37L)(BUSHING O.D.51 MM)(USE WITH SPROCKET T153045 OR T175962) (SUB FOR AT113035)
3	T74183	1	BOLT	QUANTITY IS 148 OR 156
3	19H3012	1	Cap Screw	1/2" X 2-3/8", (USE WITH RUBBER SHOE) QUANTITY IS 148 OR 156
4	T152271	2	Master Track Bolt	(SHORT BOLT)
4	T152272	2	Master Track Bolt	(LONG BOLT)
5	T74184	1	NUT	12.700 MM (1/2") QUANTITY IS 148 OR 156
14	T112081	1	NON-STRUTTED LINK-LH	QUANTITY IS 36 OR 38
15	T112080	1	NON-STRUTTED LINK-RH	QUANTITY IS 36 OR 38
24	AT168314	1	MASTER TRACK LINK-SPLIT-LH	-
25	AT168313	1	MASTER TRACK LINK-SPLIT-RH	-
31	T112245	1	BUSHING	QUANTITY IS 37 OR 39 (51 MM O.D.) (USE WITH T153045 OR T175962 SPROCKET)
32	T112247	1	Track Pin	QUANTITY IS 37 OR 39
38	AT113118	1	Seal	QUANTITY OF 37 OR 39 (PACKAGE OF 2)
39	T151270	1	Plug	(ALSO ORDER T149248) QUANTITY IS 37 OR 39
39	T149248	1	Plug	QUANTITY IS 37 OR 39 (INSERT IN THE MIDDLE OF PLUG T151270)
40	T112252	1	Washer	QUANTITY IS 74 OR 78
44	AT124014	1	SEAL KIT	(37L) (CONTAINS 72 SEALS, ALSO ORDER (1) AT113118, PACKED 2 PER PACKAGE)
44	AT124014	1	SEAL KIT	(39L) (CONTAINS 72 SEALS, ALSO ORDER (4) AT113118, PACKED 2 PER PACKAGE)
47	AT113119	1	PLUG AND SEAL KIT BUSHING	(FOR BUSHING O.D.OF 51 MM) (37L) CONTAINS 72 SEALS, 36 BUSHING AND 36 PLUGS, ALSO ORDER (1) T112245, (1) T151270, (1) T149248 AND (1) AT113118, PACKED 2 PER PACKAGE
47	AT113119	1	PLUG AND SEAL KIT BUSHING	(FOR BUSHING O.D.OF 51 MM) (39L) CONTAINS 72 SEALS, 36 BUSHING AND 36 PLUGS, ALSO ORDER (3) T112245, (3) T151270, (3) T149248 AND (3) AT113118, PACKED 2 PER PACKAGE
51	T112404	1	SINGLE BAR SHOE	406MM (16") (QUANTITY IS 37 OR 39)
51	T112405	1	SINGLE BAR SHOE	457MM (18") (QUANTITY IS 37 OR 39) (USE WITH WT ONLY)
51	T112406	1	SINGLE BAR SHOE	610MM (24") (QUANTITY IS 37 OR 39) (USE WITH WIDE TRACK)
61	T112400	1	OPEN CENTER 1 BAR SHOE	406MM (16") (QUANTITY IS 37 OR 39)
63	T75588	1	OPEN CENTER 3 BAR SHOE	355MM (14") (QUANTITY IS 37 OR 39)
77	-	1	Part 27	330MM (13") ( AT125940 NO LONGER AVAILABLE, ORDER DIRECTLY FROM SUPERIOR TIRE AND RUBBER, WARREN, PENNSYLVANIA 16365 PHONE 800-289-1456) (QUANTITY IS 37 OR 39)

REPLACEMENT FOR LUBRICATED CHAIN 1/2", WITH NON-STRUTTED LINKS STD (36L) AND LT (39L) [01B13]
