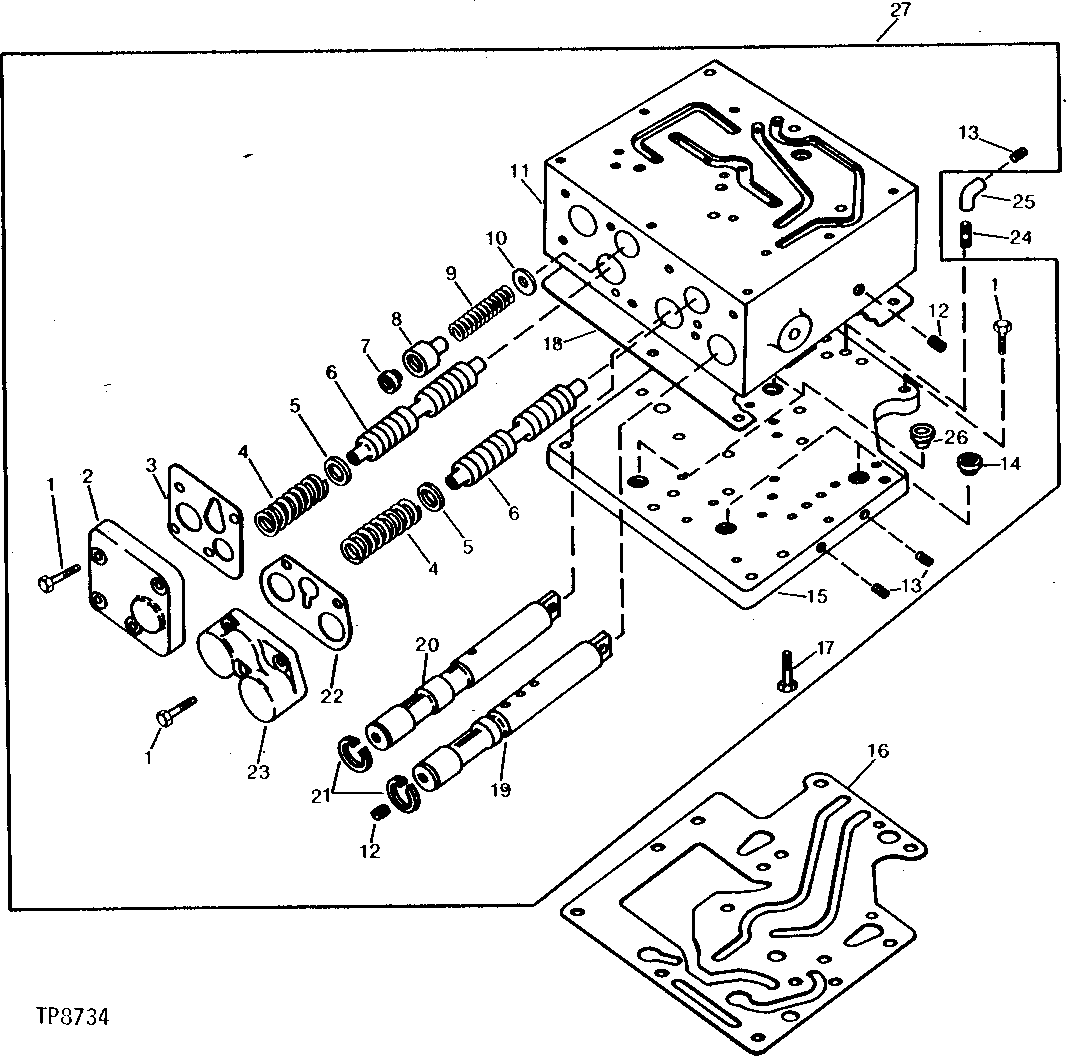

TRANSMISSION SELECTOR VALVE (SANDWICH PLATE, SPOOLS, MODULATING AND SELECTOR COVERS) [01D05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3239	10	Cap Screw	3/8" X 1-1/4"
2	T44855	1	COVER	MODULATING VALVE
3	T44861	1	GASKET	-
4	T44879	2	COMPRESSION SPRING	-
5	T44884	2	Washer	-
6	T44873	2	SPOOL	FIRST, SECOND, AND DIRECTIONAL SEQUENCE
7	AT52233	1	ORIFICE	-
8	T44862	1	STOP	THIRD SEQUENCE SPOOL
9	T44880	1	Compression Spring	-
10	T44883	1	WASHER	-
11	-	1	Part 11	(SUB AT57619)
12	15H558	2	Pipe Plug	1/8"
13	15H638	3	Pipe Plug	1/8"
14	AT43739	2	ORIFICE	FIRST, SECOND AND DIRECTION SEQUENCE SPOOLS
15	T44868	1	PLATE	SANDWICH
16	T44912	1	GASKET	-
17	19H3053	3	Screw	5/16" X 1"
18	T70140	1	GASKET	-
19	T44871	1	SPOOL	RANGE
20	T44872	1	SPOOL	DIRECTIONAL
21	T44869	2	SNAP RING	RETAINING
22	T44858	1	GASKET	-
23	T44852	1	COVER	SELECTOR SPOOL
24	29H25	2	Threaded Nipple	1/8" X 3"
25	15H155	2	ELBOW FITTING	1/8", 45°
26	AT43740	2	ORIFICE	RATE AND RISE
27	AT57619	1	VALVE	(ALSO INCLUDES ALL PARTS IN BOX ON FOLLOWING PAGE)

TRANSMISSION SELECTOR VALVE (SANDWICH PLATE, SPOOLS, MODULATING AND SELECTOR COVERS) [01D05]
