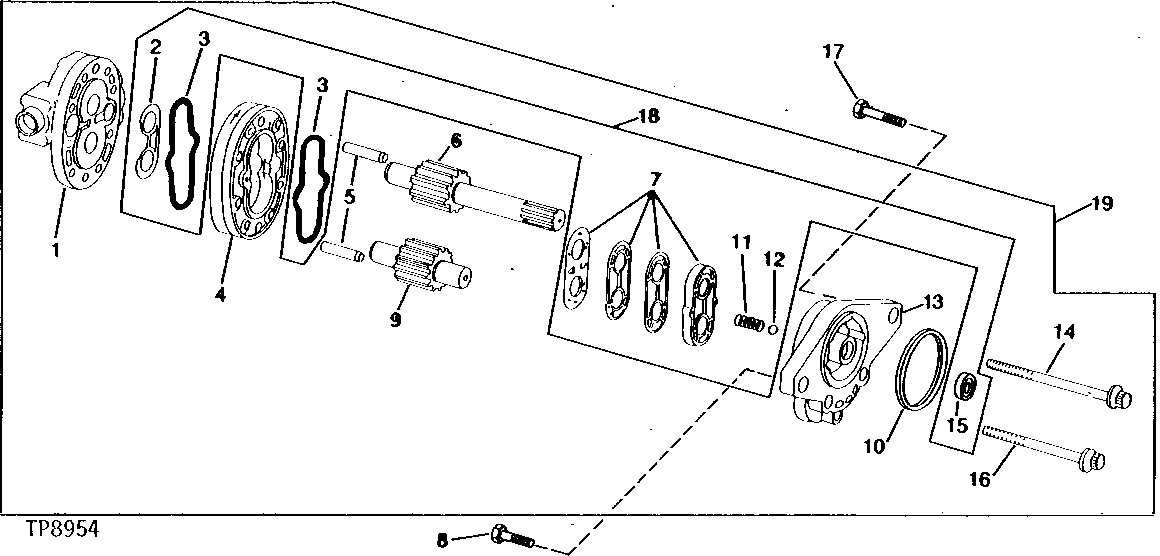

HYDRAULIC DOZER PUMP (64 L/MIN (17 GPM) AND 87 L/MIN (23 GPM)) [02E02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	BACK, WITH BACKING ( AT45374 USE IF AVAILABLE)
2	-	1	Part 2	THRUST BACK ( T32081 NO LONGER AVAILABLE)
3	T40419	2	PACKING	-
4	-	1	Part 4	(USE WITH 87 L/MIN (23 GPM) PUMP) ( T40417 NO LONGER AVAILABLE)
4	-	1	Part 5	(USE WITH 57 L/MIN (15 GPM) PUMP) ( T46716 USE IF AVAILABLE)
5	-	2	Part 6	(USE WITH 87 L/MIN (23 GPM) PUMP) ( U17301 NO LONGER AVAILABLE)
5	T46717	2	DOWEL PIN	(USE WITH 57 L/MIN (15 GPM) PUMP)
6	-	1	Part 8	(USE WITH 87 L/MIN (23 GPM) PUMP) ( AT31209 USE IF AVAILABLE)
6	-	1	Part 9	(USE WITH 57 L/MIN (15 GPM) PUMP) ( AT45375 USE IF AVAILABLE)
7	-	1	Part 10	(SUB AT39028)
8	19H2993	1	Cap Screw	1/2" X 1-1/2"
9	-	1	Part 13	(USE WITH 57 L/MIN (15 GPM) PUMP) ( AT45376 USE IF AVAILABLE)
9	-	1	Part 12	(USE WITH 87 L/MIN (23 GPM) PUMP) ( AT31210 USE IF AVAILABLE)
10	R34317	1	PACKING	-
11	-	1	Part 15	CHECK ( U11744 NO LONGER AVAVILABLE)
12	-	1	Part 16	( U11747 NO LONGER AVAILABLE)
13	-	1	Part 17	FRONT, WITH BUSHING ( AT52687 USE IF AVAILABLE)
14	-	4	Part 18	(USE WITH 87 L/MIN (23 GPM) PUMP) ( H29856 NO LONGER AVAILABLE)
14	19H3622	4	SCREW	3/8" X 2-3/4", (SUB FOR T46718) (USE WITH 57 L/MIN (15 GPM) PUMP)
15	AT59652	1	SEAL	(SUB FOR U13281)
16	-	4	Part 21	( U13342 NO LONGER AVAILABLE)
17	19H2473	1	Cap Screw	1/2" X 1-3/4"
18	AT39028	1	SEAL KIT	-
19	AT41450	1	PUMP	87 L/MIN (23 GPM)
19	AT41449	1	PUMP	(57 L/MIN (15 GPM)

HYDRAULIC DOZER PUMP (64 L/MIN (17 GPM) AND 87 L/MIN (23 GPM)) [02E02]
