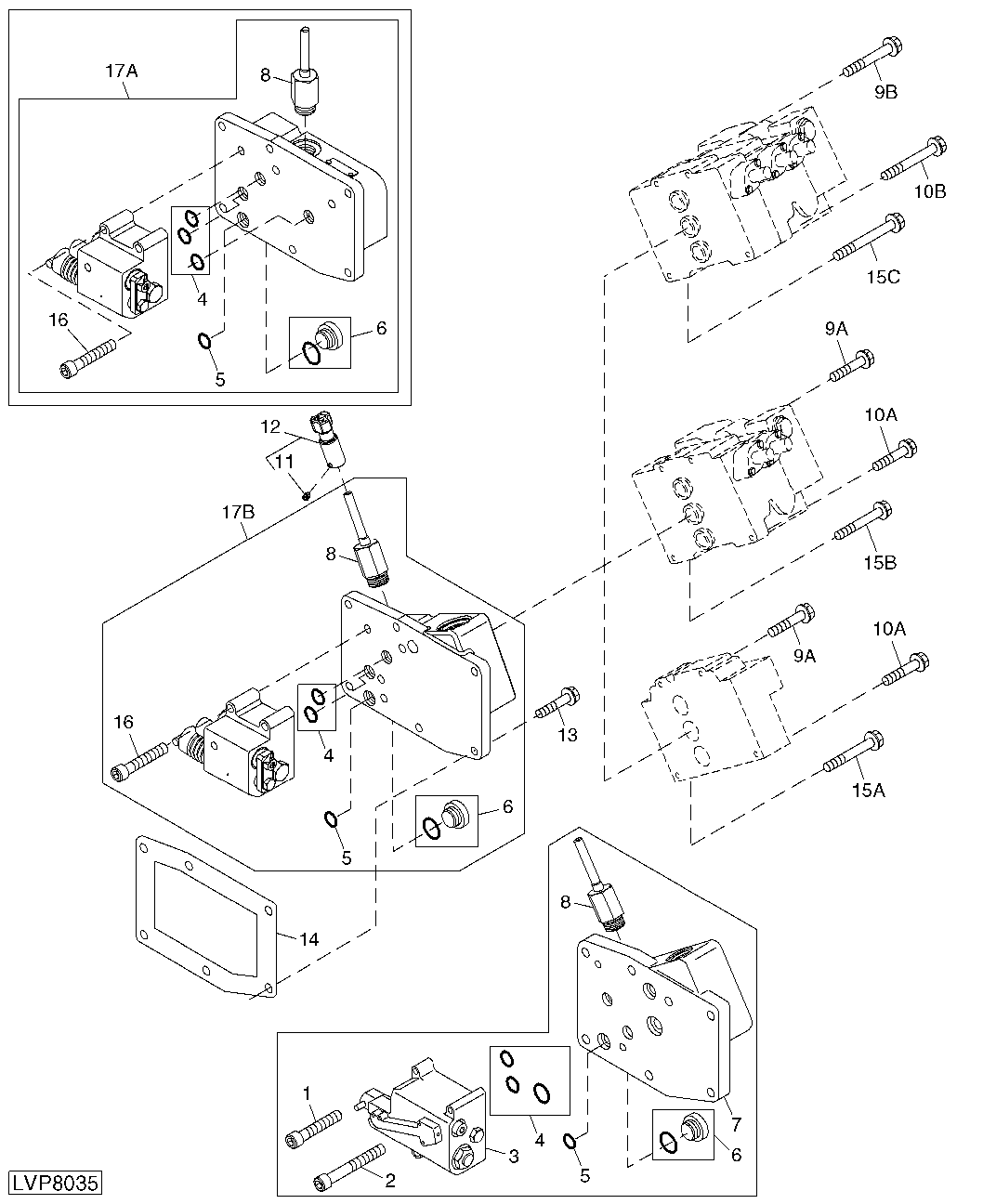

ROCKSHAFT CONTROL VALVE (ORIGINAL EQUIPMENT)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R113838	1	Cap Screw	(USE WITH RE72865)
2	R113837	2	Cap Screw	(USE WITH RE72865)
3	RE72865	1	Control Valve	(SUB FOR RE56498)
4	RE45959	1	Seal Kit	-
5	T77857	1	O-Ring	-
6	RE45958	1	Plug	-
7	R140682	1	Housing	NLA (SUB FOR R105219 ) (USE WITH RE72865 ) (ORDER RE248367)
8	RE42481	1	Valve	-
11	22M7083	1	Set Screw	M6 X 12
12	RE73337	1	Knob	(SUB FOR RE58886, THIS APPLICATION)
13	19M7867	6	Screw	M8 X 25
14	PM38657	1	Sealant	50 ML, (SUB FOR TY16021)
16	M1035T	3	Screw	(USE WITH RE199473 OR RE248367)
9A	19H2650	2	Cap Screw	(WITHOUT SCV) (WITH DUAL SCV) 1/4" X 2"
9B	19H3686	2	Cap Screw	(WITH TRIPLE SCV) 1/4" X 3-1/2"
10A	19H2474	1	Cap Screw	(WITHOUT SCV) (WITH DUAL SCV) 1/4" X 1-1/2"
10B	19H2851	1	Cap Screw	(WITH TRIPLE SCV) 1/4" X 3"
15A	19H2474	1	Cap Screw	(WITHOUT SCV) 1/4" X 1-1/2"
15B	19H3754	1	Cap Screw	(WITH DUAL SCV) 1/4" X 3-1/4"
15C	19H3755	1	Cap Screw	(WITH TRIPLE SCV) 1/4" X 4-3/4"
17A	RE199473	1	Hitch Valve Overhaul Kit	(SUB RE248367)
17B	RE248367	1	Control Valve	-

ROCKSHAFT CONTROL VALVE (ORIGINAL EQUIPMENT)
