POWER BEYOND MOTOR CONTROL KIT (WITH CAB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

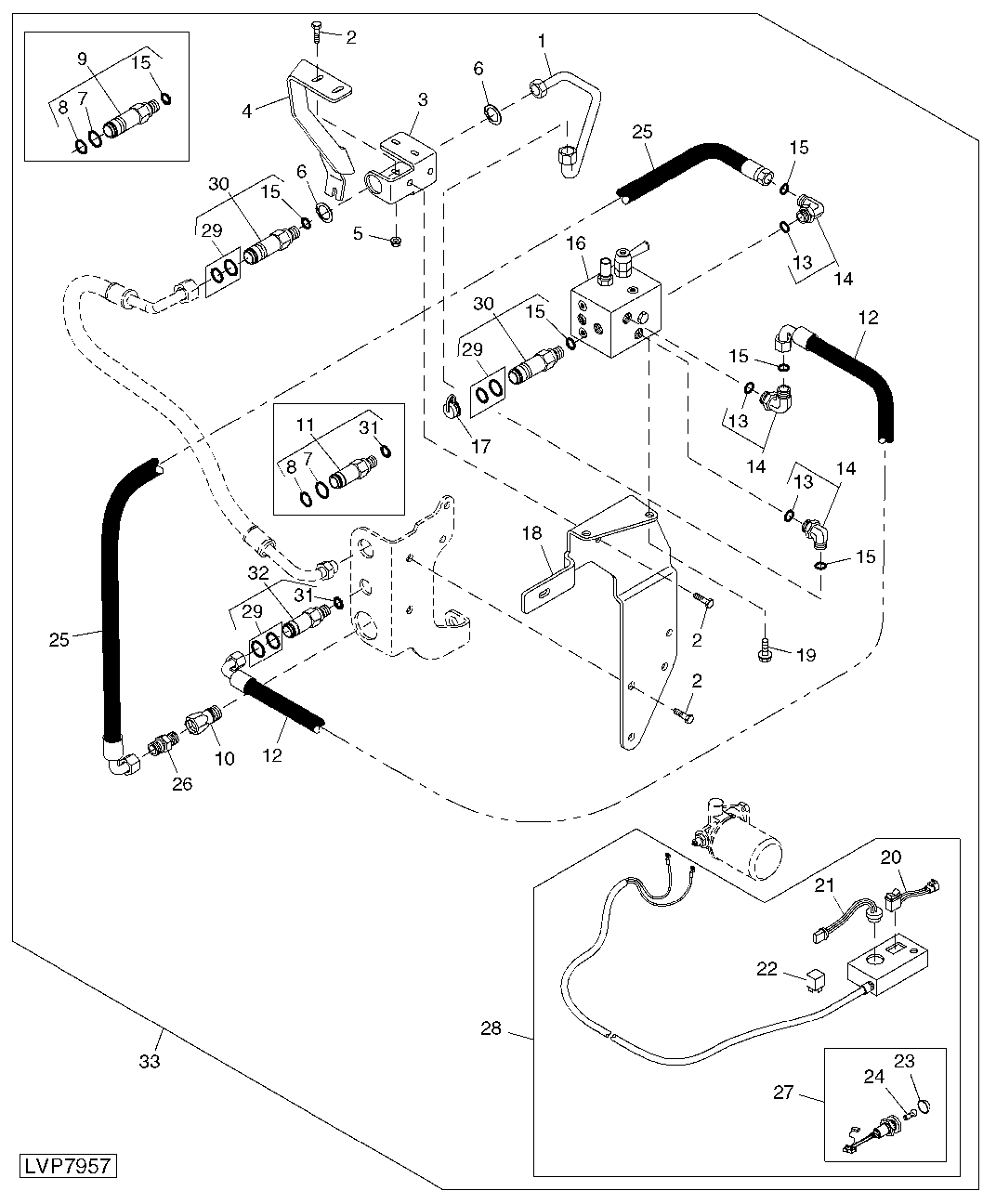

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE188368	1	Oil Tube	(A)
2	19M7866	4	Screw	(A) M8 X 20
3	RE187738	1	Bracket	(A) HS 10.9
4	R189107	1	Bracket	COUPLER SUPPORT
5	14M7298	2	Flange Nut	(A) M8
6	R120797	2	Snap Ring	(A)
7	U45858	4	Back-Up Ring	(A)
8	P47889	4	O-Ring	(A)
9	RE161000	3	Hyd. Quick-Connect Coupler	(A) FEMALE, LONG (SUB RE219422)
10	AR94522	1	Hydr. Quick Coupler Plug	(A) MALE
11	RE72811	1	Quick Coupler	(A) FEMALE, SHORT (SUB RE219420)
12	RE207183	1	Hydraulic Hose	(A)
13	T77932	3	O-Ring	(A)
14	38H5018	3	Elbow Fitting	(A)
15	51M7045	6	O-Ring	(A) 19.300 X 2.200 mm
16	RE71787	1	Valve	(A) SEE SEPARATE ASSY
17	W42417	2	Plug	(A) BLACK
18	R187652	1	Bracket	VALVE SUPPORT
19	19M7784	2	Screw	(A) M10 X 20
20	RE72671	1	Switch	(A)
21	RE49727	1	Horn	(A)
22	LVA13729	1	Relay	(A) (SUB FOR RE68327, THIS APPLICATION)
23	R132486	1	Lens	(A)
24	R132094	1	Bulb	(A)
25	RE207182	1	Hydraulic Hose	(A)
26	-	1	Part 26	(A)
27	RE72672	1	Indicator Lamp	(A)
28	-	1	Part 28	(A) NSEP (ORDER LVB25186)
29	RE186599	4	Seal	(A)
30	RE219422	3	Hyd. Quick-Connect Coupler	(A)
31	T77857	1	O-Ring	(A)
32	RE219420	1	Hyd. Quick-Connect Coupler	(A)
33	LVB25186	1	Kit	COMPLETE GOODS (INCL ITEMS MARKED (A)) (INCL TEMPERATURE SWITCH) (USE WITH LVB25368)

POWER BEYOND MOTOR CONTROL KIT (WITH CAB)
