Открытый узел

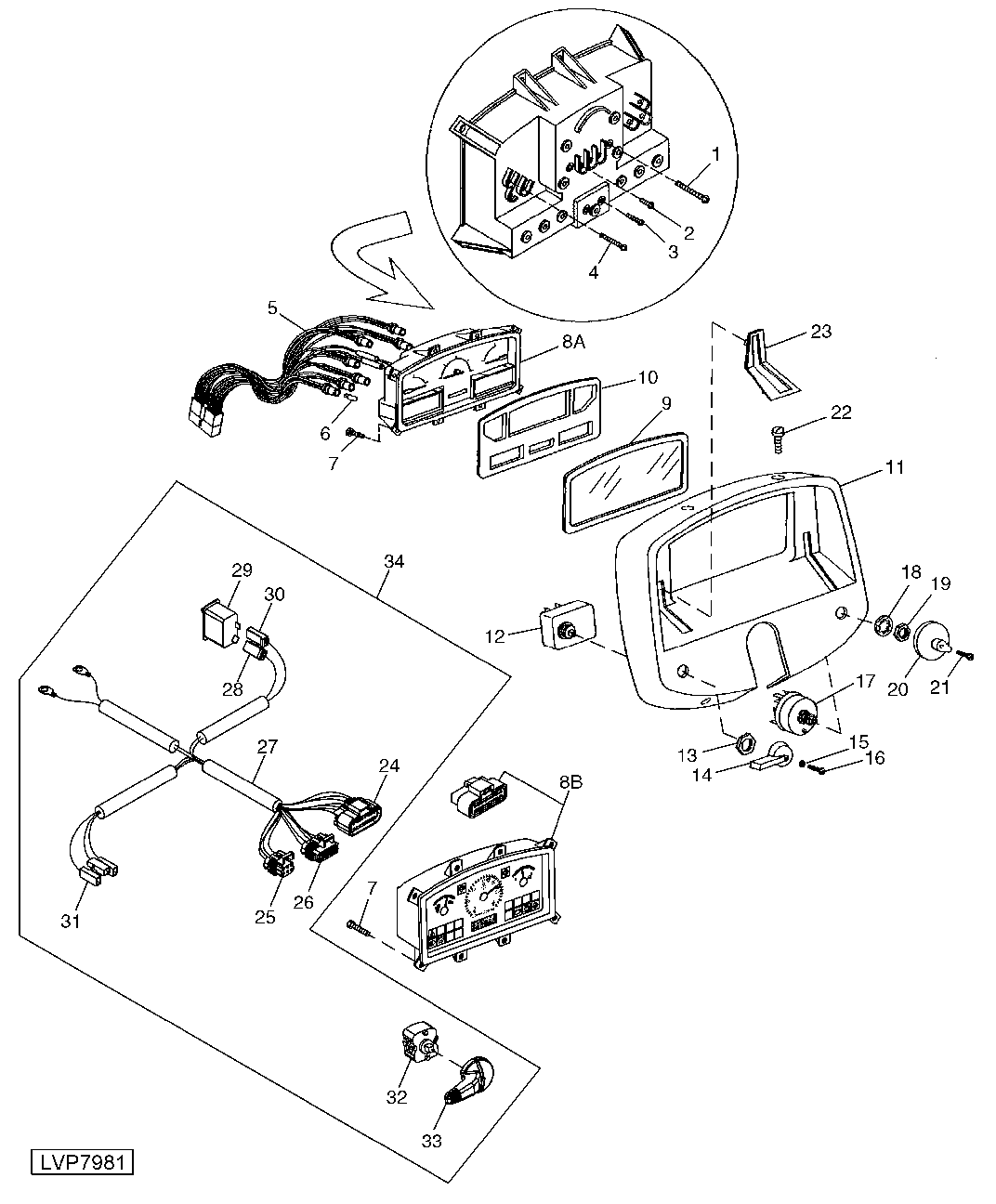

Instrument Panel (North American Version)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21M7355	2	Screw	(F) M4 X 35
2	21M7394	3	Screw	(F) M3 X 10
3	21M7393	2	Screw	(F) M3 X 8
4	21M7256	6	Screw	(F) M3 X 20
5	RE58953	1	Wiring Harness	(F)
6	RE45875	10	Bulb	(F)
7	37M7181	8	Screw	(F)
9	RE45865	1	Cover	(F) (W/GASKET)
10	RE45866	1	Reflector	(F)
11	R121927	1	Instrument Panel	(F) (MAKE FROM R122869)
12	AR64422	1	Turn Signal Controller	(Turn signal)
13	R56410	1	Nut	-
14	R56026	1	Knob	-
15	12H233	1	Lock Washer	1/8"
16	21H1372	1	Screw	1/8" X 3/8"
17	AL65432	1	Toggle/Rocker Switch	(Lights)
18	12H292	1	Lock Washer	1/2"
19	A4655R	1	Nut	-
20	R122871	1	Knob	-
21	21H973	1	Screw	0.164" X 3/8"
22	21M7246	2	Screw	M6 X 16
23	R122860	1	Insert	-
24	-	1	Part 26	(For Programming Purposes Only) (INSTRUMENT CLUSTER (NSEP) (ORDER LVB24863)
25	-	1	Part 27	(For Programming Purposes Only) (INSTRUMENT CLUSTER (NSEP) (ORDER LVB24863)
26	-	1	Part 28	(For Programming Purposes Only) (INSTRUMENT CLUSTER (NSEP) (ORDER LVB24863)
27	-	1	Part 29	(For Programming Purposes Only) (NSEP) (ORDER LVB24863)
28	-	1	Part 30	(For Programming Purposes Only) (SWITCH POWER ROCKER (NSEP) (ORDER LVB24863)
29	RE61259	1	Toggle/Rocker Switch	(For Programming Purposes Only)
30	-	1	Part 32	(For Programming Purposes Only) (TURN SIGNAL SWITCH (NSEP) (ORDER LVB24863)
31	57M7183	1	Elec. Connector Accessory	-
32	AL35179	1	Switch	(For Programming Purposes Only)
33	R140843	1	Knob	(For Programming Purposes Only)
34	LVB24863	1	Field Installation Kit	(For Programming Purposes Only) (COMPLETE GOODS)
..	RE57801	1	Instrument Panel	ASSY (INCL. KEYS MARKED (F)) (MAKE FROM RE62201)
8A	RE62203	1	Instrument Cluster	(W/O Cab) (F) (USE WITH RE58667 OR RE61326)
8A	RE62203	1	Instrument Cluster	(W/ Cab) (F)
8B	RE232258	1	Instrument Cluster	(W/O Cab) (ALSO INCLUDES CONNECTOR) (USE WITH RE72203 ) (ALSO ORDER LVB24863)

Instrument Panel (North American Version)
