Открытый узел

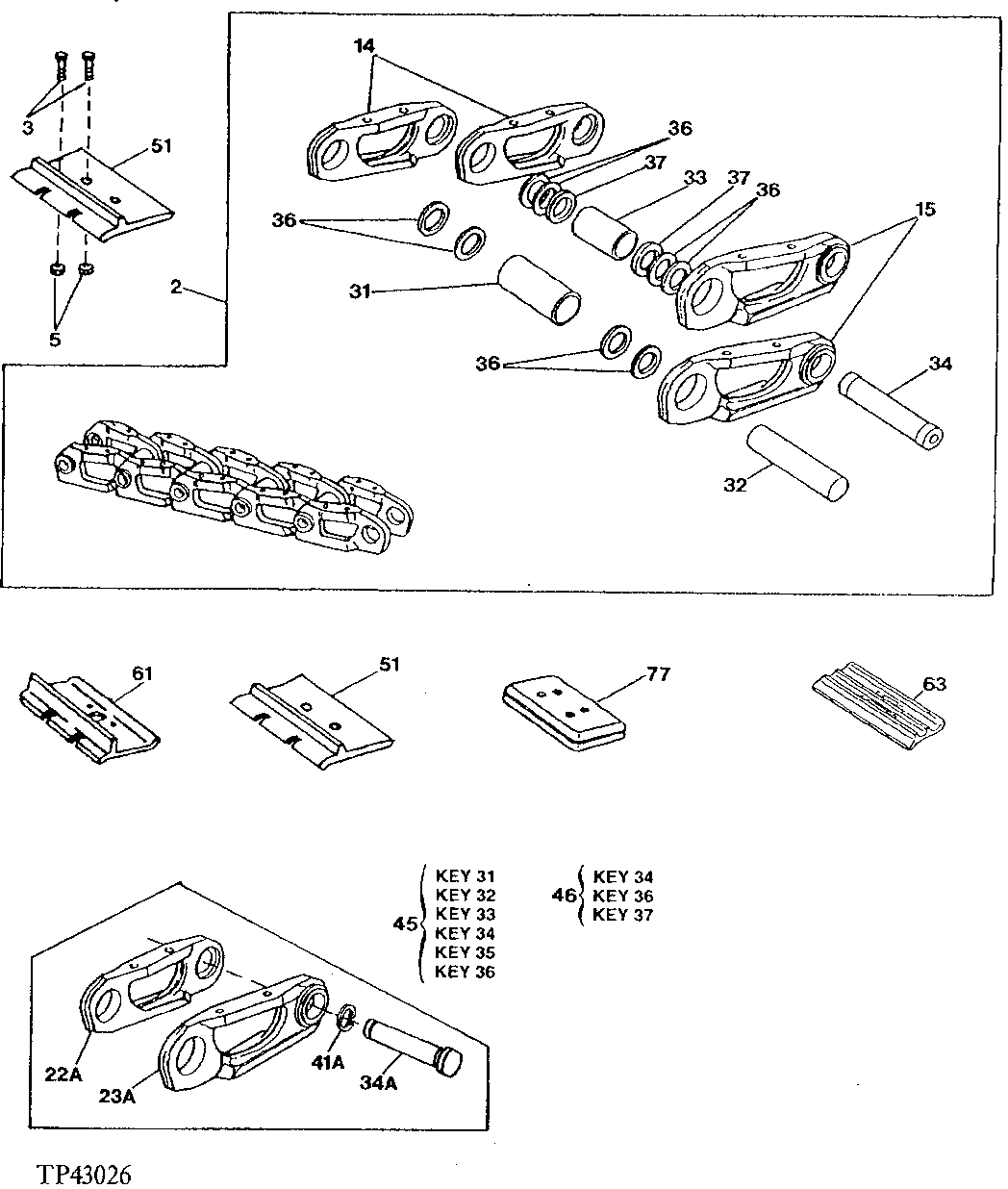

SEALED CHAIN, 1/2" WITH MASTER PIN AND NON-STRUTTED LINKS (36L) [01B12]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	(N/A, ORDER 9/16" CHAIN WITH SHOES)
2	-	1	Part 2	(36L) (SEE SEC. 0132, PAGE 5, FOR 1/2" REPLACEMENT CHAIN WITHOUT SHOES)
3	T130032	144	BOLT	1/2" X 1.654", (USE WITH T129173, NUT) (SUB FOR T40535)
3	19H3012	144	Cap Screw	1/2" X 2-3/8", (USE WITH RUBBER SHOE)
5	T129173	144	NUT	1/2", (USE WITH T130032, SCREW) (SUB FOR T14913)
14	T42827	35	NON-STRUTTED LINK-LH	-
14	T42827	36	NON-STRUTTED LINK-LH	-
15	T42832	35	NON-STRUTTED LINK-RH	-
15	T42832	36	NON-STRUTTED LINK-RH	-
31	T52362	35	BUSHING	(SUB FOR T42836)
32	T42838	35	TRACK PIN	-
33	T42837	1	MASTER TRACK BUSHING	(CAN BE USED FOR LINK OR BUSHING REPLACEMENT IN CENTER OF CHAIN)
34	-	1	Part 15	(SUB AT56694 MASTER PIN KIT)
36	T42828	144	SPRING WASHER	-
37	T60841	2	WASHER	(CAN BE USED FOR LINK OR BUSHING REPLACEMENT IN CENTER OF CHAIN) (SUB FOR T49874)
45	AT56690	1	PIN & BUSHING KIT	(INCLUDES (144) T42828, T42837, (35) T52362, (35) T42838, T53665 AND (2) T60841) (SUB FOR AT56692)
46	AT56694	1	PIN, SEAL & BUSHING KIT	(INCLUDES (4) T42828, T53665 AND (2) T60841)
46	AT58897	1	PIN, SEAL & BUSHING KIT	(OVERSIZE MASTER PIN) (SUB (4) T42828, (2) T60841 AND T61368)
51	T112404	36	SINGLE BAR SHOE	406MM (16")
51	T112405	36	SINGLE BAR SHOE	457MM (18")
61	T112400	36	OPEN CENTER 1 BAR SHOE	406MM (16") (SUB FOR T75591)
61	T112401	36	OPEN CENTER 1 BAR SHOE	457MM (18") (SUB FOR T75592)
63	T24699	36	OPEN CENTER 3 BAR SHOE	406MM (16") - NLA
77	-	36	Part 29	330MM (13"), AT125940 NO LONGER AVAILABLE, ORDER DIRECTLY FROM SUPERIOR TIRE AND RUBBER, WARREN, PENNSYLVANIA 16365, PHONE 800-289-1456, (SUB FOR AT22880)
22A	T42829	1	NON-STRUTTED LINK-LH	-
23A	T42831	1	MASTER TRACK LINK-RH	-
34A	T42833	1	PIN FASTENER	HEADED MASTER, (SUB T55237)
34A	T55237	1	MASTER TRACK PIN	HEADED
41A	B1402R	1	SNAP RING	(SUB F215R)

SEALED CHAIN, 1/2" WITH MASTER PIN AND NON-STRUTTED LINKS (36L) [01B12]
