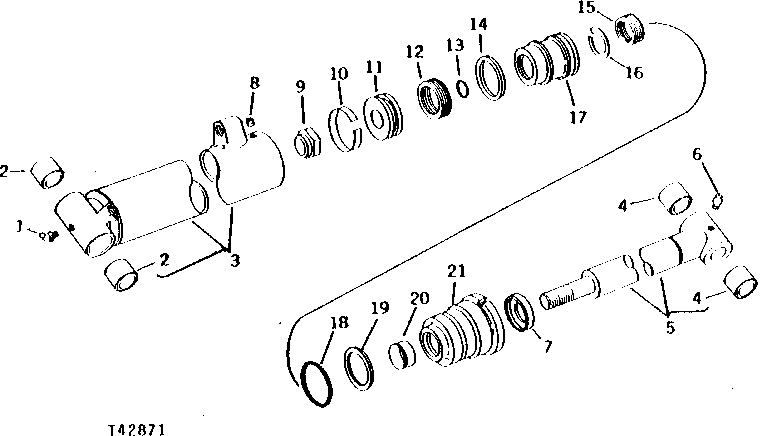

CROWD CYLINDER (9300 BACKHOE) (SERIAL NO. - ) [02I03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7788	1	Lubrication Fitting	45°, 1/4"
2	U10745	2	BUSHING	-
3	AT45783	1	HYDRAULIC CYLINDER BARREL	WITH BUSHINGS
4	U11121	2	BUSHING	-
5	AT32767	1	HYDRAULIC CYLINDER ROD	PISTON, WITH BUSHING
6	JD7759	1	Lubrication Fitting	STRAIGHT, 1/8"
7	L2029CU	1	SEAL	(A) WIPER
8	22H842	1	SET SCREW	1/4" X 5/16"
9	L2235CU	1	LOCK NUT	-
10	U17337	1	WEAR RING	(A)
11	U44578	1	PISTON	-
12	T37381	1	PACKING	(A) (SUB FOR R72830)
13	R29463	1	O-Ring	(A)
14	U44491	1	PISTON RING	SEAL BRAKE
15	R76801	1	PACKING	(A) (SUB FOR T35850)
16	N10193	1	SNAP RING	-
17	T33641	1	PISTON	-
18	L2301CU	1	O-Ring	(A)
18	A5598R	1	O-Ring	(A)
19	L2309CU	1	BACK-UP RING	(A)
19	R79122	1	Back-Up Ring	(A) (SUB FOR T42032, THIS APPLICATION)
20	U41578	1	WEAR RING	(A)
21	U43233	1	TUBE	(ALSO ORDER U41578) (SUB A5598R, R79122 AND R80937)
21	R80937	1	HYDR. CYLINDER ROD GUIDE	ROD, (SUB FOR T57011)
..	AT45782	1	HYDRAULIC CYLINDER	CROWD, COMPLETE, (SUB RE12721)
..	AR105387	1	HYDRAULIC CYLINDER KIT	(SUB FOR AT52710 AND AR96530)
