Открытый узел

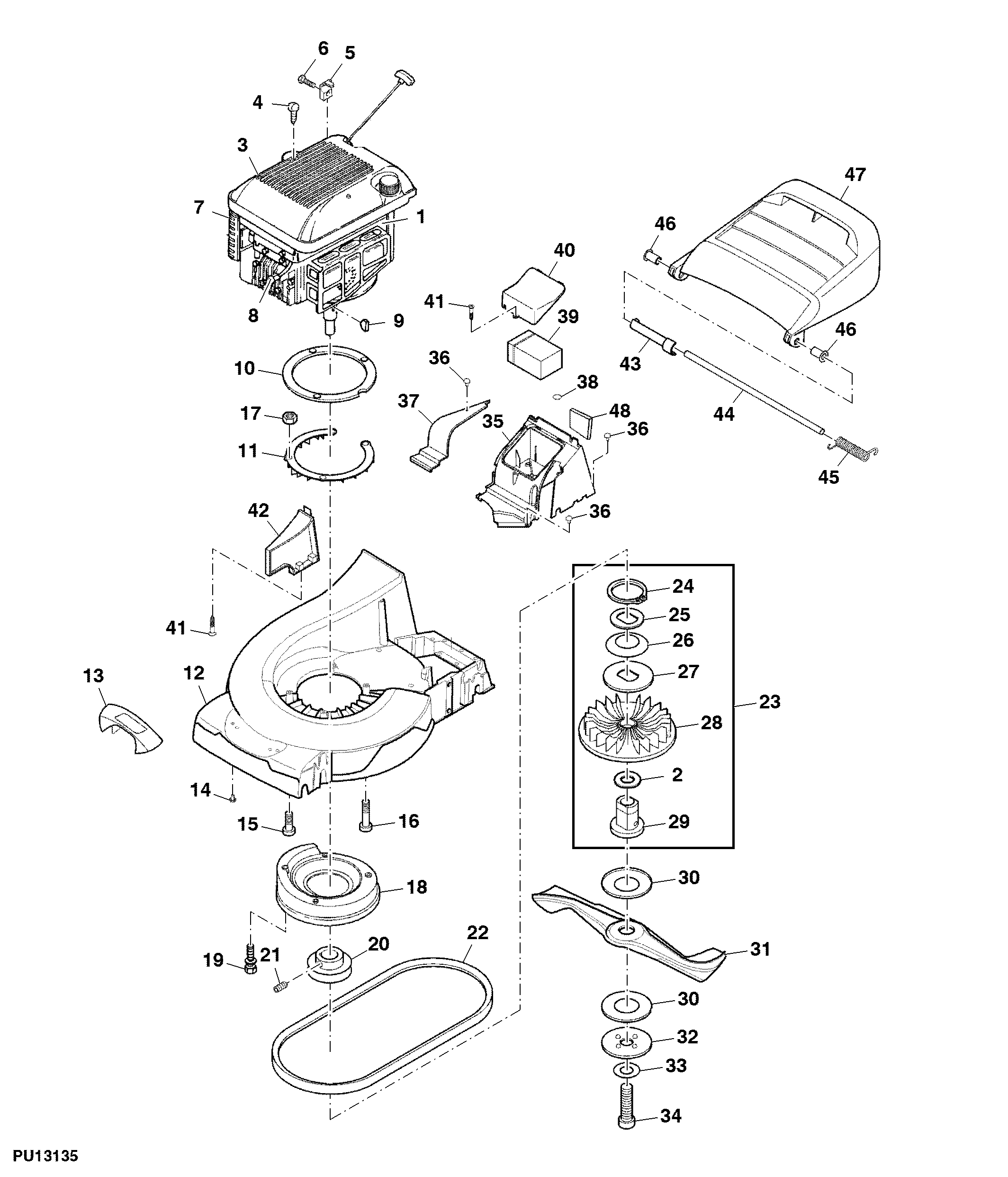

Housing, Engine / Fan / Mower Deck / Discharge / Battery

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SAU11377	1	Gasoline Engine	B AND S, 650 Quantum, Model 124T07, Type 0302B1
1	SAU11011	1	Gasoline Engine	B AND S, 650 Quantum, Model 124T07, Type 4178B1
1	SAA10706	1	Gasoline Engine	B AND S, 650 Quantum, Model 124T07, Type 6302H1
1	SAA10706	1	Gasoline Engine	B AND S, 650 Quantum, Model 124T07, Type 3302B1
2	SAU10810	1	Spacer	-
2	SAU10793	1	Spacer	-
3	SA33223	1	Hood	-
4	SA16268	2	Bolt	-
5	LG690798	1	Clamp	SUB FOR SA26799
6	SA26798	1	Bolt	-
7	LG491588JD	1	Air Filter	SUB FOR SA26547
8	TY6129	1	Spark Plug	SUB FOR SA16815
9	SA15967	2	Shaft Key	4 X 6.5
10	SA36239	1	Ring	-
11	SAU10482	1	Guard	-
12	SAA11340	1	Housing	SUB FOR SAA10394
13	SAA10042	1	Grip	INCLUDES SA37461
14	SA35503	2	Screw	CM 60 X 20, Duo Taptite
15	SA15572	2	Screw	M8 X 45
16	SA30647	1	Screw	M8 X 75
17	14M7327	3	Lock Nut	M8, SUB FOR SA11998
18	SAA14920	1	Air Plenum	SUB FOR SA36683
19	SA29854	4	Bolt	M5 X 12
20	SAU10541	1	Pulley	-
20	SAU11561	1	Pulley	-
21	SA15776	1	Set Screw	M6 X 16
22	SAU11158	1	V-Belt	SUB FOR SAU10552
22	SAU11644	1	V-Belt	-
23	SAU12804	1	Fan	ASSY
23	SAU10542	1	Fan	ASSY
23	SAU10795	1	Fan	ASSY
24	SA15746	1	Snap Ring	35 X 1.5
25	SAU10749	1	Washer	-
25	SAU10749	2	Washer	-
26	SAU10751	1	Disk Spring	-
27	SAU10750	1	Washer	-
28	SAU10607	1	Fan	-
29	SAU10543	1	Flange	-
29	SAU10796	1	Flange	-
29	SAU12780	1	Flange	-
30	SA35386	2	Lining	-
31	SAU10546	1	Knife	-
31	SAA10544	1	Knife	-
32	SA35385	1	Disk	-
33	SA34499	1	Disk	-
34	SA17490	1	Bolt	UNF 3/8 X 63.5
35	SAU10480	1	Cover	ORDER SA37010 AND SA36682
36	SA34452	4	Screw	6.0 X 14, Duo Taptite
37	SA36570	1	Cover	-
38	SA36682	4	Vibration Dampener	-
39	SAA35583	1	Nonspillable Battery	-
40	SA36481	1	Cover	-
41	SA34487	3	Bolt	K 60 X 14
42	SA36476	1	Shield	-
43	SA36662	1	Orifice	-
44	SA36512	1	Axle	-
45	SA36572	1	Torsion Spring	-
46	SA36569	2	Bearing	-
47	SA36516	1	Grass Deflector	-
48	SA37010	2	Vibration Dampener	-
49	SA609	1	Grass Mulching Attachment	(Not Illustrated)

Housing, Engine / Fan / Mower Deck / Discharge / Battery
