Drive, Cutting Height Adjustment and Wheels

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SAA10229	1	Control Lever	INCLUDES SAU10747, SA36697, (2) SA15207 AND SA15694; ASSY
2	SAU10747	1	Sector	ORDER SAA10229
3	SA11244	2	Lock Nut	M6
4	SA15324	2	Cap Screw	M6 X 25
5	M112486	2	Washer	-
6	SA34452	3	Screw	6.0 X 14
7	SA15365	1	Cap Screw	M8 X 35
8	SA11998	5	Lock Nut	M8
9	SA15694	1	Lock Nut	M10
10	SA15207	2	Washer	A15
11	SA36697	1	Pin Fastener	-
12	SA36479	1	Bracket	-
13	SAA11506	1	Adjuster	SUB FOR SAU10532
14	SA15202	1	Washer	6.4
15	SAU12254	1	Guard	(Before Installation, Cut Along Mark)
16	SAU10484	4	Bearing Cap	-
17	SAU10829	1	Drive Shaft	-
18	SAA14005	1	Transmission	(Order Drive Unit as Unit Only, Parts No Longer Supplied Separately)
19	SAU12827	2	Screw	6 X 16, Duo Taptite
20	SA33975	10	Screw	4.0 X 35.0 mm
21	SAU13506	2	Pinion	-
22	SA36659	4	Needle Bearing	HK 1616
23	SAA11112	2	Tire And Wheel Assembly	210 mm, INCLUDES (2) SA36659, SAU13506 AND (5) SA33975; Rear
24	SAA11282	1	Rear Axle	Rear
25	SA34285	1	Bearing	-
26	SAU13731	1	Push Pull Cable	-
27	SAU12585	2	Bushing	14 X 17 X 15.5
28	SAU10549	2	Guard	-
29	SA13926	1	Washer	-
30	SA15213	4	Washer	A8.4
31	SA34282	2	Push Nut	8
32	SA15864	2	Snap Ring	14 X 1 mm
33	SA13912	4	Disk	-
34	SAA37273	2	Pinion	-
35	SA13911	2	Spring Washer	-
36	SA34284	2	Driver	-
37	SA29854	4	Bolt	M5 X 12
38	SAU10536	4	Clamp	-
39	SA33229	4	Ball Bearing	-
40	SAU10830	2	Tire And Wheel Assembly	210 mm, Front
41	SA35229	2	Washer	-
42	SAU10567	1	Front Axle	Front
43	SAU10819	2	Holder	-
44	SA35588	3	Pin Fastener	-
45	SA35589	3	Clip	8S X N59
46	SAA10396	1	Tie Bar	-

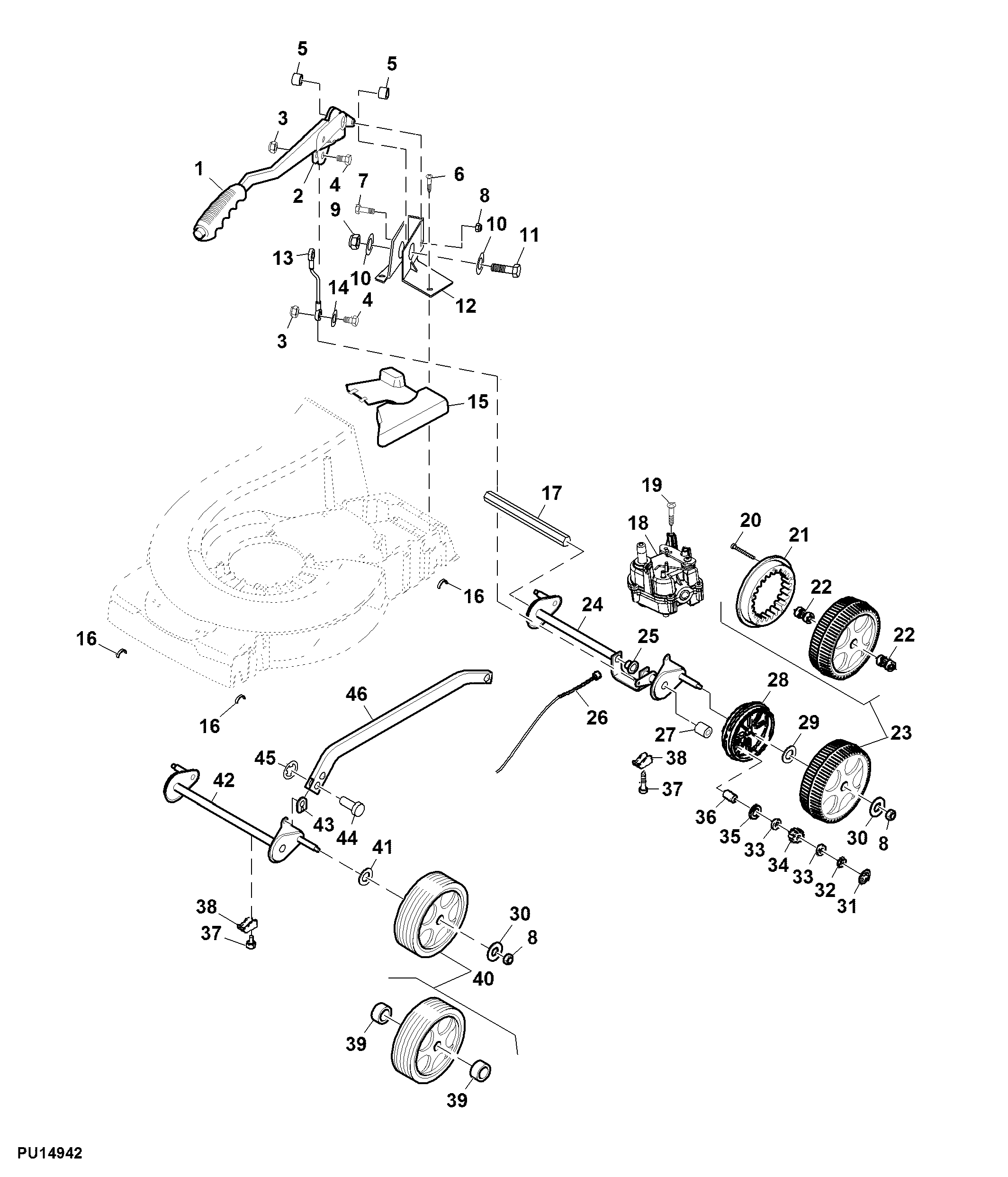

Drive, Cutting Height Adjustment and Wheels
