Открытый узел

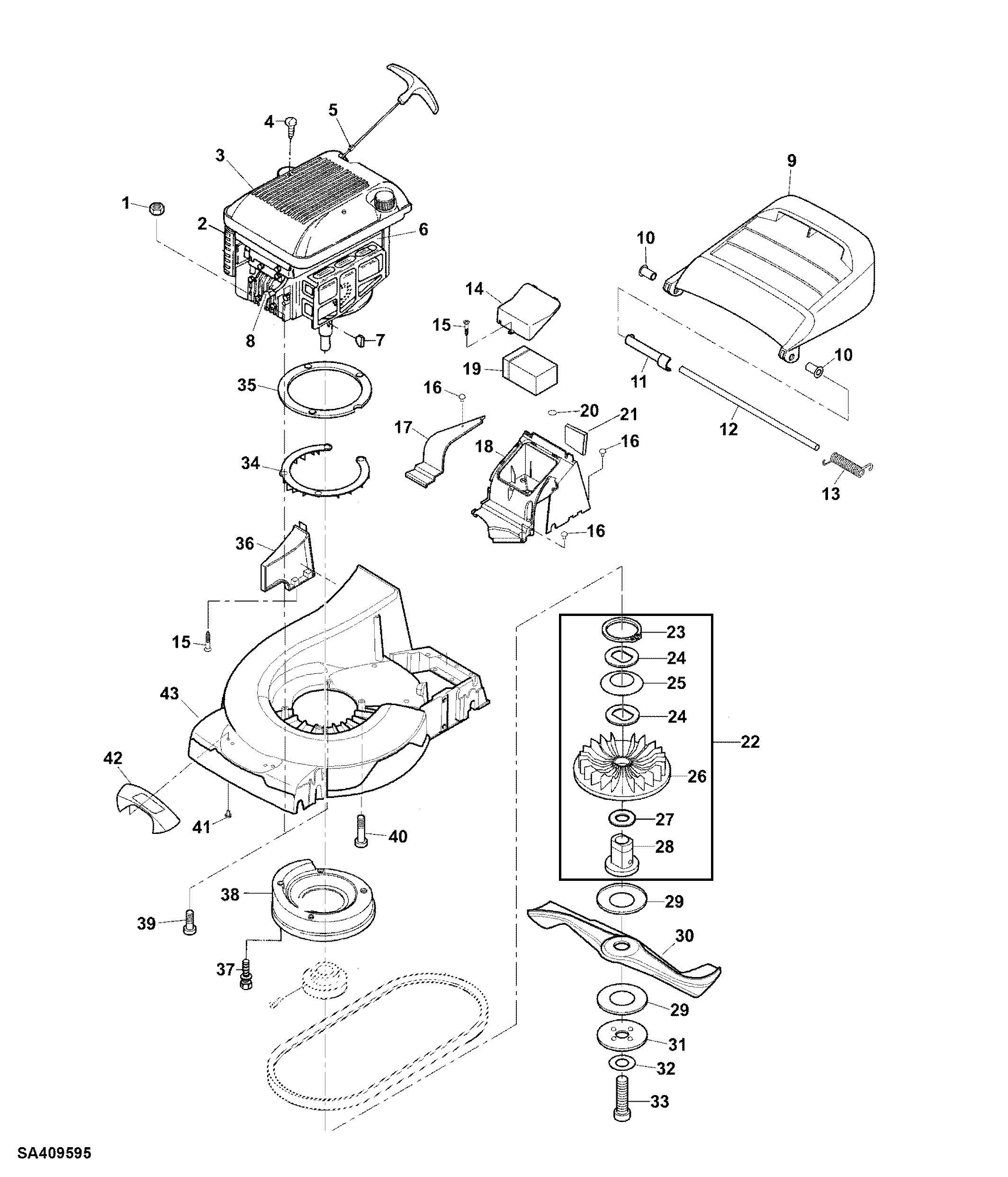

Engine / Mower Deck / Housing / Discharge / Battery

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7327	3	Lock Nut	M8, SUB FOR SA11998; Only Available as Packaged Sets
2	LG491588JD	1	Air Filter	SUB FOR SA26547
3	SA33223	1	Hood	-
4	SA16268	2	Bolt	4 X 32 mm, Only Available as Packaged Sets
5	SAU14027	1	Clamp	-
6	SAA10706	1	Gasoline Engine	MARKED 124T07 ; B and S, Quantum Type 6302H1
7	26M4224	2	Shaft Key	4 X 16 mm, SUB FOR SA15967; Only Available as Packaged Sets
8	TY6129	1	Spark Plug	SUB FOR SA16815; Only Available as Packaged Sets
9	SA36516	1	Grass Deflector	-
10	SA36569	2	Bearing	Only Available as Packaged Sets
11	SA36662	1	Orifice	Only Available as Packaged Sets
12	SA36512	1	Axle	-
13	SA36572	1	Torsion Spring	-
14	SAU16587	1	Cover	SUB FOR SA36481
15	SA34487	3	Bolt	K 6 X 14 mm, Only Available as Packaged Sets
16	SA34452	4	Screw	C M6 X 14, DUO TAPTITE; Only Available as Packaged Sets
17	SA36570	1	Cover	Only Available as Packaged Sets
18	SAU10480	1	Cover	ALSO ORDER (4) SA36682 AND (2) SA36682
19	SAA35583	1	Nonspillable Battery	-
20	SA36682	4	Vibration Dampener	Only Available as Packaged Sets
21	SA37010	2	Vibration Dampener	Only Available as Packaged Sets
22	SAA12553	1	Fan	SUB FOR SAU12804; ASSY
23	SA15746	1	Snap Ring	35 X 1.5 mm, Only Available as Packaged Sets
24	SAU10749	2	Washer	Only Available as Packaged Sets
25	SAU10751	2	Disk Spring	-
26	SAU10607	1	Fan	-
27	SAU10793	1	Spacer	-
28	SAU12780	1	Flange	-
29	SA35386	2	Lining	Only Available as Packaged Sets
30	SAA10544	1	Knife	-
31	SA35385	1	Disk	Only Available as Packaged Sets
32	SA34499	1	Disk	Only Available as Packaged Sets
33	SA17490	1	Bolt	UNF 3 / 8 X 63.5
34	SAU10482	1	Guard	-
35	SA36239	1	Ring	INCLUDES (3) SA35927
36	SA36476	1	Shield	-
37	SA29854	4	Bolt	M5 X 12, Only Available as Packaged Sets
38	SAA15773	1	Air Plenum	-
39	19M10418	2	Socket Head Screw	M8 X 45, SUB FOR SA15572; Only Available as Packaged Sets
40	SA30647	1	Screw	M8 X 75, Only Available as Packaged Sets
41	SA37392	2	Screw	6 X 30 mm, Only Available as Packaged Sets
42	SAA10042	1	Grip	INCLUDES (2) SA37392, SA37461
43	SAA11340	1	Housing	-
44	SA609	1	Grass Mulching Attachment	(Not Illustrated)

Engine / Mower Deck / Housing / Discharge / Battery
