Открытый узел

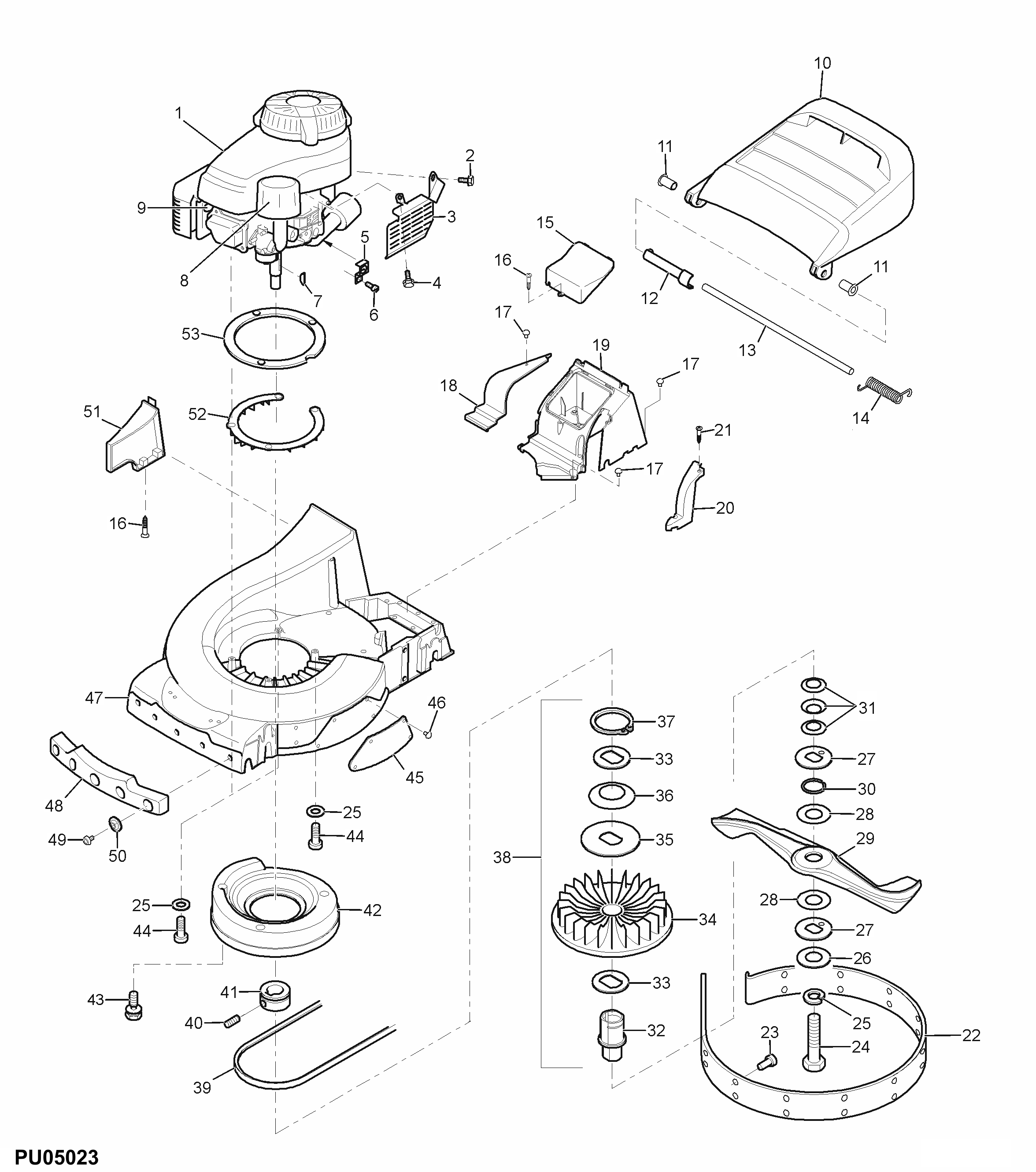

Engine Housing and Mower Deck Discharge

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SAA10491	1	Gasoline Engine	KAWASAKI KAI FJ180V, MODEL AM61-M; INCLUDES SAU11029
1	SAA13437	1	Gasoline Engine	INCLUDES SAU11029, SUB FOR SAA10491, KAWASAKI KAI FJ180, MODEL AS71
1	SAA10491	1	Gasoline Engine	KAWASAKI KAI FJ180V, MODEL CM61-M; INCLUDES SAU12943
1	SAA10491	1	Gasoline Engine	KAWASAKI KAI FJ180V, MODEL AS71; INCLUDES SAU11029
1	SAA10491	1	Gasoline Engine	KAWASAKI KAI FJ180V, MODEL AM61-M; INCLUDES SAU11029
2	19M7774	1	Screw	M6 X 12, SUB FOR MIU11325
3	SAU11029	1	Sheet	-
3	SAU12943	1	Sheet	-
4	M148369	1	Screw	-
5	LG690798	1	Clamp	SUB FOR SA26799
6	SA26798	1	Bolt	-
7	26H74	1	Shaft Key	3/16" X 5/8", SUB FOR SA26554
8	SAU11214	1	Air Filter	-
9	M802138	1	Spark Plug	-
10	SA36516	1	Grass Deflector	-
11	SA36569	2	Bearing	-
12	SA36662	1	Orifice	-
13	SA36512	1	Axle	-
14	SA36572	1	Torsion Spring	-
15	SA36481	1	Cover	-
16	SA34487	3	Bolt	K60X14
17	SA34452	4	Screw	DUO TAPTITE CM 6,0X14
18	SA36570	1	Cover	-
19	SAU10480	1	Cover	-
20	SAU10610	1	Orifice	-
21	SA31377	2	Bolt	KBL 50X14
22	SAU10596	1	Back-Up Ring	-
23	SA34540	10	Rivet	-
24	SA17490	1	Bolt	UNF3/8X63,5
25	SA37178	4	Lock Washer	S10
26	SA29787	1	Disk	-
27	SA29788	2	Thrust Washer	-
28	SAA11144	2	Lining	-
29	SAA10542	1	Knife	SUB FOR SAU11418
30	SA30850	1	Snap Ring	32X1,25
31	SAU10608	3	Disk Spring	-
32	SAU10606	1	Flange	-
33	SAU10749	2	Washer	-
34	SAU10607	1	Fan	-
35	SAU10750	1	Washer	-
36	SAU10751	1	Disk Spring	-
37	SA15746	1	Snap Ring	32X1,25
38	SAU10605	1	Fan	INCLUDES SAU10606, SAU10749, SAU10607, SAU10750, SAU10751, SA15746
39	SAU11284	1	V-Belt	-
39	SAU11645	1	V-Belt	-
40	SA15776	1	Set Screw	M6x16
41	SAU10614	1	Pulley	-
41	SA36483	1	Pulley	-
42	SAA14920	1	Air Plenum	SUB FOR SA36683
43	SA29854	4	Bolt	M5x12
44	SA15578	3	Screw	M10X35
45	SAU10597	2	Sheet	-
46	SAU10613	8	Rivet	-
47	SAA10353	1	Housing	(Re-Bore Holes for Engine Mounting Screws from 8,5mm to 10,5mm in Diameter) INCLUDES SAU10596, SA34540, SAU10597, SAU10613
48	SAU10598	1	Bumper	-
49	SA35503	5	Screw	DUO TAPTITE CM 60X20
50	SAU10752	5	Bushing	-
51	SA36476	1	Shield	-
52	SAU10482	1	Guard	-
53	SA37535	1	Ring	-
54	SA612	1	Grass Mulching Attachment	Not Illustrated

Engine Housing and Mower Deck Discharge

Нет текстового описания
