Winch Driven Shaft, Gear and Bearings (High / Low Speed)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11M7017	1	Cotter Pin	3.200 X 32 mm
2	14H1086	1	Nut	3/4"
3	19M7662	14	Cap Screw	M10 X 30
4	26H85	1	Shaft Key	1/4" X 1"
5	AT12431	1	Seal	-
6	AT139629	1	Gear	-
7	AT307653	1	Bearing Cone	-
8	AU13137	1	Tapered Roller Bearing	-
9	JD10329	1	Ball Bearing	-
10	JD7418	2	Bearing Cup	-
11	JD8129	1	Bearing Cone	-
12	JD8159	2	Bearing Cone	-
13	JD8346	1	Bearing Race	-
14	JD8652	1	Cylindrical Roller Bearing	-
15	JD8865	1	Needle Bearing	-
16	JD8915	1	Bearing Cone	-
17	M4259T	1	Washer	19.253 X 44.450 X 7.137 mm (0.758" X 1-3/4" X 9/32")
18	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
19	R27218	1	Fitting Plug	-
20	R35501	2	Shim	-
21	R35502	2	Shim	-
22	R35503	4	Shim	-
23	R44365	3	Shim	-
24	R44366	2	Shim	-
25	R44367	5	Shim	-
26	R63692	1	Gear	-
27	R712R	1	Snap Ring	-
28	T121280	1	Seal	-
29	T131313	1	Washer	69.950 X 92 X 5 mm (2.754" X 3.622" X 0.197")
30	T131317	1	Washer	-
31	T131318	1	Piston	-
32	T131361	1	Cylindrical Roller Bearing	-
33	T132805	1	Spring	-
34	T142169	1	Bearing Housing W/O Bearing	-
35	T142269	1	V-Ring Seal	-
36	T160179	1	Shaft	-
37	T106838	1	Gear	Standard Speed
37	T161932	1	Gear	High Speed
38	T190913	1	Universal Joint Yoke	-
39	T205946	1	Shaft	-
40	T205947	1	Shaft	-
41	T24862	1	Pinion	-
42	T37592	1	Shim	-
43	T37593	2	Shim	-
44	T37594	6	Shim	-
45	T40703	1	O-Ring	29.515 X 5.334 mm (1.162" X 0.210")
46	T41326	2	O-Ring	164.694 X 3.531 mm (6-31/64" X 0.139")
47	T43615	1	Bearing Housing W/O Bearing	-
48	T51622	1	Bearing Housing W/O Bearing	-
49	T84709	1	Spacer	85.980 X 92.080 X 33.300 mm (3.385" X 3-5/8" X 1.311")
50	T142438	1	Pinion	Standard Speed
50	T84711	1	Pinion	High Speed
51	T84712	1	Gear	-
52	T84713	1	Shaft	-
53	AT48334	1	Seal	-

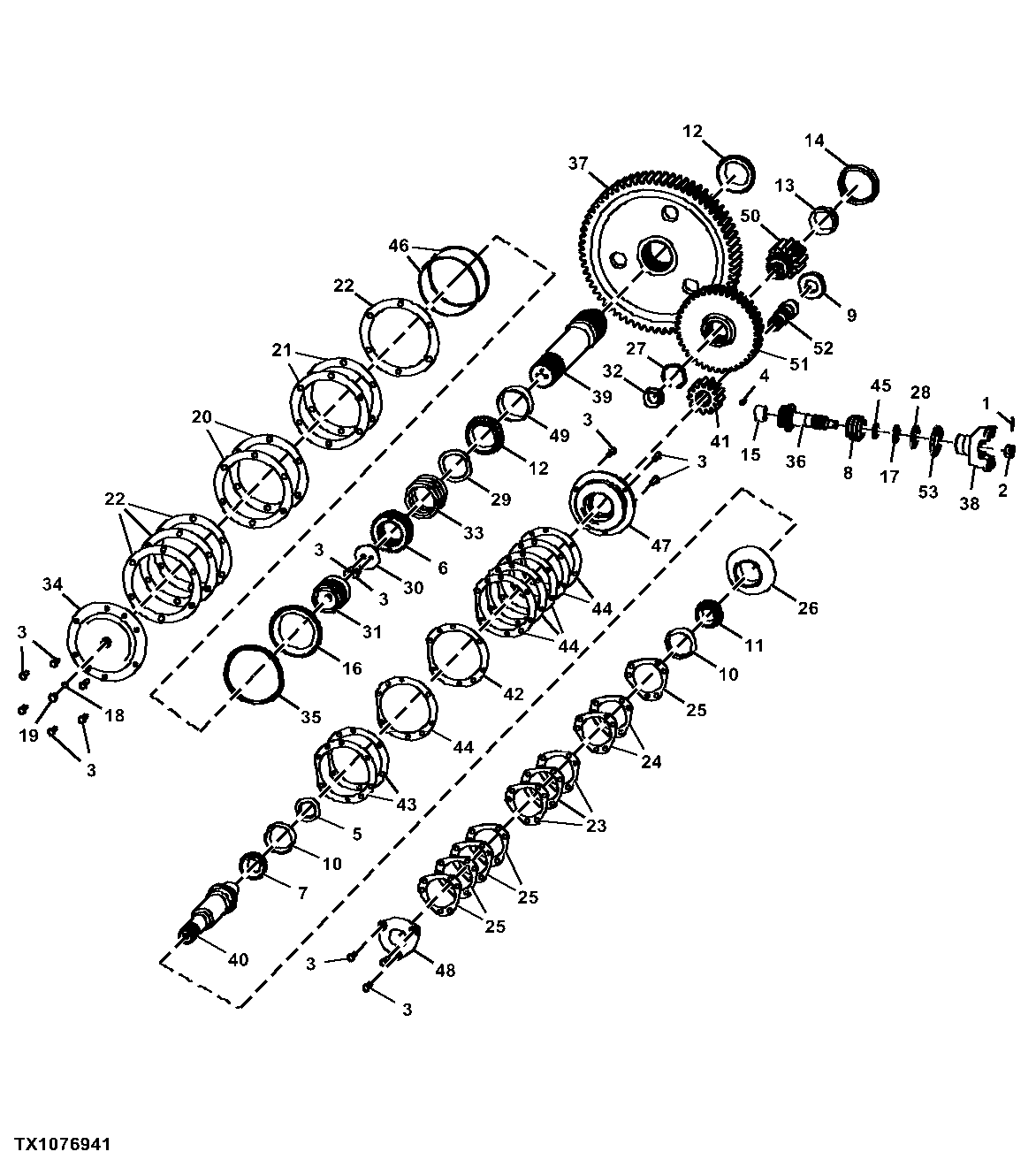

Winch Driven Shaft, Gear and Bearings (High / Low Speed)

Нет текстового описания
