Открытый узел

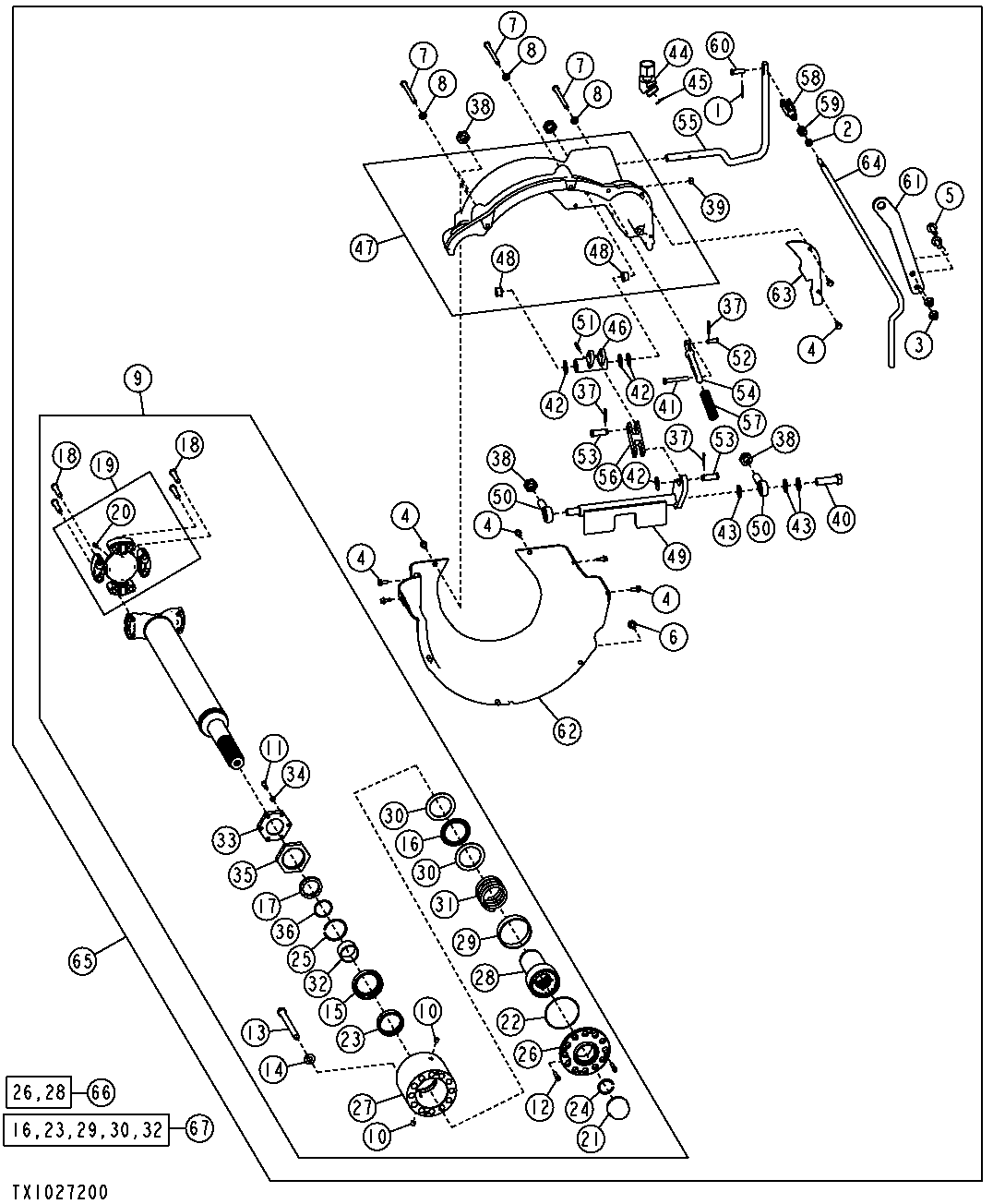

Transmission Disconnect Control Linkage (Direct Drive)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11M7082	1	Cotter Pin	2.500 X 25 mm
2	14H1080	1	Nut	3/8"
3	14M7296	2	Flange Nut	M10
4	19M7775	8	Screw	M6 X 16
5	19M7786	2	Screw	M10 X 30
6	19M7865	7	Screw	M8 X 16
7	19M8456	3	Cap Screw	M8 X 100
8	24M7238	3	Washer	8.700 X 17 X 2 mm
9	AT180584	1	Universal Driveshaft	-
10	15H558	2	Pipe Plug	1/8"
11	19H2924	6	Screw	1/4" X 3/4"
12	19H2932	2	Screw	1/4" X 1"
13	19H3599	12	Cap Screw	1/2" X 5-1/4"
14	24M7240	12	Washer	13 X 25 X 3 mm
15	AT144871	1	Seal	-
16	-	1	Part 16	-
17	AT147162	1	Seal	-
18	19H2960	4	Cap Screw	3/8" X 1-3/4"
19	AT199701	1	Cross And Bearing Assembly	-
20	AT199750	1	Lubrication Fitting	-
21	T325362	1	Cap	(SUB FOR C2213E THIS APPLICATION)
22	E65288	1	O-Ring	-
23	JD10528	1	Bearing	-
24	R26267	1	Ring	-
25	R33232	1	Snap Ring	-
26	-	1	Part 26	-
27	T132402	1	Cover	-
28	T132403	1	Shaft	-
29	-	1	Part 29	-
30	-	1	Part 30	-
31	T134073	1	Compression Spring	-
32	-	1	Part 32	-
33	T138122	1	Bushing	-
34	T139205	6	Washer	-
35	T152858	1	Bushing	-
36	U15973	1	O-Ring	-
37	11M7015	3	Cotter Pin	3.200 X 25 mm
38	14H1041	4	Nut	5/8"
39	14M7273	1	Nut	M8
40	19H2706	1	Cap Screw	5/8" X 2"
41	19M7981	1	Cap Screw	M8 X 55
42	24H1255	4	Washer	11/16" X 1-1/4" X 0.060"
43	24M7053	3	Washer	17 X 30 X 3 mm
44	38H1609	1	Adapter Fitting	-
45	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
46	AT169863	1	Bellcrank	-
47	AT185031	1	Housing	-
48	F3293R	2	Bushing	-
49	AT185495	1	Linkage	-
50	AT186292	2	Link End	-
51	M82289	1	Spring Pin	-
52	P46404	1	Pin Fastener	-
53	R72855	2	Pin Fastener	-
54	T138076	1	Pin Fastener	-
55	T165886	1	Lever	-
56	T41484	1	Link	-
57	T51159	1	Spring	-
58	M81327	1	Yoke	-
59	R42093	1	Grommet	-
60	R65563	1	Pin Fastener	-
61	T161126	1	Gusset	-
62	T165633	1	Cover	-
63	T165887	1	Cover	-
64	T190223	1	Rod	-
65	AT186447	1	Mounting Parts	(WHOLE GOODS)
66	AT146944	1	Transmission Kit	-
67	AT146943	1	Bearing Kit	-

Transmission Disconnect Control Linkage (Direct Drive)

Нет текстового описания
