Tong Section Valve (Pilot) (Single and Dual Function) (Grapple Skidders)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
1	AT169149	1	Pressure Relief Valve	-
2	T154187	2	Back-Up Ring	19.914 X 23.927 X 1.143 mm (0.784" X 0.942" X 0.045")
3	AT124574	2	O-Ring	18.720 X 2.616 mm (0.737" X 0.103")
4	AT170991	2	O-Ring Kit	-
10	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
11	AT169154	1	Pressure Relief Valve	-
12	R26375	2	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
13	AT63271	2	Fitting	-
14	AT319043	2	Seal Kit	-
15	57M10118	1	Elec. Connector Housing	-
15	57M7393	1	Elec. Connector Terminal	-
15	57M7400	2	Elec. Connector Seal	-
15	AT318991	2	Solenoid	-
16	19H3095	2	Screw	1/4" X 2-3/4"
17	19H2932	2	Screw	1/4" X 1"
18	AT312682	1	Solenoid Valve Coil	-
19	F308978	4	Cap Screw	-
20	H84318	2	O-Ring	31.420 X 2.616 mm (1.237" X 0.103")
21	T103088	1	Washer	-
22	T107284	2	Back-Up Ring	19.025 X 23.266 X 3.708 mm (0.749" X 0.916" X 0.146")
23	T166757	4	Lock Washer	-
24	T169957	6	O-Ring	-
25	T186658	2	O-Ring	5.283 X 1.778 mm (0.208" X 0.070")
26	T214022	2	Bushing	-
28	T214053	1	Compression Spring	-
29	T214054	1	Retainer	-
30	T214055	1	Sleeve	-
31	T214056	1	Screw	9.525 X 54.102 mm (3/8" X 2.130")
32	T77928	2	O-Ring	29.820 X 2.616 mm (1.174" X 0.103")
33	AT312683	1	Solenoid Valve Coil	-
34	T103365	1	Spring	-
35	T103366	1	Drain Plug	-
36	T103464	1	Ring	39.599 X 44.831 X 2.591 mm (1.559" X 1.765" X 0.102")
37	T103465	3	Seal	-
38	T214052	1	Compression Spring	-
39	T103364	1	Poppet	Transition Check
40	AT408882	1	Solenoid Hydraulic Valve	Tong Pilot, (SUB FOR AT312691 THIS APPLICATION)
41	T277944	2	Orifice	SUB FOR T215066

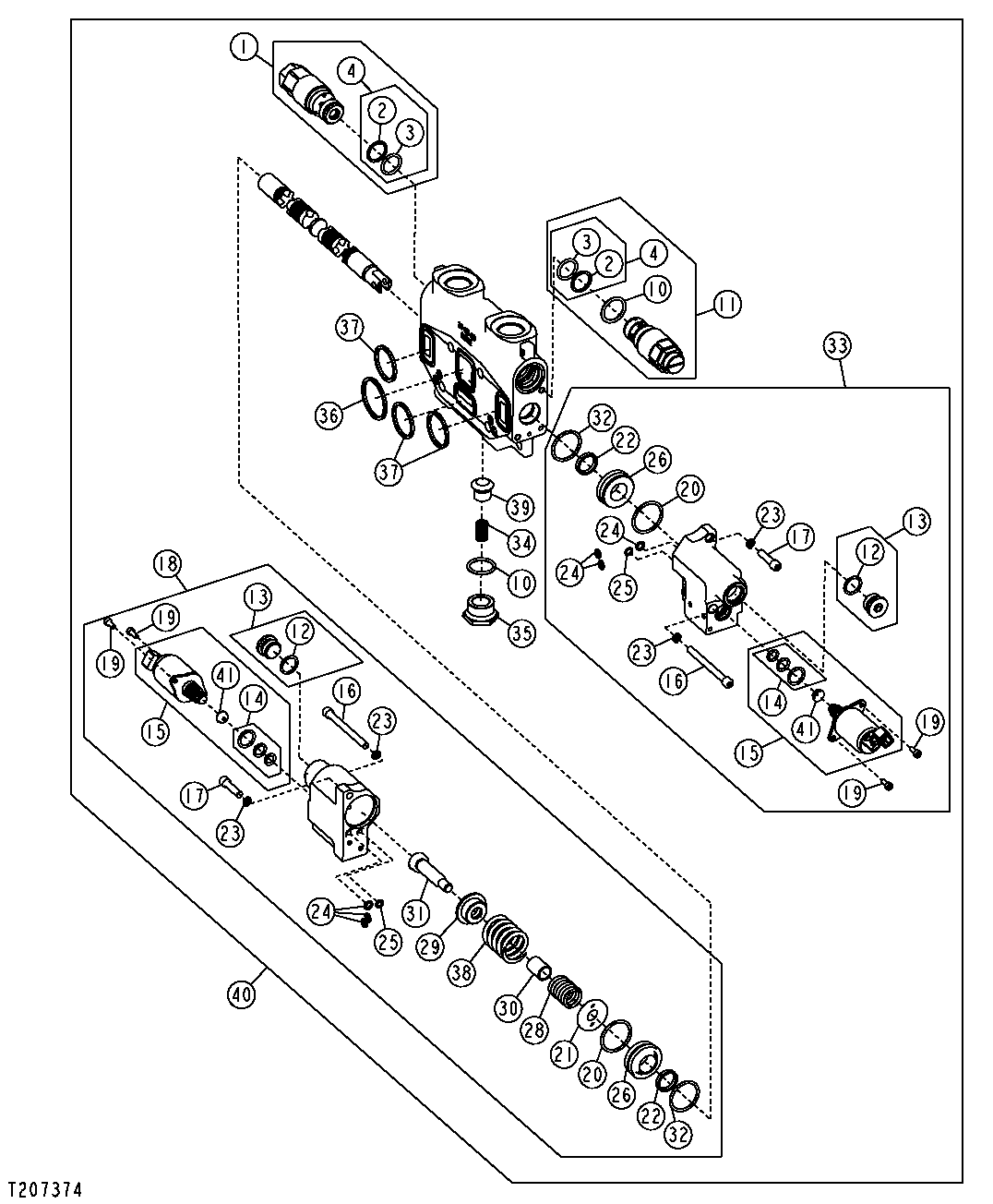

Tong Section Valve (Pilot) (Single and Dual Function) (Grapple Skidders)
