Pilot Control Lever and Support (Single Function)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7774	5	Screw	M6 X 12
2	19M7864	2	Screw	M8 X 12
3	19M8162	4	Screw	M10 X 40
4	19M8324	3	Cap Screw	M10 X 16
5	24H1375	1	Washer	11/16" X 1-1/8" X 0.060"
6	24M7296	8	Washer	10.500 X 30 X 2.500 mm
7	38H1160	1	Adapter Fitting	-
8	R26448	4	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
9	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	38H1168	3	Adapter Fitting	-
11	R26448	3	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
12	14M7415	1	Nut	M12
13	AT186534	1	Lever	-
14	AT186690	1	Knob	-
15	T183401	1	Ring	-
16	T183448	1	Boot	-
17	T183882	6	Clip	-
18	AT330903	1	Multi-Functional Controller	Single Function
18	AT115146	1	Seal Kit	-
19	AT192798	1	Tail Lamp	-
20	AT311456	1	Support	-
21	AT312512	1	Wiring Harness	-
22	37M7090	5	Screw	M6 X 16
23	AT311474	1	Wiring Harness	-
24	AT75769	10	Relay	-
25	AT192588	1	Cover	-
26	AT192951	1	Boot	-
27	AT65619	1	Ball Joint	-
28	T186287	1	Ring	-
32	M68954	2	Lock Nut	9.525 mm (3/8")
33	M84972	2	Nut	-
34	R134098	6	Nut	-
35	R44302	4	Tie Band	-
36	R65476	2	Grommet	-
37	T104220	4	Washer	19.270 X 22.400 X 5.840 mm (0.759" X 0.882" X 0.230")
38	T104482	2	Bushing	-
39	T13333	2	Shim	-
40	T133674	6	Self-Locking Screw	M6 X 16
41	T134895	8	Self-Locking Screw	M6 X 25
42	T186281	1	Label	Single Function Lever
43	T186493	1	Label	Tong Detent
44	T74410	4	Clamp	-
45	U42208	8	Isolator	-
46	U44915	2	Lock Nut	15.875 mm (5/8")

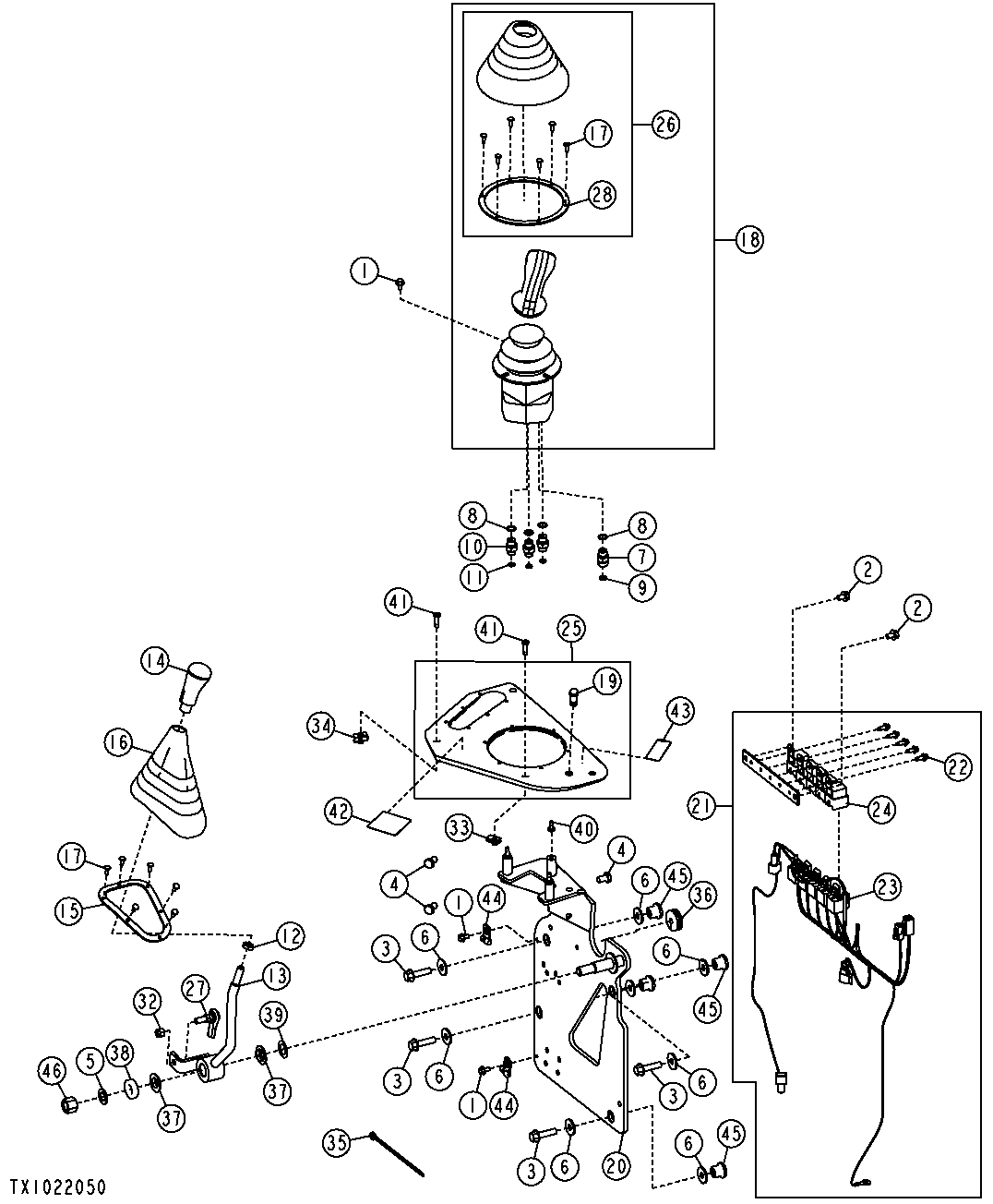

Pilot Control Lever and Support (Single Function)
