Heater Module Assembly Components ( - 649525)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	AT328571 NLA, ORDER AT334360
2	R118305	2	Coupling	-
3	AT191178	1	Funnel	Condensate Drain
4	AT388611	1	Valve	Water Valve, SUB FOR AT301492, INCLUDES (5) 37H95, AT388617, AT393961, T250874
4	37H95	5	Screw	-
4	AT388617	1	Valve	-
4	AT393961	1	Actuator	-
4	T250874	1	Adapter Fitting	-
5	AT330141	1	Heater	NLA
6	19M7863	9	Screw	M6 X 25
7	M84972	10	Nut	-
8	RE49636	1	Resistor	NLA; ORDER AT456900
8	AT456900	1	Resistor	-
9	T178251	14	Cap Screw	-
10	T184924	4	Hose Clamp	SUB FOR AT330787 THIS APPLICATION
11	AT188636	1	Air Duct	Blower to Under Seat
12	AT188767	1	Housing	-
13	T183430	1	Air Duct	-
14	AT188768	1	Blower Motor	NLA; ORDER AT365432
14	R162769	1	Seal	-
14	AT365432	1	Blower Motor	INCLUDES R162769
15	T183432	1	Filter	-
16	T183599	1	Boot	-
17	-	1	Part 24	Valve to Floor, ORDER AT325614
18	-	1	Part 25	Core to Valve, ORDER AT325614
19	-	1	Part 26	Core to Floor, ORDER AT325614
20	-	1	Part 27	ORDER AT334360
21	-	1	Part 28	ORDER AT334360
22	-	1	Part 29	ORDER AT334360
23	-	1	Part 30	ORDER AT334360
24	-	4	Part 31	ORDER AT334360
25	-	3	Part 32	ORDER AT334360
26	AT334360	1	Housing	-
27	AT325614	1	Hose Kit	-
28	AT395667	1	Core	-
29	T181958	1	Tray	-

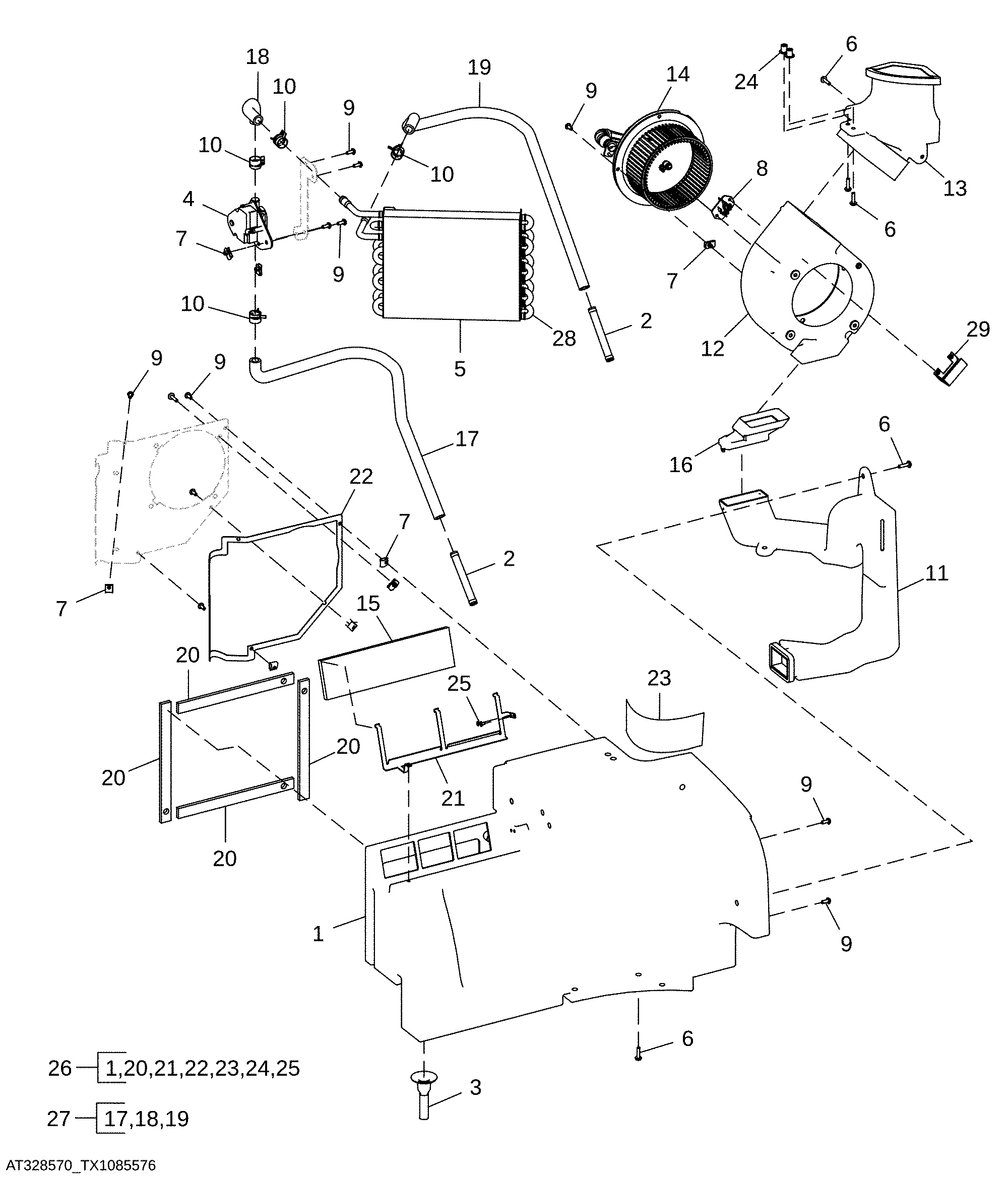

Heater Module Assembly Components ( - 649525)
