Heater / Air Conditioning Module Assembly ( - 649451)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7077	3	Cap Screw	M6 X 20
2	19M7864	1	Screw	M8 X 12
3	19M7933	2	Cap Screw	M6 X 25
4	19M7938	6	Cap Screw	M10 X 20
5	19M8166	2	Cap Screw	M10 X 110
7	19M8600	1	Cap Screw	M10 X 50
8	24M7139	5	Washer	6.400 X 18 X 1.600 mm
9	24M7239	5	Washer	10.700 X 21 X 2.500 mm
10	24M7296	4	Washer	10.500 X 30 X 2.500 mm
11	28H3413	2	Bushing	0.423" X 0.675" X 2-1/2"
12	28H3427	1	Bushing	0.546" X 0.840" X 15/16"
13	37M7333	3	Screw	-
14	57M7688	1	Fuse	-
15	AT188637	1	Cover	-
16	AT191102	1	Air Filter	-
17	AT191178	2	Funnel	-
18	AT191244	1	Air Duct	Latch Not Illustrated Additional Components On Separate Pages, AT191041
19	R125955	4	Rivet	3.120 mm (0.123")
20	AT304952	1	Line	-
21	AT317594	1	Toggle/Rocker Switch	Air Conditioner
22	E46066	1	Nut	11.125 mm (7/16")
23	R10093	3	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
24	R44302	2	Tie Band	-
25	RE157329	1	Switch	Pressure
26	RE43497	1	Switch	5, Position Rotary
27	T138914	1	Label	Receiver /Dryer
28	T160492	2	Fitting	-
29	T166297	1	Grommet	-
30	T16976	2	O-Ring	31.344 X 3.531 mm (1-15/64" X 0.139")
31	T184924	2	Hose Clamp	SUB FOR AT330787 THIS APPLICATION
32	T190513	2	Clamp	-
33	T66413	2	Grommet	-
34	T74416	4	Clamp	-
35	T78974	1	Clamp	-
36	AT334358	1	Housing	Components On Separate Page, ALSO ORDER (3) 19M8425, AT325307 NLA
37	AL76568	1	Knob	-
38	AT162848	1	Receiver-Dryer	-
39	AT186639	1	Air Duct	-
40	AT186661	1	Potentiometer	Three Wire Water Valve
41	T213349	1	Plate	-
42	T78787	2	Clamp	-
43	T184829	2	Retainer	-

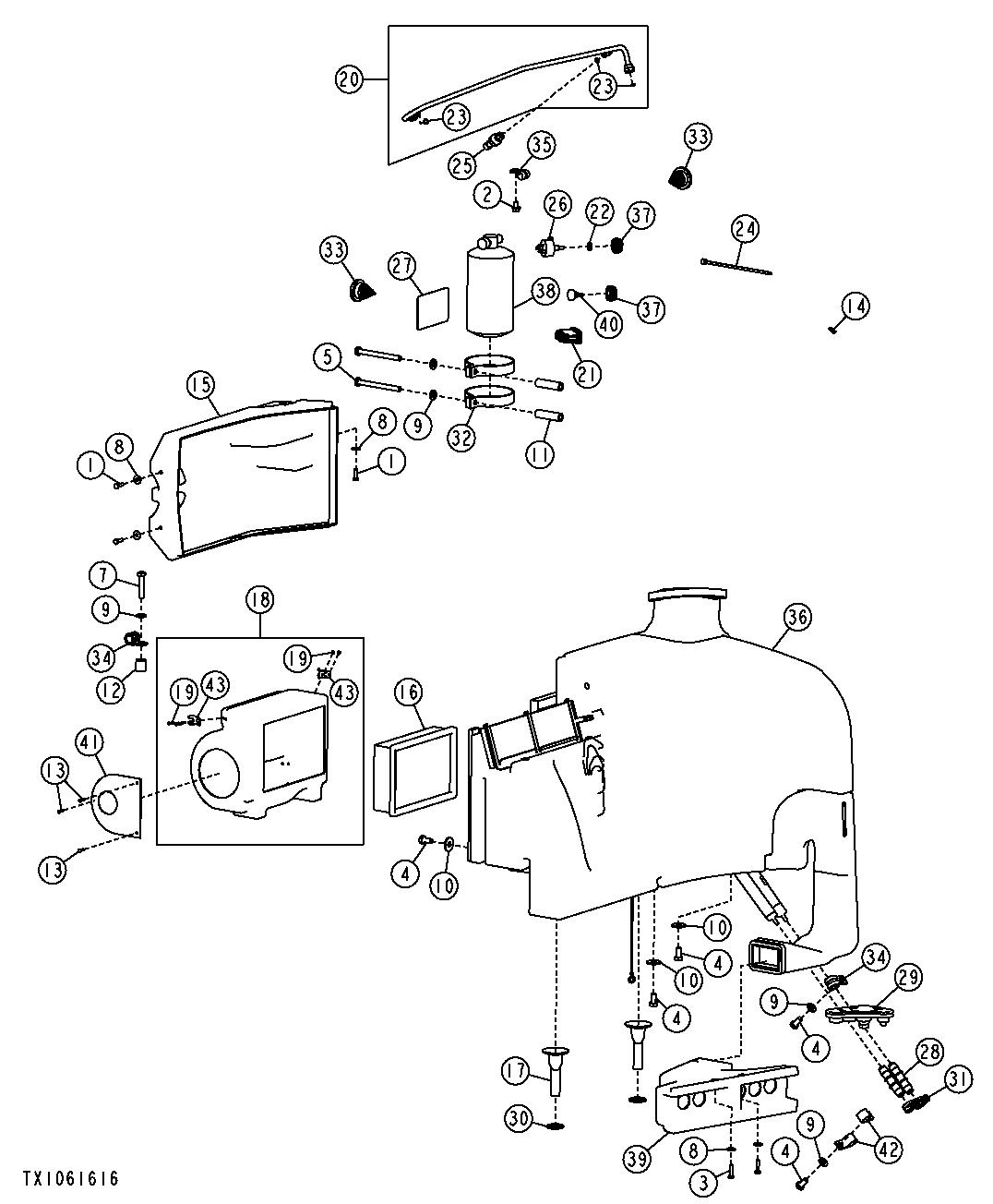

Heater / Air Conditioning Module Assembly ( - 649451)
