Arch Section Valve (Pilot) (Single Function) (Grapple Skidders)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T154187	2	Back-Up Ring	19.914 X 23.927 X 1.143 mm (0.784" X 0.942" X 0.045")
2	AT124574	2	O-Ring	18.720 X 2.616 mm (0.737" X 0.103")
3	AT170991	2	O-Ring Kit	-
4	AT169153	1	Pressure Relief Valve	Boom Down
4	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
8	AT169149	1	Pressure Relief Valve	Boom Up
8	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
9	AT216586	2	Plug	-
10	AT216587	2	Cap	-
11	AT216589	1	Bolt	9.525 X 68.199 mm (3/8" X 2.685")
12	H84318	4	O-Ring	31.420 X 2.616 mm (1.237" X 0.103")
13	M4125T	2	O-Ring	32.995 X 2.616 mm (1.299" X 0.103")
14	T102435	1	Compression Spring	-
15	T102436	2	Sleeve	-
16	T103088	2	Washer	12.979 X 34.544 X 3.302 mm (0.511" X 1.360" X 0.130")
17	T103364	1	Poppet	-
18	T103365	1	Spring	-
19	T103366	1	Drain Plug	-
20	T103464	1	Ring	39.599 X 44.831 X 2.591 mm (1.559" X 1.765" X 0.102")
21	T103465	3	Seal	-
22	T169957	4	O-Ring	6.071 X 1.778 mm (0.239" X 0.070"), Single Function
23	T171072	4	Cap Screw	6.350 X 114.300 mm (1/4" X 4-1/2")
24	T213980	1	Compression Spring	-
25	T213982	1	Sleeve	-
26	T213993	2	Bushing	-
27	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
28	AT312346	1	Hydr./Pilot Control Valve	Arch Pilot Single Function

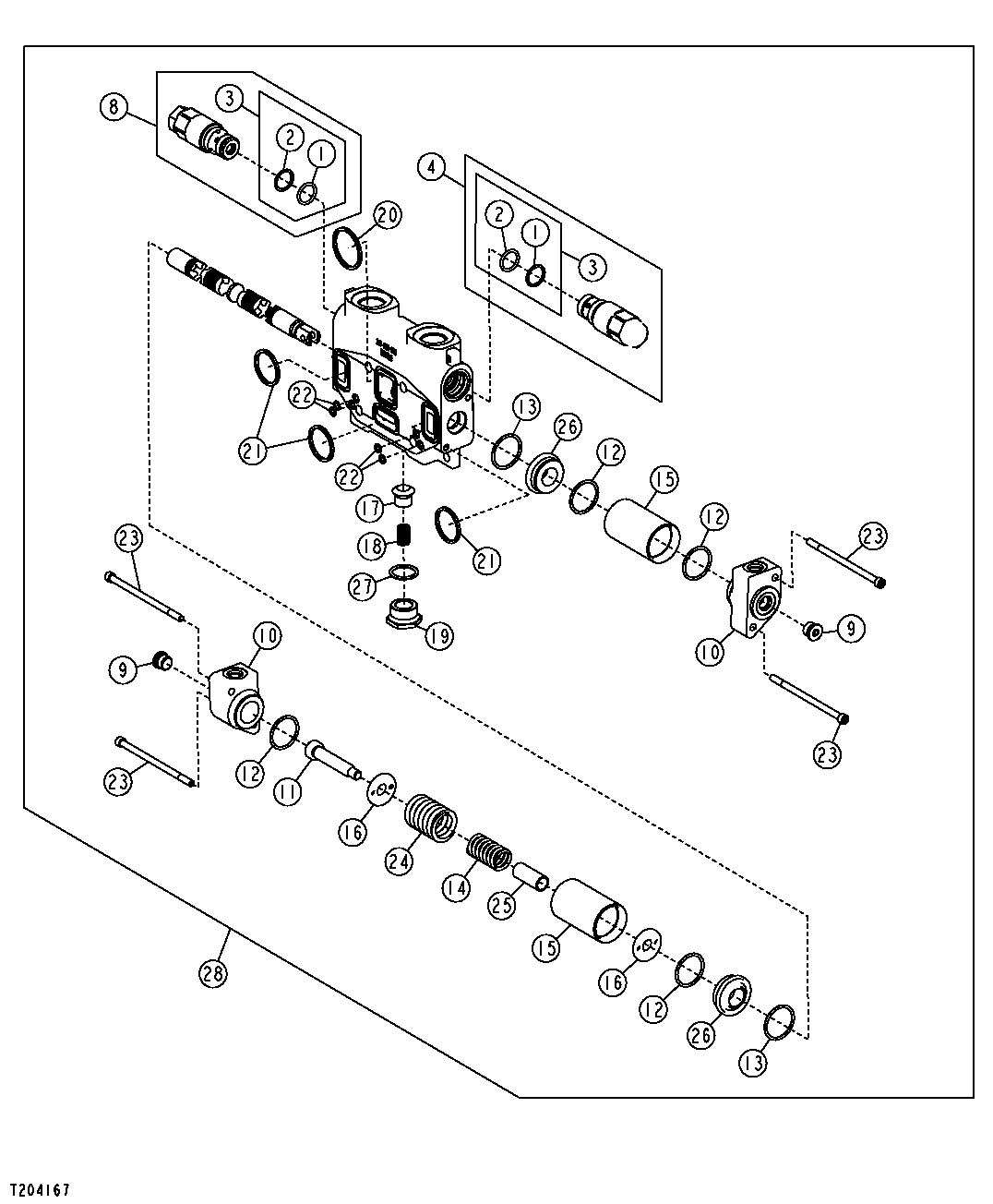

Arch Section Valve (Pilot) (Single Function) (Grapple Skidders)
