Arch and Boom Section Valve (Manual) (Single and Dual Function) (Grapple Skidders)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T154187	2	Back-Up Ring	19.914 X 23.927 X 1.143 mm (0.784" X 0.942" X 0.045")
2	AT124574	2	O-Ring	18.720 X 2.616 mm (0.737" X 0.103")
3	AT170991	2	O-Ring Kit	-
4	AT169149	1	Pressure Relief Valve	Boom Up
4	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
5	19H2925	2	Screw	0.190" X 1/2"
6	19H2924	2	Screw	1/4" X 3/4"
10	AT169153	1	Pressure Relief Valve	Boom Down
10	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
11	T103364	1	Poppet	-
12	T103365	1	Spring	-
13	T103366	1	Drain Plug	-
14	T103464	1	Ring	39.599 X 44.831 X 2.591 mm (1.559" X 1.765" X 0.102")
15	T103465	3	Seal	-
16	T107280	1	Bolt	9.525 X 28.575 mm (3/8" X 1-1/8")
17	T107281	2	Round Retainer	-
18	T107282	2	O-Ring	18.720 X 2.616 mm (0.737" X 0.103")
19	T107283	1	Plate	-
20	T107284	1	Back-Up Ring	19.025 X 23.266 X 3.708 mm (0.749" X 0.916" X 0.146")
21	T107285	1	Spring	-
22	T152729	1	Grommet	-
23	T152732	1	Plate	-
24	T152782	1	Seal	-
25	T152785	1	Washer	12.700 X 19.050 X 1.575 mm (1/2" X 3/4" X 1/16")
26	T213428	1	Cap	-
27	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
28	AT312374	1	Spool Valve	Arch BOOM

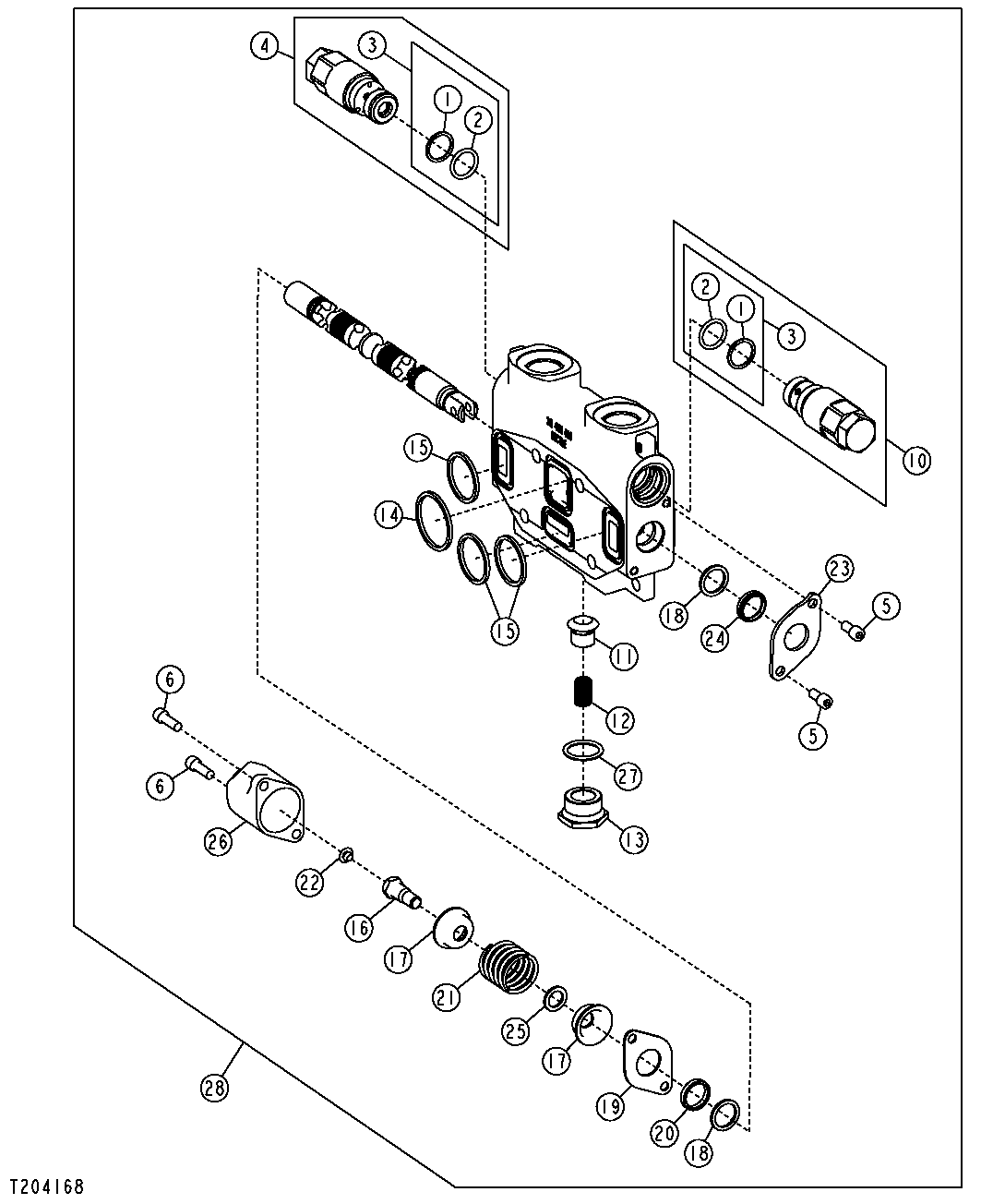

Arch and Boom Section Valve (Manual) (Single and Dual Function) (Grapple Skidders)
