Открытый узел

Air Suspension Seat Base

Air Suspension Seat Base

Air Suspension Seat Base

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

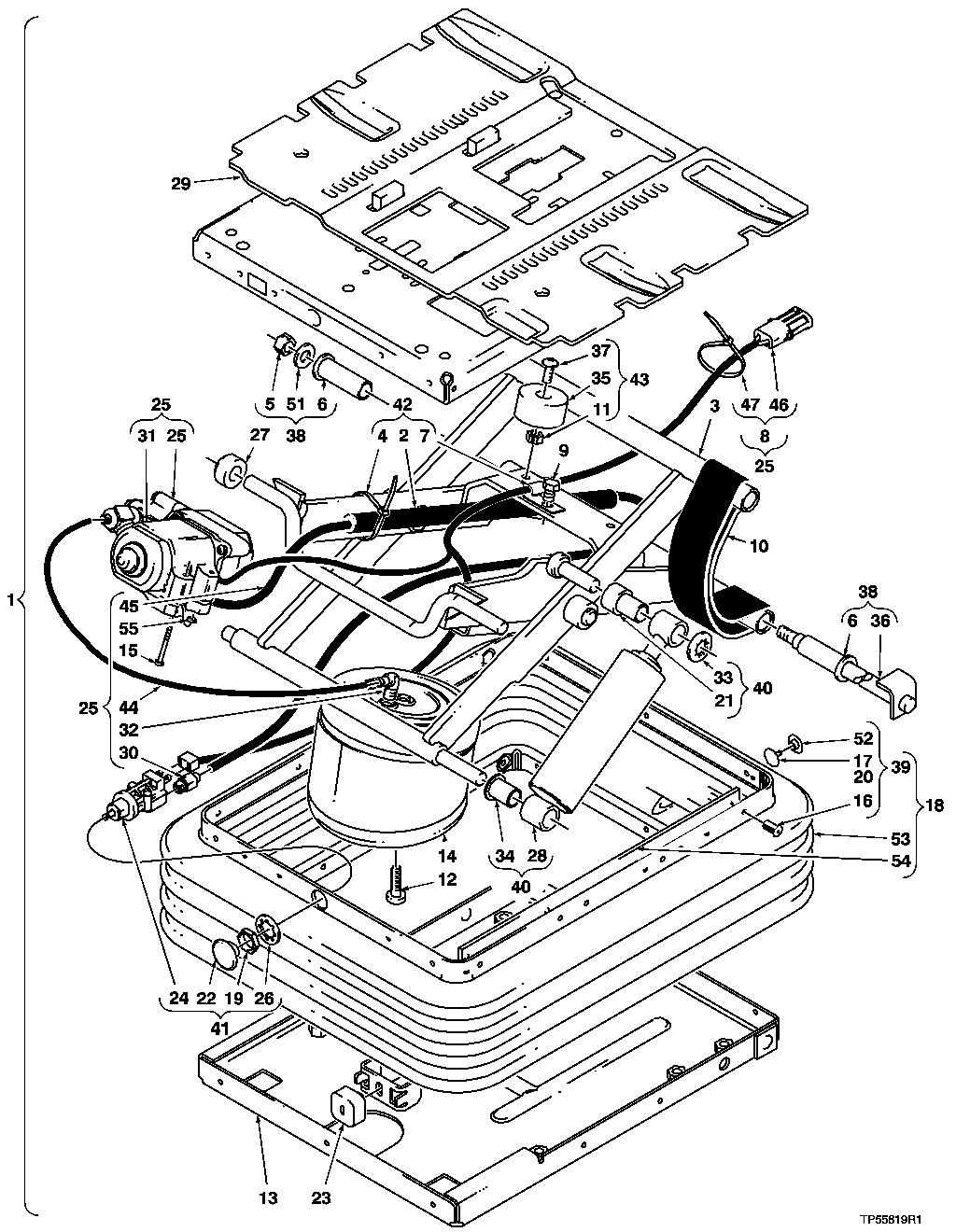

Air Suspension Seat Base

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT366812	1	Seat Suspension	Air
2	-	1	Part 2	(SUB AT407903) (CTL 0.875 m.)
3	AT376001	1	Seat Suspension	Weldment
4	-	1	Part 4	(SUB AT407903)
5	-	2	Part 5	(SUB AT173313)
6	-	4	Part 6	(SUB AT173313)
7	-	1	Part 7	(SUB AT407903)
8	AT208488	1	Wiring Harness	-
9	-	1	Part 9	-
10	AT173315	1	Belt Kit	Tether
11	-	1	Part 11	(SUB AT209469)
12	-	1	Part 12	-
13	AT208483	1	Housing	Lower Housing Weldment Kit
14	AT208486	1	Absorber	Air Bag Air Bladder Spring Thread, (3/8-16 UNC)
15	-	2	Part 15	0.164in. X 1in., (SUB AT407903)
16	-	23	Part 16	(SUB AT173321)
17	-	3	Part 17	(SUB AT173321)
18	AT208491	1	Boot Kit	Boot
19	-	1	Part 19	(SUB AT208490)
20	-	3	Part 20	(SUB AT173321)
21	-	1	Part 21	(SUB AT208487)
22	-	1	Part 22	(SUB AT208490)
23	T55224	1	Bumper	-
24	-	1	Part 24	(SUB AT208490)
25	AT198869	1	Compressor	(INCLUDES AT407903)
26	-	1	Part 26	(SUB AT208490)
27	AT321131	1	Seat Bearing Roller Kit	(SUB FOR AT173314) (BLACK)
27	AT355380	1	Needle Bearing	White
28	-	1	Part 29	(SUB AT208487)
29	-	1	Part 30	Upper Housing Weldment, (ORDER AT366812) (AT208484 NLA)
30	-	2	Part 31	(SUB AT198869)
31	-	1	Part 32	(SUB AT191324)
32	-	1	Part 33	(SUB AT198869)
33	-	1	Part 34	(SUB AT208487)
34	-	1	Part 35	(SUB AT208487)
35	-	1	Part 36	(SUB AT209469)
36	-	2	Part 37	Shaft, Weldment, (SUB AT173313)
37	-	1	Part 38	(SUB AT209469)
38	AT173313	1	Shaft Kit	Suspension Shaft Service, (INCLUDES KEYS: 5, 6, 36 AND 51)
39	AT173321	1	Clip Kit	Boot Clip, (INCLUDES KEYS: 16, 17, 20 AND 52) (INCLUDES KEYS: 16, 17, 20 AND 52)
40	AT182954	1	Seat Shock Absorber Kit	Suspension Shock Service, (INCLUDES KEYS: 21, 28, 33 AND 34)
41	AT208490	1	Selective Control Valve	Control, Air, (INCLUDES KEYS: 19, 22, 24 AND 26)
42	AT407903	1	Fitting Kit	Air Line / Fitting Service, (INCLUDES KEYS: 2, 4, 7, 15, 30, 32, 44 45, 55) (SUB FOR AT208493)
43	AT209469	1	Bumper	Bumper Service, (INCLUDES KEYS: 11, 35, AND 37)
44	-	1	Part 45	(SUB AT407903)
45	-	1	Part 46	(SUB AT407903)
46	-	1	Part 47	(SUB AT208488)
47	-	4	Part 48	(SUB AT208488)
51	-	2	Part 49	(SUB T201170)
52	-	6	Part 50	(SUB T163362)
53	-	1	Part 51	(SUB AT201243)
54	-	2	Part 52	(SUB T163368)
55	-	2	Part 53	(SUB AT407903)
