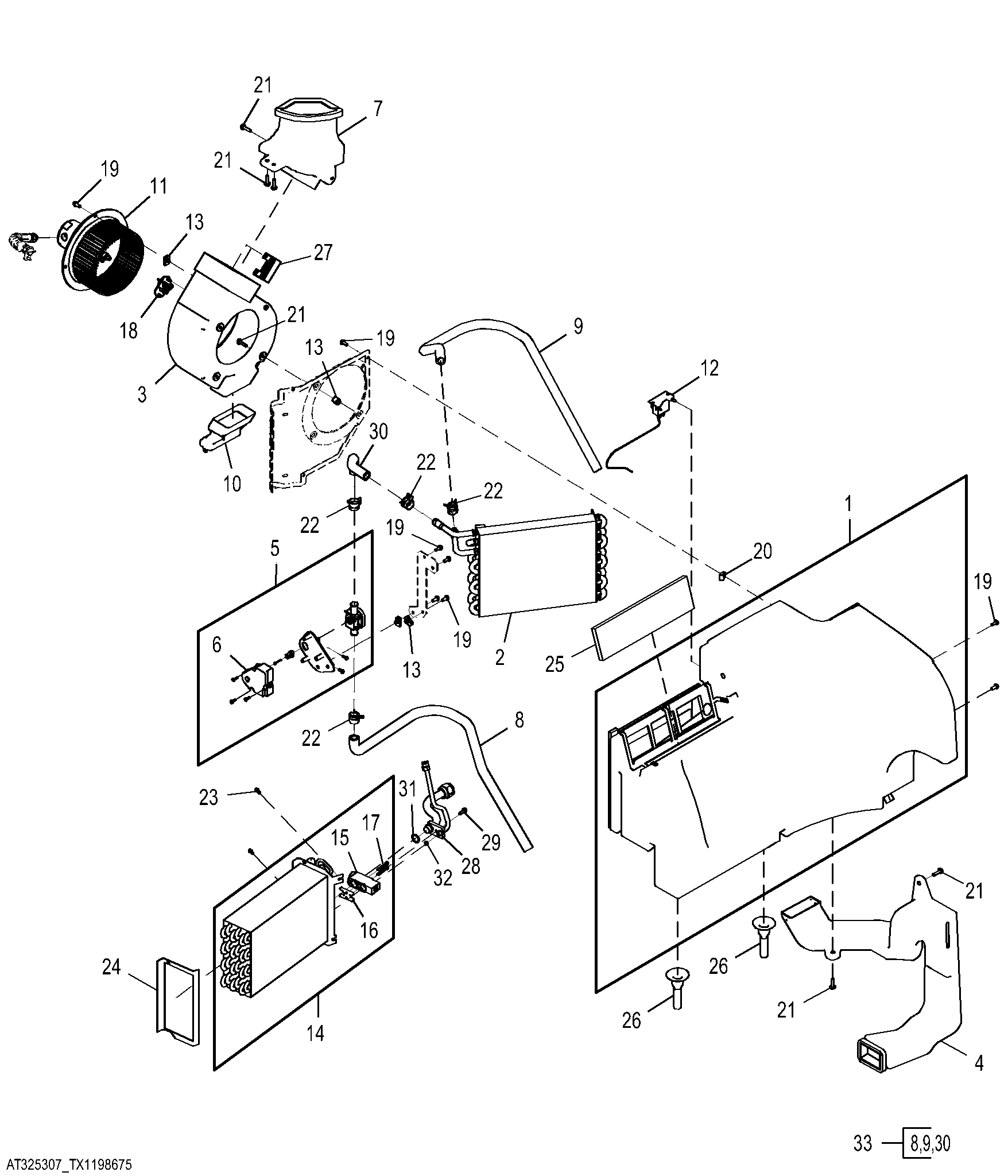

Air Conditioning and Heater Module Components ( - 649451)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT334358	1	Housing	Includes Seals
2	AT395667	1	Core	SUB FOR AT330141 AND AT362081
3	AT188767	1	Housing	-
4	AT188636	1	Air Duct	Blower to Under Seat
5	AT388611	1	Valve	12 V, Water Valve, SUB FOR AT301492, INCLUDES T250874, AT393961, AT388617, (5) 37H95
5	37H95	5	Screw	-
5	AT388617	1	Valve	-
5	T250874	1	Adapter Fitting	-
6	AT393961	1	Actuator	-
7	T183430	1	Air Duct	Blower Outlet to Vertical Diverter Duct
8	-	1	Part 11	ORDER AT325614
9	-	1	Part 12	ORDER AT325614
10	T183599	1	Boot	-
11	AT365432	1	Blower Motor	SUB FOR AT188768, INCLUDES R162769
11	R162769	1	Seal	-
12	RE198074	1	Temperature Switch	-
13	M84972	10	Nut	-
14	RE283957	1	Valve	Air Conditioning Expansion Valve
14	T181522	1	Plate	-
14	R113050	1	O-Ring	-
14	AT362082	1	Evaporator	Evaporator, SUB FOR AT325297 AND AT355351, INCLUDES R113050, R33259, T181522, RE283957
14	R33259	1	O-Ring	-
15	RE174764	1	Valve	-
16	L77943	1	Plate	-
17	PT11778	2	Bolt	-
18	RE49636	1	Resistor	-
19	T178251	14	Cap Screw	-
20	M84972	4	Nut	-
21	19M7863	9	Screw	M6 X 25
22	T184924	4	Hose Clamp	-
23	19M7372	2	Cap Screw	M5 X 16
24	-	1	Part 32	NLA
25	T183432	1	Filter	-
26	AT191178	2	Funnel	Condensate Drain
27	T181958	1	Tray	-
28	AT325300	1	Line	-
29	T116314	1	Screw	-
30	-	1	Part 38	ORDER AT325614
31	T143169	1	O-Ring	-
32	R10093	1	O-Ring	-
33	AT325614	1	Hose Kit	Cab Heater

Air Conditioning and Heater Module Components ( - 649451)
