Axle Cooling and Filtration System

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT330592	1	Oil Cooler	Axle Oil Cooler
2	-	1	Part 2	ORDER AT324289, AT346051 OR AT318789
2	AT318789	1	Seal Kit	-
2	AT324289	1	Oil Pump	Fan Drive
2	AT346051	1	Oil Pump	Axle Oil Circulation
3	T354929	2	Tee Fitting	-
3	AT400471	2	Tee Fitting	-
4	R27474	2	Drain Plug	-
5	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
6	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
7	T213827	1	Plate	-
8	R47172	4	Washer	13.110 X 22.860 X 1.220 mm (33/64" X 0.900" X 0.048")
9	19M7361	4	Cap Screw	M12 X 50
10	T234564	1	Plate	-
11	AT386450	2	Oil Filter	Axle Oil Recirculation Screen
12	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
13	38H1005	7	Elbow Fitting	-
14	R26375	7	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
15	T77857	7	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
16	62H1012	2	Adapter Fitting	-
17	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
18	38H1004	1	Elbow Fitting	-
19	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
20	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
21	62H1011	1	Adapter Fitting	-
22	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
23	38H1291	2	Tee Fitting	-
24	T77613	6	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
25	24H1391	2	Washer	25/32" X 1-5/16" X 0.060"
26	T81029	2	Nut	17.475 mm (11/16")
27	38H1094	1	Elbow Fitting	-
28	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
29	38H1031	2	Tee Fitting	-
30	T77857	4	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
31	AT312932	2	Fitting	-
32	AT335179	1	Hydraulic Hose	17.4752" X 400 mm (15-3/4") X 17.4752", Fabricate
33	AT335179	1	Hydraulic Hose	17.4752" X 400 mm (15-3/4") X 17.4752", Fabricate
34	AT335179	1	Hydraulic Hose	17.4752" X 400 mm (15-3/4") X 17.4752", Fabricate
35	AT335179	1	Hydraulic Hose	17.4752" X 400 mm (15-3/4") X 17.4752", Fabricate
36	AT332605	1	Hydraulic Hose	13/16" X 2500 mm (98-1/2") X 13/16"
37	AT333062	1	Hydraulic Hose	36.5252" X 1955 mm (77") X 30.1752", Fabricate
38	AT333055	1	Hydraulic Hose	Fabricate
39	AT333057	1	Hydraulic Hose	Fabricate
40	AT334170	1	Hydraulic Hose	17.4752" X 4000 mm (157-1/2") X 13/16", Fabricate
41	AT371083	1	Hydraulic Hose	13/16" X 3850 mm (151-1/2") X 1/2", Fabricate
42	R136495	3	Gasket	-
43	R136514	1	Spacer	-
44	R116296	1	Cover	-
45	19M7866	2	Screw	M8 X 20
46	T225866	1	Dipstick Tube	-
47	AT329269	1	Dipstick	Engine Oil
48	AT330606	1	Bracket	-
49	AT330678	1	Bracket	-
50	24M7296	8	Washer	10.500 X 30 X 2.500 mm
51	19M7786	4	Screw	M10 X 30
52	19M7835	4	Screw	M10 X 35
53	T77857	4	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
54	T218003	2	Label	Axle/Gearbox Oil
55	T238029	1	Adjusting Strap	-
56	R504604	2	Cap Screw	M8 X 95
57	AT371099	2	Filter	-
57	AT367635	1	Filter Element	-
58	R70921	2	Adapter Fitting	-
59	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
60	19M7785	8	Screw	M10 X 25
61	62H1019	1	Adapter Fitting	-
62	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
63	AT409630	1	Hydraulic Hose	13/16" X 5169 mm (203-1/2") X 13/16", Fabricate
64	AT409631	1	Hydraulic Hose	13/16" X 5045 mm (198-3/4") X 13/16", Fabricate
65	RE537637	2	Coolant Temperature Sensor	Axle Oil
66	38H1338	2	Adapter Fitting	-
67	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
68	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
69	AT409828	1	Hydraulic Hose	17.4752" X 1903 mm (75") X 17.4752", Fabricate
70	AT409827	1	Hydraulic Hose	17.4752" X 1906 mm (75") X 17.4752", Fabricate
71	T76252	1	Clamp	-
72	19M7865	1	Screw	M8 X 16

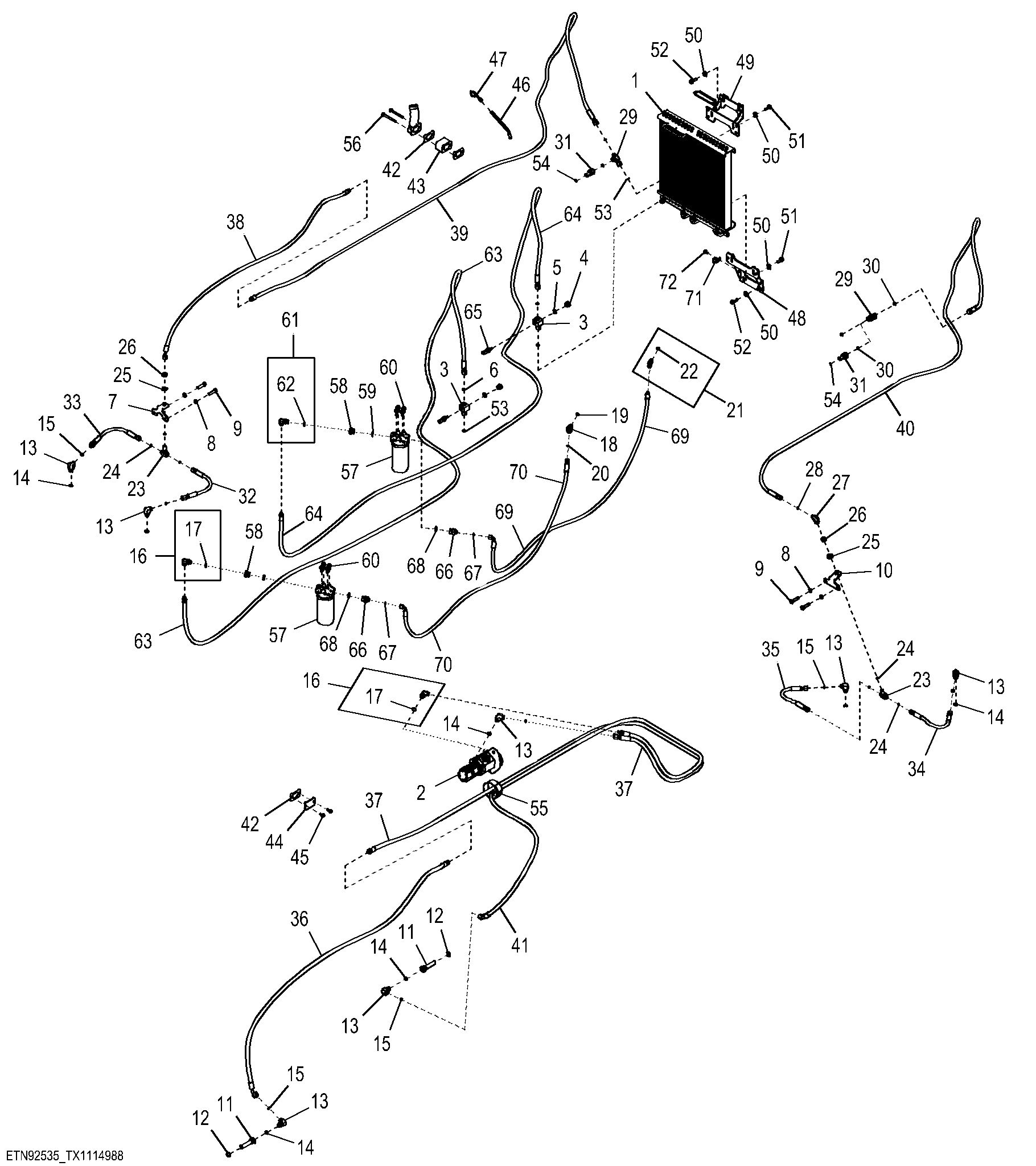

Axle Cooling and Filtration System
