Secondary Steering System for Joystick Steering

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7274	4	Nut	M10
2	19M7784	2	Screw	M10 X 20
3	19M7785	4	Screw	M10 X 25
4	19M7866	3	Screw	M8 X 20
5	19M7950	2	Cap Screw	M20 X 45
6	24M7242	2	Washer	21.400 X 42 X 5 mm
7	38H1005	1	Elbow Fitting	-
8	R26375	2	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
9	T77857	3	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
10	38H1030	1	Tee Fitting	-
11	T77613	3	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
12	38H1052	1	Elbow Fitting	-
13	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
14	T77858	7	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
15	38H1095	1	Elbow Fitting	-
16	38H1161	1	Adapter Fitting	-
17	38H1163	4	Adapter Fitting	-
18	38H1194	1	Adapter Fitting	-
19	38H1435	1	Elbow Fitting	-
20	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
21	AT210155	1	Wiring Harness	Secondary Steering
22	AT335247	1	Manifold	Secondary Steering Valve Components On Separate Page
26	AT342661	1	Hydraulic Hose	-
27	AT344998	1	Hydraulic Hose	Fabricate
28	AT345343	1	Hydraulic Hose	Fabricate
29	AT346034	1	Hydraulic Hose	-
30	AT349514	1	Hydraulic Hose	Fabricate
31	AT354832	1	Hydraulic Hose	Fabricate
32	AT354871	1	Hydraulic Hose	Fabricate
33	AT355074	1	Pump	-
34	AT210093	1	Solenoid	-
35	AT210094	1	Motor	-
36	AT355075	1	Pump	-
37	T173579	1	Bracket	-
38	T228639	1	Plate	-
39	U12547	4	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
40	38H1193	1	Adapter Fitting	-
41	R26906	1	O-Ring	-
42	AT354069	1	Hydraulic Hose	Fabricate
43	AT210056	1	Wiring Harness	Secondary Steering Switch

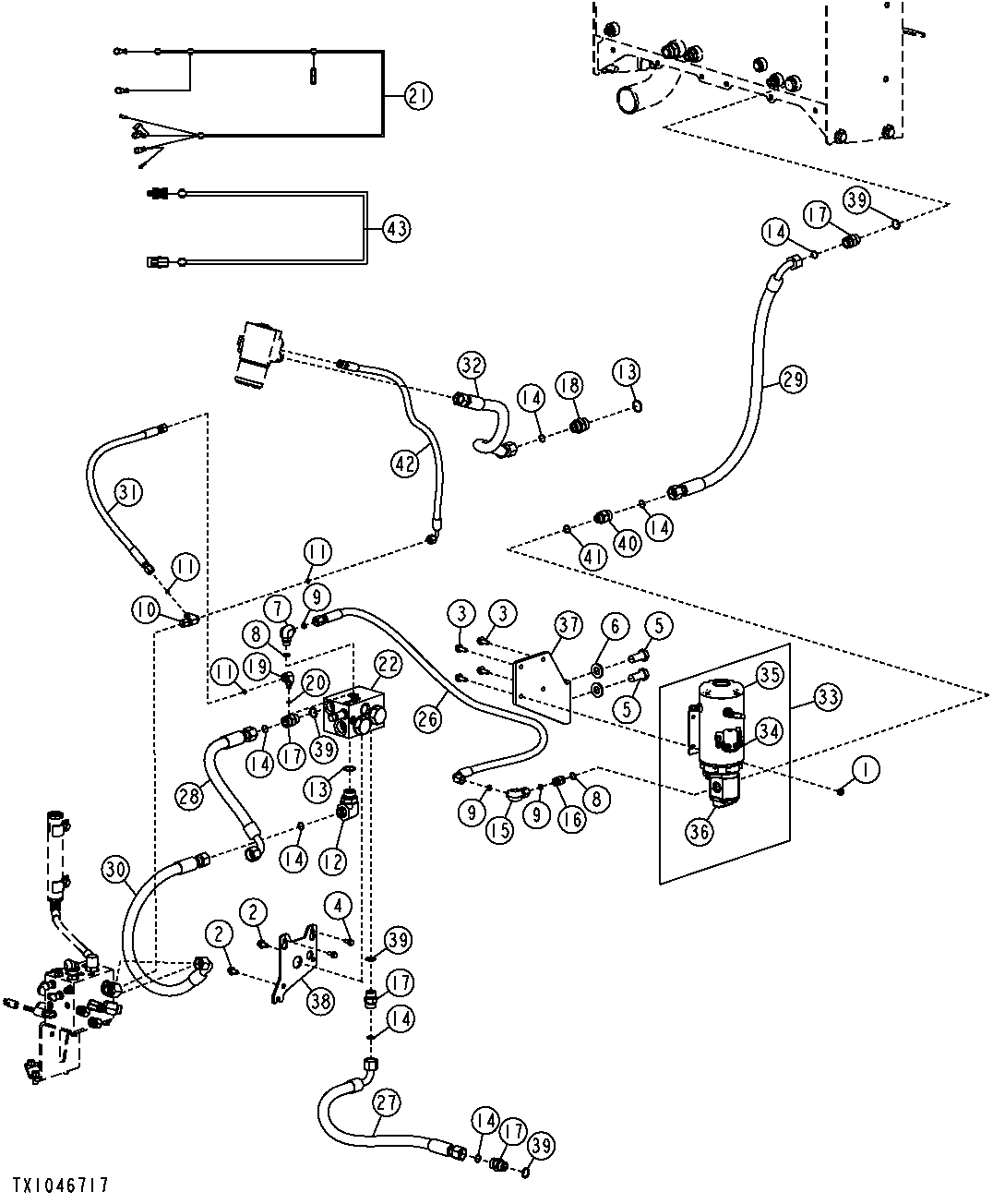

Secondary Steering System for Joystick Steering
