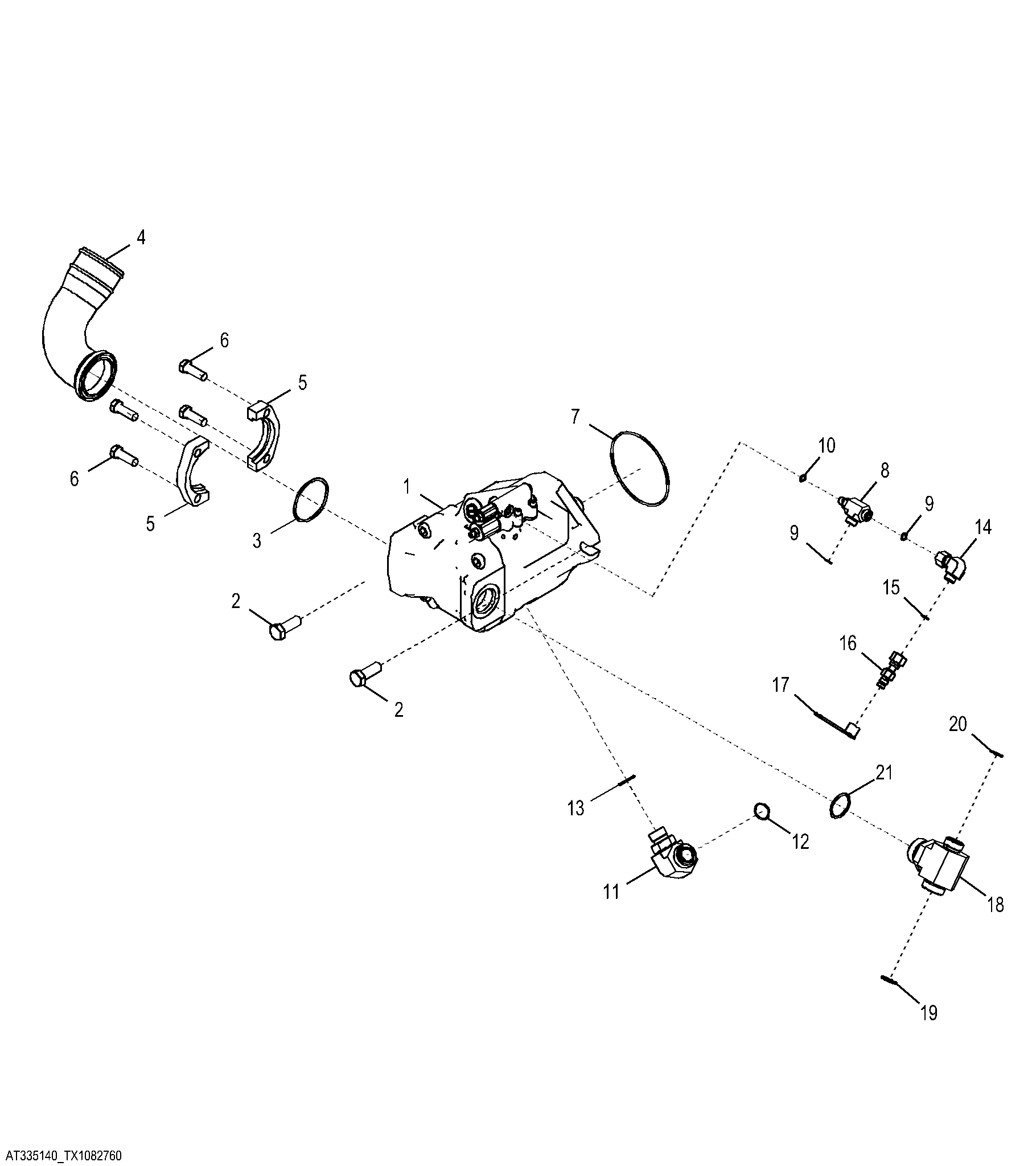

Main Hydraulic Pump (625668 - 639107)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PG200857	1	Hydraulic Pump Reman	REMAN FOR AT337776
1	AT334877	1	Pump/Valve Controller	-
1	AT341165	1	Seal Kit	Pump Controller Seal Kit, INCLUDES (2) T201525 AND T201521
1	T201521	1	Gasket	Controller Seal Plate
1	AT302145	1	Seal Kit	Pump Seal Kit
1	T201525	2	Seal	-
1	T201521	1	Gasket	-
1	AT337776	1	Hydraulic Pump	85 cc, INCLUDES AT334877, AT341165, T201521 AND AT302145
2	19M7488	2	Cap Screw	M16 X 40
3	U12331	1	O-Ring	69.444 X 3.531 mm (2-47/64" X 0.139")
4	T204584	1	Elbow Fitting	-
5	X51H-40	2	Flange Fitting	SUB FOR U44384
6	19H2993	4	Cap Screw	1/2" X 1-1/2"
7	T107883	1	O-Ring	124 X 3 mm (4.882" X 0.118")
8	38H1434	1	Tee Fitting	-
9	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
11	38H1305	1	Elbow Fitting	-
12	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
13	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
14	38H1094	1	Elbow Fitting	-
15	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
16	RE60701	1	Diagnostic Coupling	-
17	R77175	1	Cover	-
18	38H1644	1	Adapter Fitting	-
19	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
20	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
21	U13639	1	O-Ring	37.465 X 2.997 mm (1.475" X 0.118")

Main Hydraulic Pump (625668 - 639107)

Нет текстового описания
