Boom and Bucket Cylinder Hydraulics (Powerllel™) (3-Spool Control Valve)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7296	4	Flange Nut	M10
2	14M7400	1	Lock Nut	M10
3	19M7786	2	Screw	M10 X 30
4	19M7805	3	Screw	M10 X 45
5	19M7835	4	Screw	M10 X 35
6	19M7979	2	Screw	M8 X 55
7	19M9128	2	Screw	M10 X 75
8	24M7238	2	Washer	8.700 X 17 X 2 mm
9	24M7296	2	Washer	10.500 X 30 X 2.500 mm
10	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
11	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
12	38H1418	2	Fitting	-
13	38H1276	2	Adapter Fitting	-
14	T77858	10	O-Ring	-
15	TY22493	2	Hose Clamp	-
16	TY22493	2	Hose Clamp	-
17	AT206698	1	Oil Line	-
18	AT224665	2	Bracket	-
19	AT228197	2	Hydraulic Hose	-
20	AT305050	1	Oil Line	-
21	AT305112	1	Oil Line	-
22	AT305114	1	Oil Line	-
23	AT313424	2	Hydraulic Hose	Fabricate
24	AT314675	1	Hydraulic Hose	-
25	AT314677	2	Hydraulic Hose	-
26	AT315051	1	Hydraulic Hose	-
27	AT320529	1	Oil Line	-
28	AT320530	1	Oil Line	-
29	AT320542	1	Oil Line	-
30	AT322446	1	Oil Line	-
31	AT322466	1	Oil Line	-
32	AT349341	1	Hydraulic Hose	-
32	AT366884	1	Hydraulic Hose	Fabricate
33	T105773	4	Guide	-
34	T147188	2	Clamp	-
35	T148712	4	Washer	11.215 X 33.200 X 3 mm (0.442" X 1.307" X 0.118")
36	T167921	2	Clamp	-
37	T174275	2	Lock Washer	30.950 mm (1-7/32")
38	T215434	2	Clamp	-
39	T67995	2	Clamp	-
40	T76938	1	O-Ring	-
41	T77932	2	O-Ring	-
42	T78707	2	Nut	30.175 mm (1-3/16")
43	TY22495	1	Hose Clamp	-
44	U46753	2	Hose Clamp	-

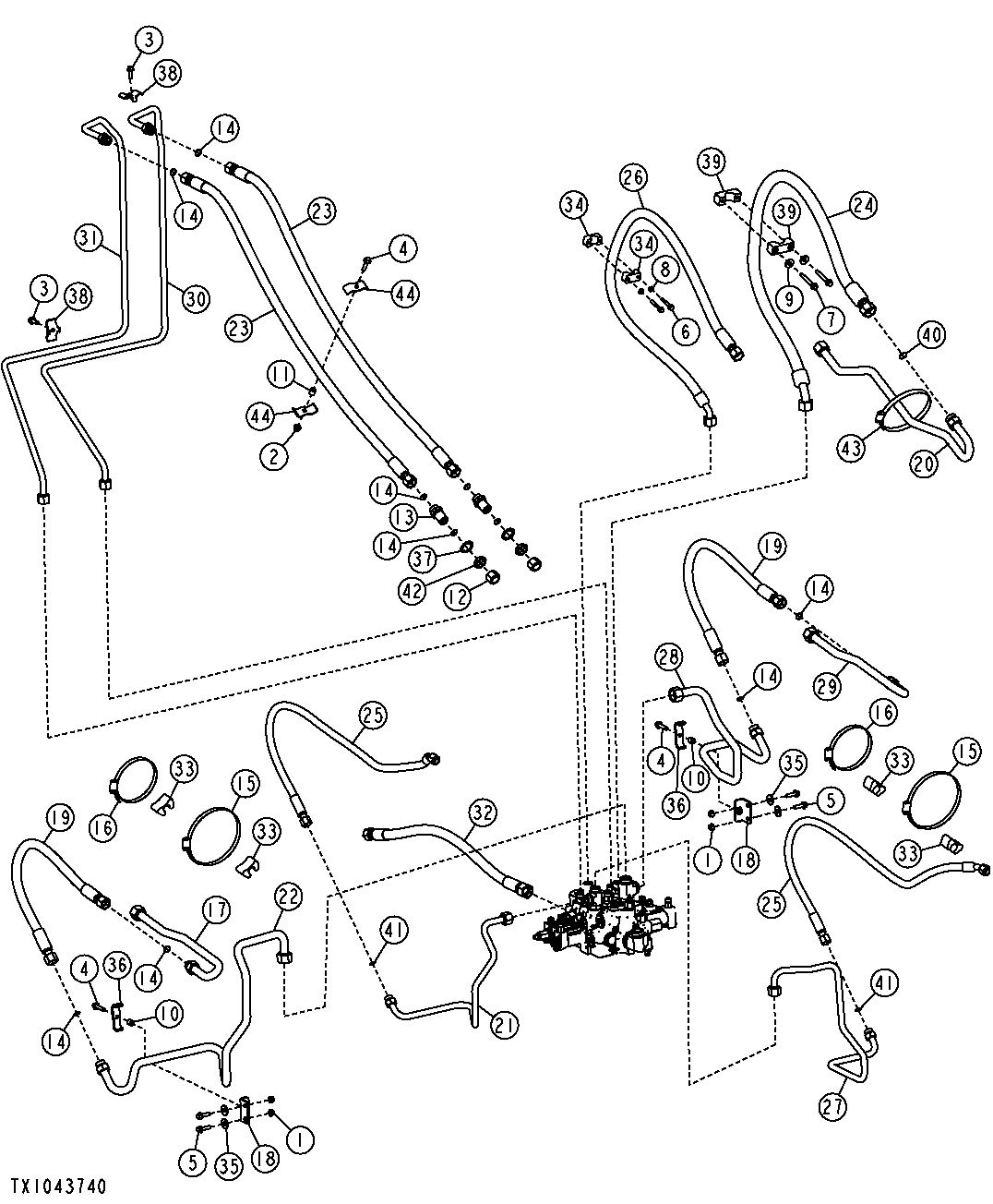

Boom and Bucket Cylinder Hydraulics (Powerllel™) (3-Spool Control Valve)
