Открытый узел

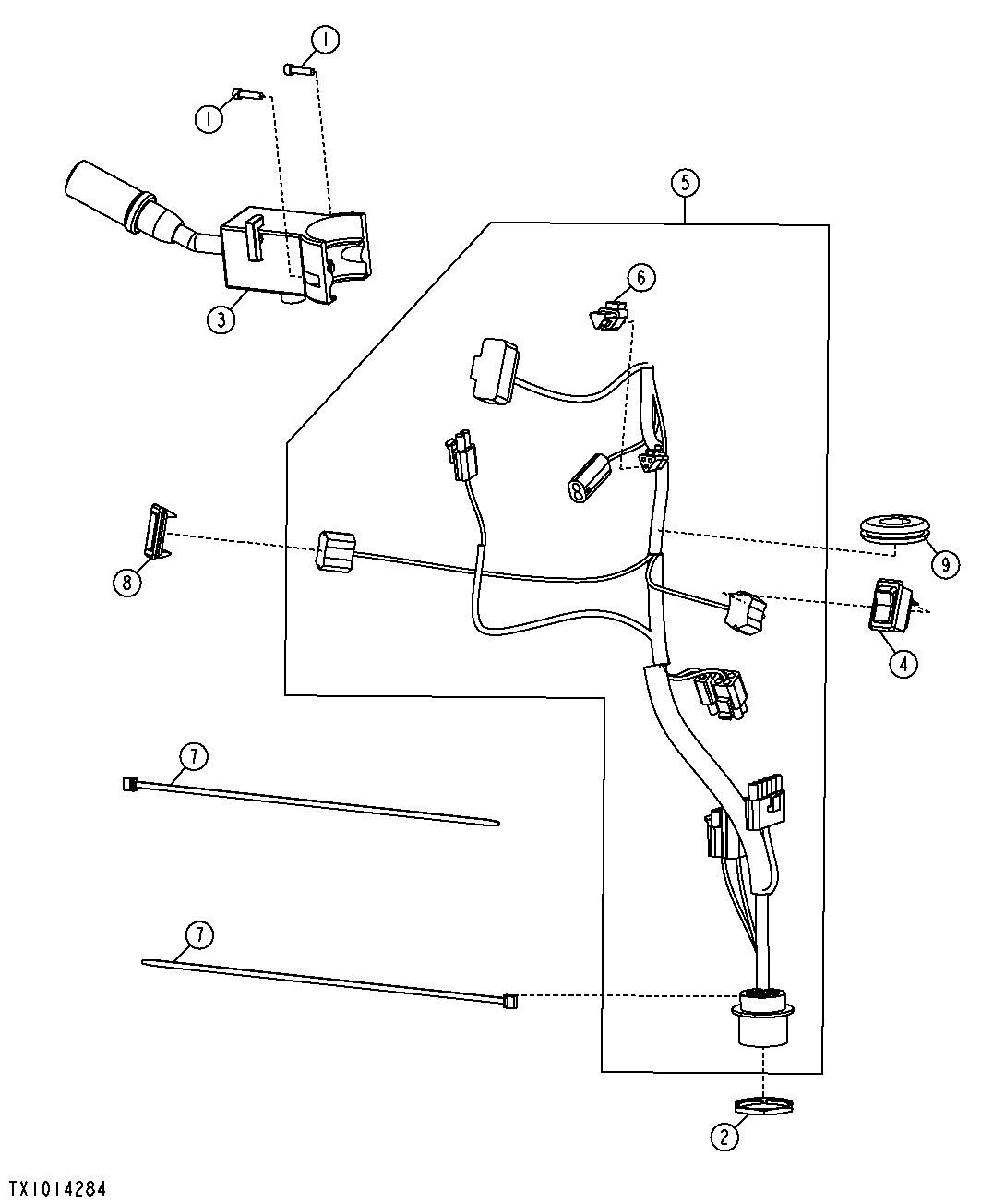

Dash Module with Steering Column FNR

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M9384	2	Screw	M5 X 45
1	19M8146	2	Screw	M5 X 16
2	57M8035	1	Nut	-
3	57M10781	2	Elec. Connector Terminal	USE WITH 57M8023
3	57M10489	1	Elec. Connector Cable Seal	USE WITH AT395263
3	R78061	1	Elec. Connector Terminal	USE WITH AT395263
3	R78065	2	Elec. Connector Terminal	USE WITH 57M7534
3	57M7534	1	Elec. Connector Housing	USE WITH AT395263
3	57M8023	1	Elec. Connector Housing	USE WITH AT395263
3	AT395263	1	Wiring Harness	FNR Shifter Jumper Harness Not Illustrated
3	R78059	1	Elec. Connector Seal	USE WITH AT412433
3	R78061	1	Elec. Connector Terminal	USE WITH AT412433
3	AT412433	1	Wiring Harness	FNR Shifter Jumper Harness Not Illustrated
3	AT378210	1	Switch	ALSO ORDER AT395263 AND (2) 19M9384
3	AT176801	1	Switch	NLA, ORDER AT378210, AT412433 AND (2) 19M9384
4	AT208630	1	Switch	Park Brake Switch
5	AT360651	1	Wiring Harness	Front Console
6	57M8131	1	Electronic Terminator	-
7	H77698	2	Tie Band	-
8	M115279	1	Plug	-
9	T46876	1	Grommet	-

Dash Module with Steering Column FNR

Нет текстового описания
