Открытый узел

Third and Fourth Function Auxiliary Hydraulic Lines (Powerllel™)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7786	4	Screw	M10 X 30
2	38H1276	4	Adapter Fitting	-
3	38H1418	4	Fitting	-
4	T77858	12	O-Ring	-
5	-	1	Part 5	(SUB <service-part qty="1">AT322446</service-part> AND <service-part qty="1">AT322466</service-part> ) (ALSO ORDER <service-part qty="1" >AT323713</service-part>)( <service-part>AT307813</service-part> NLA)
5	AT322446	1	Oil Line	-
6	-	1	Part 7	(SUB <service-part qty="1">AT322466</service-part> AND <service-part qty="1">AT322446</service-part> ) (ALSO ORDER <service-part qty="1" >AT323713</service-part>)( <service-part>AT307814</service-part> NLA)
6	AT322466	1	Oil Line	-
7	AT313424	4	Hydraulic Hose	13/16" X 1550 mm (61") X 13/16", Fabricate
8	-	2	Part 10	(SUB <service-part qty="1">AT322501</service-part> AND <service-part qty="1">AT322445</service-part> ) (ALSO ORDER <service-part qty="1" >AT323713</service-part>)( <service-part>AT314195</service-part> NLA)
8	AT322501	2	Oil Line	-
9	AT322445	4	Oil Line	-
9	-	4	Part 12	(SUB <service-part qty="1">AT322445</service-part> AND <service-part qty="1">AT322501</service-part> ) (ALSO ORDER <service-part qty="1" >AT323713</service-part>)( <service-part>AT314196</service-part> NLA)
11	T215434	4	Clamp	(SUB FOR KV22609)
12	T174275	4	Lock Washer	-
13	T78707	4	Nut	-
14	T210447	2	Plate	-
15	14M7400	2	Lock Nut	M10
16	19M7805	2	Screw	M10 X 45
17	28H3383	2	Bushing	0.493" X 0.675" X 3/4"
18	U46753	4	Hose Clamp	-
19	38H1609	1	Adapter Fitting	-
20	T77858	1	O-Ring	-
..	-	1	Part 26	( <service-part>AT323713</service-part> NLA) (NOT ILLUSTRATED) (WHOLE GOODS)
10A	-	1	Part 14	(AT316332 NLA), Fabricate, (SUB AT353231, THIS APPLICATION ) (ALSO ORDER 38H1609 AND T77858)
10B	AT353231	1	Hydraulic Hose	30.1752" X 1101 mm (43-1/4") X 36.5252"

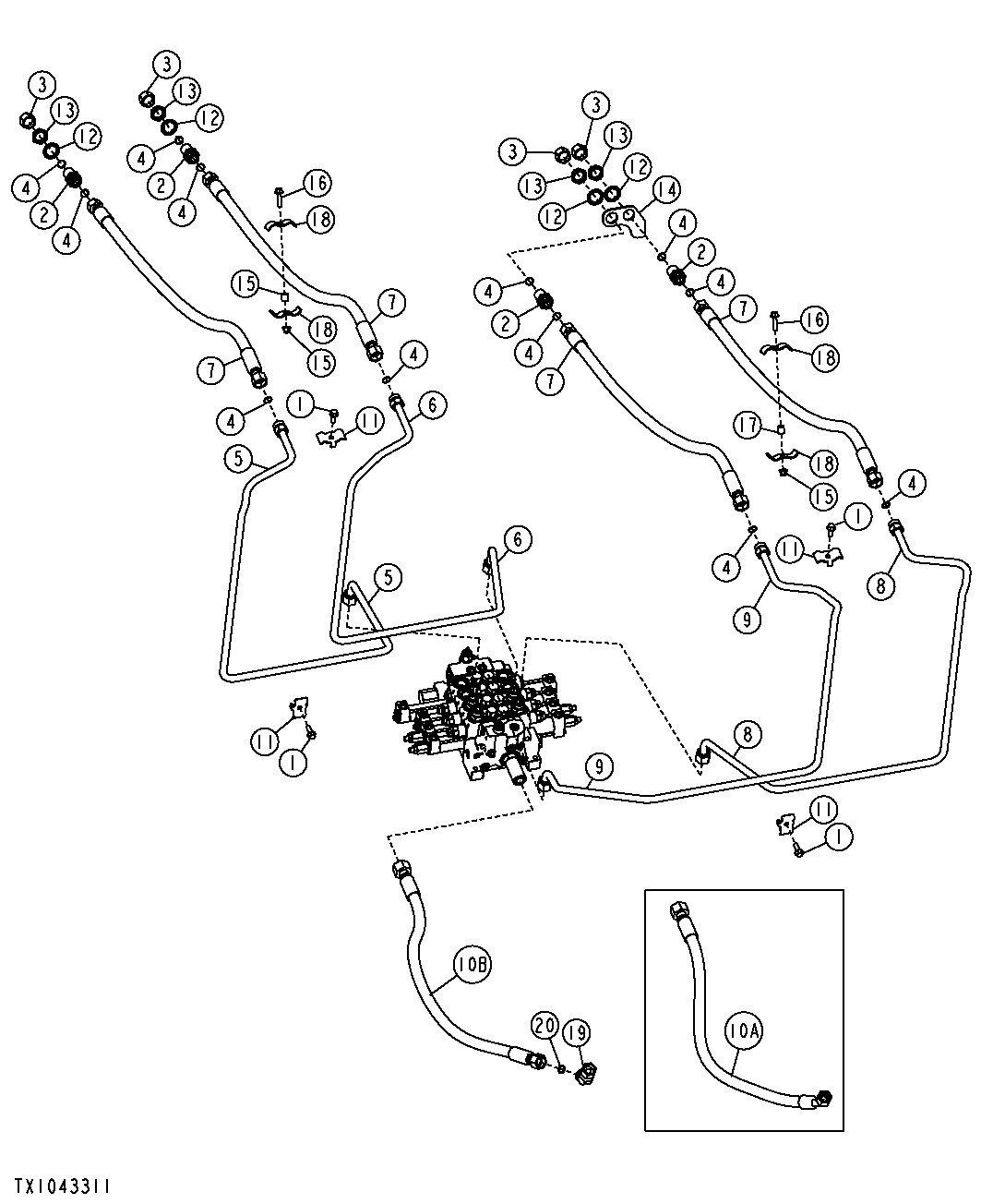

Third and Fourth Function Auxiliary Hydraulic Lines (Powerllel™)
