Pin Disconnect Hydraulic Lines (Powerllel™)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7400	3	Lock Nut	M10
2	19M7812	2	Screw	M10 X 100
3	19M7786	3	Screw	M10 X 30
4	19M7804	1	Screw	M10 X 40
5	24M7296	1	Washer	10.500 X 30 X 2.500 mm
6	38H1416	2	Fitting	-
6	38H1415	2	Fitting	-
7	38H1173	2	Adapter Fitting	-
8	AT315926	1	Oil Line	-
8	AT336731	1	Oil Line	-
9	AT315927	1	Oil Line	-
9	AT336732	1	Oil Line	-
10	AT315831	1	Oil Line	-
10	AT336727	1	Oil Line	-
11	AT315832	1	Oil Line	-
11	AT336728	1	Oil Line	-
12	AT316050	2	Hydraulic Hose	Fabricate
12	AT336769	2	Hydraulic Hose	Fabricate
13	38H1004	2	Elbow Fitting	-
14	T159950	4	Clamp	-
15	T159956	1	Clamp	-
16	T77613	5	O-Ring	-
16	T77613	11	O-Ring	-
17	T77857	8	O-Ring	-
17	T77857	2	O-Ring	-
18	R26448	3	O-Ring	-
19	38H1023	1	Tee Fitting	-
20	38H1160	1	Adapter Fitting	-
21	AT167553	2	Hydraulic Hose	-
22	AT225530	1	Hyd Actuated Control Valve	(COMPONENTS LISTED ON ANOTHER PAGE)
23	-	1	Part 31	( <service-part>AT314615</service-part> NLA) (WHOLE GOODS)
23	AT337312	1	Field Installation Kit	NLA Order Components Whole Goods

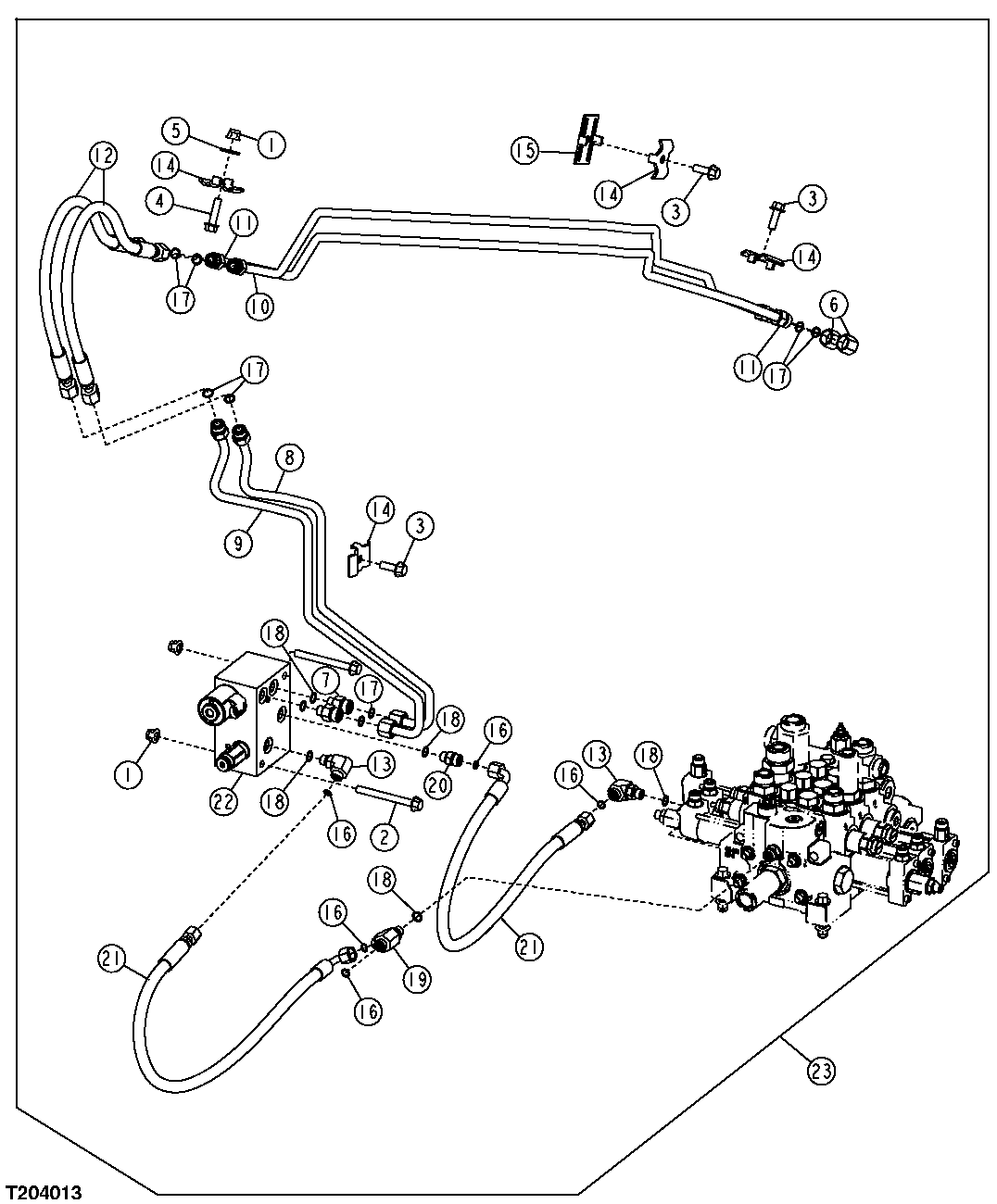

Pin Disconnect Hydraulic Lines (Powerllel™)

Нет текстового описания
