Ride Control and Hydraulic Hoses ( - 568712)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT207010	1	Hydraulic Hose	-
2	AT206711	1	Oil Line	NLA
3	T76938	4	O-Ring	-
4	T77932	5	O-Ring	-
5	R28782	2	O-Ring	-
6	38H1044	1	Elbow Fitting	-
7	T77814	1	O-Ring	-
8	AT206712	1	Oil Line	NLA
9	AT207030	1	Hydraulic Hose	-
10	AT208551	1	Hydraulic Hose	-
11	38H1006	2	Elbow Fitting	-
12	AT223648	1	Fitting	(INCLUDES R28782)
13	R26906	4	O-Ring	-
14	38H1174	1	Adapter Fitting	-
15	R26906	2	O-Ring	-
16	T77857	2	O-Ring	-
17	19M7944	2	Screw	M10 X 120
18	38H1162	1	Adapter Fitting	-
19	T152743	1	Nut	(ELECTRICAL COIL), (SERVICED IN AT209894)
19	R63548	1	O-Ring	(BETWEEN HOUSING AND BODY), (SERVICED IN AT209894)
19	R30903	2	O-Ring	-
19	R28782	4	O-Ring	-
19	R26448	6	O-Ring	-
19	AT209598	1	Electrical Coil	(SERVICED IN AT209898)
19	AT317990	1	Seal Kit	(FOR MACHINES WITH WATER GLYCOL HYDRAULIC FLUID)
19	AT209898	1	Solenoid Valve	-
19	AT147166	1	Seal Kit	(USE WITH AT209896 ) (SUB FOR AT209897)
19	AT209896	1	Check Valve	-
19	AT209895	1	Electrical Coil	(SERVICED IN AT209894)
19	-	1	Part 19	( AT209067 NLA), (SUB AT220432)
19	AT209899	1	Seal Kit	(USE WITH AT209898)
20	AT223537	1	Pressure Switch	(SUB FOR AT162096)
21	R26287	1	O-Ring	-
22	T158047	1	Adapter Fitting	(SUB FOR T167861)
23	R26448	1	O-Ring	-
24	T180944	1	Label	(SUB FOR T146431)
25	AT228189	1	Hydraulic Hose	(SUB FOR AT207011 AND AT167557)
26	38H1447	1	Adapter Fitting	-
27	R29936	1	O-Ring	-
28	AT383880	1	Accumulator Kit	INCLUDES T180944, SUB FOR AT158971
29	14M7400	6	Lock Nut	M10
30	24M7296	4	Washer	10.500 X 30 X 2.500 mm
31	T146490	2	Clamp	-
32	19M7804	4	Screw	M10 X 40
33	38H1031	1	Tee Fitting	-
34	AT208923	1	Control	Whole Goods

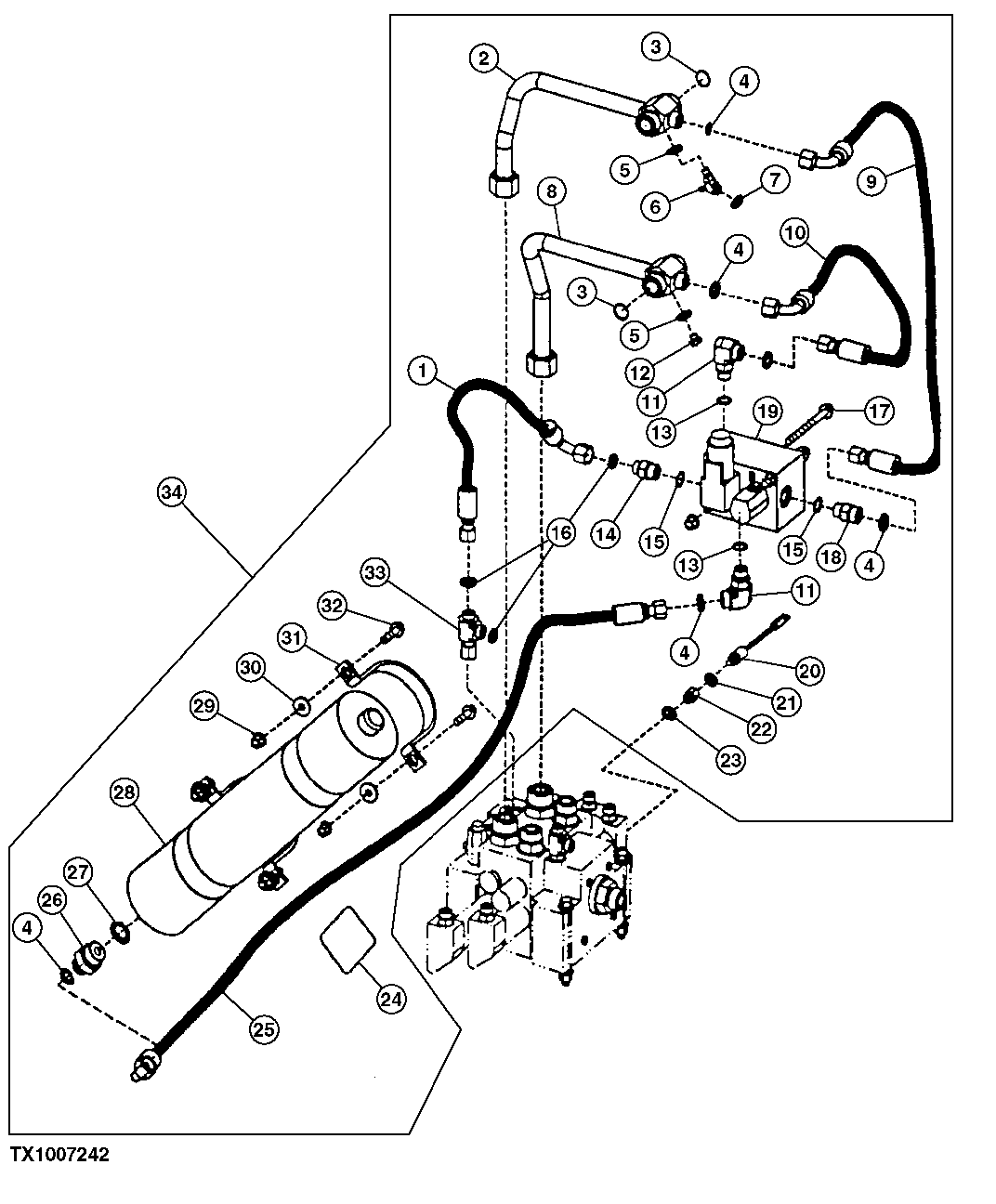

Ride Control and Hydraulic Hoses ( - 568712)
