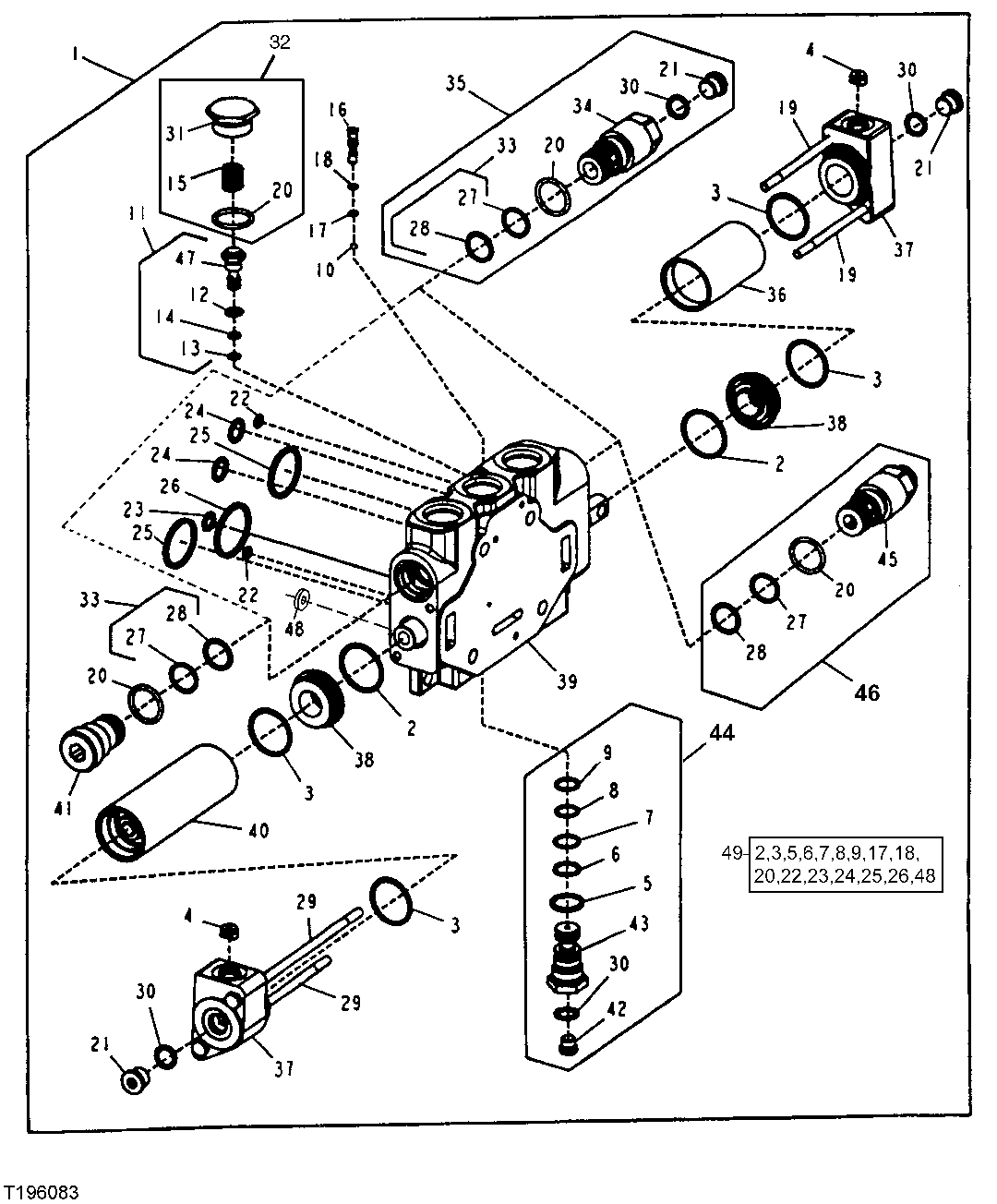

BOOM, BUCKET AND AUXILIARY SECTION

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT221094	1	Spool Valve	(BUCKET), (SUB FOR AT209753)
1	AT209754	1	Spool Valve	(BOOM)
1	AT222964	1	Spool Valve	(SUB FOR AT209809) (BUCKET)(FOR TOOL CARRIER)
1	AT209752	1	Spool Valve	(AUXILIARY)
2	-	2	Part 5	(E) (SUB AT179941)
3	-	4	Part 6	(E) (SUB AT179941)
4	T169955	2	Orifice	(BUCKET AND AUXILIARY SECTIONS) (DON'T USE IN BOOM SECTION WHEN USING AT220388 CHECK VALVES IN PLACE OF 38H1160 IN PILOT PORTS)
5	-	1	Part 8	(C) (E)
6	-	1	Part 9	(C) (E)
7	-	1	Part 10	(C) (E)
8	-	1	Part 11	(C) (E)
9	-	1	Part 12	(C) (E)
10	A4742R	1	Ball	-
11	AT220828	1	Compensator	(BUCKET SECTION) (FOR TOOL CARRIER)
11	AT220826	1	Compensator	(BOOM AND AUXILIARY SECTION)
12	-	1	Part 16	-
13	-	1	Part 17	-
14	-	1	Part 18	-
15	T176531	1	Spring	(A)
16	T172562	1	Check Valve	-
17	-	1	Part 21	(E) (SUB AT179941)
18	-	1	Part 22	(E) (SUB AT179941)
19	19H3724	2	Screw	1/4" X 4-1/2", (BOOM)
19	19H3724	4	Screw	1/4" X 4-1/2", (BUCKET AND AUXILIARY)
20	U12547	2	O-Ring	(A) (B) (D) (E)
21	-	3	Part 26	(B) (BOOM)
21	-	2	Part 27	(B) (BUCKET AND AUXILIARY)
22	U40962	2	O-Ring	(E)
23	-	1	Part 29	(E) (SUB AT179941)
24	AT216573	2	O-Ring	(E)
25	T103465	2	Seal	(E)
26	AT216571	1	O-Ring	(E)
27	T154187	2	Back-Up Ring	(B) (D)
28	AT124574	2	O-Ring	(B) (D)
29	T171072	2	Cap Screw	(BOOM SECTION)
30	R26287	4	O-Ring	(B) (C) (BOOM)
30	R26287	3	O-Ring	(B) (C) (BUCKET AND AUXILIARY)
31	T176532	1	Plug	(A)
32	AT220830	1	Hose Kit	(INCLUDES PARTS MARKED (A)), (SUB FOR AT216592)
33	AT170991	2	O-Ring Kit	(BOOM SECTION) (INCLUDES U12547 O-RING)
34	-	1	Part 41	(B) (BOOM SECTION)
35	AT209750	2	Pressure Relief Valve	(BUCKET AND AUXILIARY SECTION) (INCLUDES PARTS MARKED (B))
35	AT211547	1	Pressure Relief Valve	(TOOL CARRIER BUCKET SECTION) (INCLUDES PARTS MARKED (B))
35	AT209750	1	Pressure Relief Valve	(TOOL CARRIER BUCKET SECTION) (INCLUDES PARTS MARKED (B))
36	-	1	Part 45	-
37	-	2	Part 46	-
38	-	2	Part 47	-
39	-	1	Part 48	(SUB AT221094, AT209754, AT209752 OR AT222964)
40	-	1	Part 49	(BOOM)
41	-	1	Part 50	(BOOM)
42	AT262284	1	Fitting Plug	(C)
43	-	1	Part 52	(C) (SUB AT209758)
44	AT209758	1	Check Valve	(INCLUDES PARTS MARKED (C))
45	-	1	Part 54	(D) (SUB AT209750)(BUCKET SECTION)
46	AT221506	1	Hyd Actuated Control Valve	(BOOM SECTION) (INCLUDES PARTS MARKED (D)), (SUB FOR AT209762)
46	AT211547	1	Pressure Relief Valve	(INCLUDES PARTS MARKED (D)), (TOOL CARRIER BUCKET SECTION)
46	AT221506	1	Hyd Actuated Control Valve	(INCLUDES PARTS MARKED (D)), (TOOL CARRIER BUCKET SETION)
47	-	1	Part 58	-
48	-	4	Part 59	(E) (ONE SHIM ON EACH TIE-BOLT)
49	AT179941	1	Seal Kit	(INCLUDES PARTS MARKED (E)), (SEAL FOR ONE SECTION JOINT)
