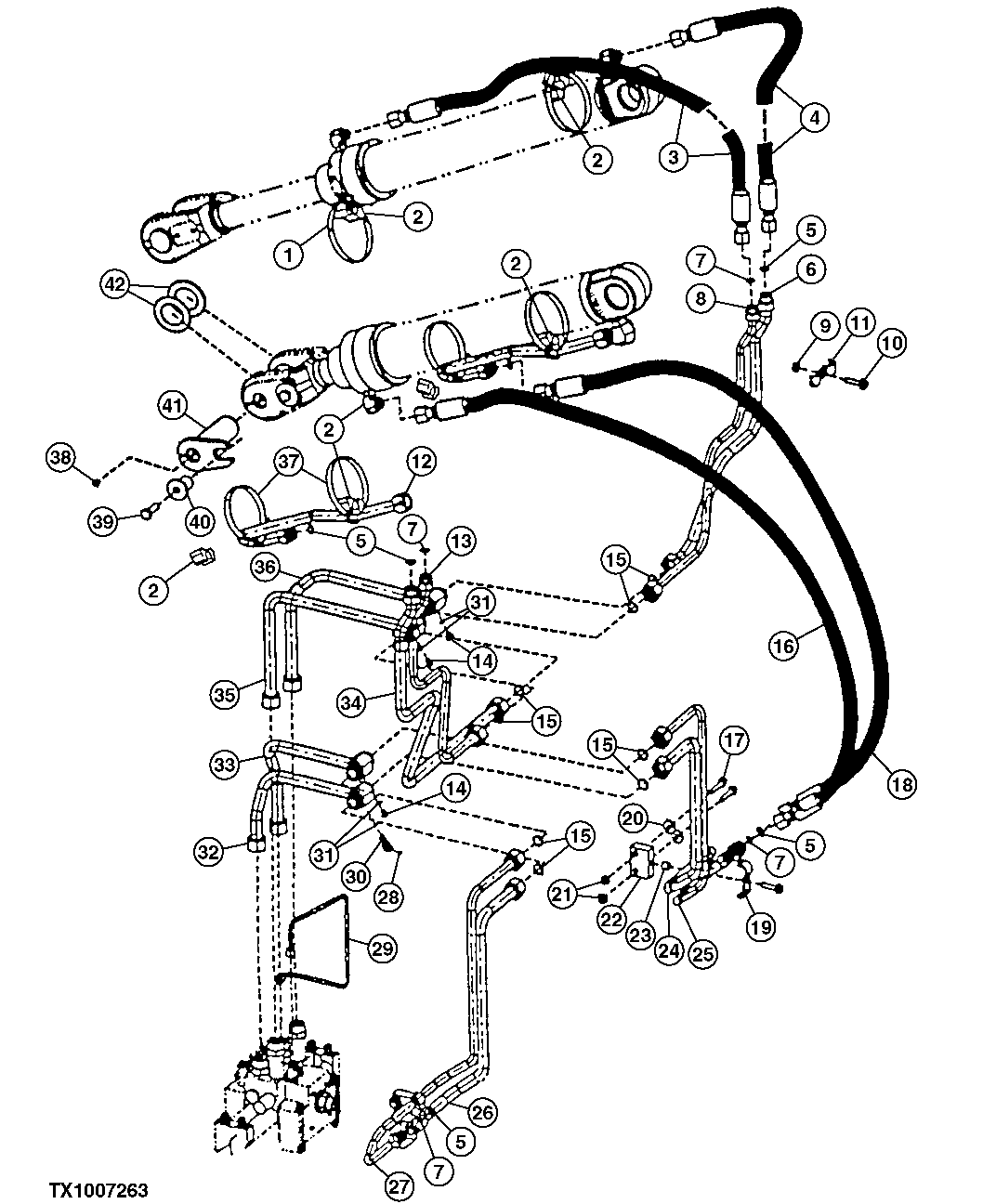

Boom and Bucket Cylinder Hydraulics (For Use With Tool Carrier or Log Loader) ( - 568711)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TY22492	4	Hose Clamp	-
2	T105773	6	Guide	-
3	AT306599	2	Hydraulic Hose	(SUB FOR AT210665 OR AT227540)
4	AT227539	2	Hydraulic Hose	(SUB FOR AT224228)
5	T77858	6	O-Ring	-
6	AT209325	1	Oil Line	NLA
7	T77932	4	O-Ring	-
8	AT209324	1	Oil Line	NLA
9	T13976	2	Bushing	-
10	19M7805	4	Screw	M10 X 45
11	T176474	2	Clamp	-
12	AT102501	2	Oil Line	-
13	AT209323	1	Oil Line	-
14	AT223648	1	Fitting	(INCLUDES R28782)
15	T76938	8	O-Ring	-
16	AT306597	2	Hydraulic Hose	(SUB FOR AT210682 OR AT208342 OR AT227535)
17	19M8528	4	Screw	M10 X 55
18	AT227538	2	Hydraulic Hose	(SUB FOR AT210681)
19	T167921	2	Clamp	-
20	T148712	4	Washer	-
21	14M7296	4	Flange Nut	M10
22	T127230	2	Support	-
23	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
24	AT206763	1	Oil Line	-
25	AT206760	1	Oil Line	NLA
26	AT206762	1	Oil Line	NLA
27	AT206759	1	Oil Line	NLA
28	T77814	1	O-Ring	-
29	AT167553	1	Hydraulic Hose	(SUB FOR AT206899)
30	38H1044	1	Elbow Fitting	-
31	R28782	4	O-Ring	-
32	AT207268	1	Oil Line	NLA
33	AT207269	1	Oil Line	NLA
34	AT209322	1	Oil Line	NLA
35	AT207825	1	Oil Line	NLA
36	AT207826	1	Oil Line	NLA
37	RE40281	2	Clamp	-
38	JD7759	2	Lubrication Fitting	-
39	19M7489	2	Cap Screw	M16 X 45
40	T176064	2	Bushing	-
41	AT207052	2	Pin	-
42	T102171	1	Washer	(SUB FOR T54474)
