Two or Three Lever Controller Valve Section (For Use With Tool Carrier or Log Loader)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT161677	1	Knob	BOOM (WITH KICKDOWN SWITCH) (NOT ILLUSTRATED)
1	4117704	1	Knob	(SUB FOR TH100591)BUCKET AND AUXILIARY SECTION
2	T145391	1	Cover	-
3	T126189	1	Boot	-
4	H77698	1	Tie Band	-
5	T103100	2	Set Screw	-
6	T132295	1	Lever	BUCKET (TWO-LEVER) (LONG BENT)
6	T132295	2	Lever	BUCKET AND AUXILIARY (THREE LEVER) (LONG BENT)
6	T132294	1	Lever	BOOM (TWO AND THREE LEVER)
7	T137987	1	Link	-
8	T137989	1	Solid Shim	BOOM PORT A AND BUCKET PORT A
9	25H50	1	Groove Pin	5/32" X 3/4"
10	T138047	5	Spring	MAIN, AUXILIARY (SINGLE AND THREE LEVER) (A AND B PORTS OF BOOM SECTION) (A AND B PORTS OF AUXILIARY SECTION) (A PORT OF BUCKET SECTION)
10	T147032	1	Spring	B PORT OF BUCKET SECTION
11	T102955	2	Retainer	-
12	-	2	Part 16	-
13	T102958	2	Plunger	-
14	T131617	2	Ring	(K)
15	-	2	Part 19	(K) ( T131619 NO LONGER AVAILABLE)
16	-	2	Part 20	(K) ( T131616 NO LONGER AVAILABLE)
17	T102961	2	Dowel Pin	-
18	M43940	2	Snap Ring	-
19	-	1	Part 23	(SUB AT159953)BOOM SECTION
19	-	1	Part 24	(SUB AT161601)BUCKET SECTION
19	-	1	Part 25	(SUB AT159954)AUXILIARY
20	T103105	1	Pin Fastener	-
21	T131608	1	Spring	B PORT ON BOOM
21	T131602	3	Spring	B PORT ON BUCKET, A AND B PORT ON AUXILIARY
22	T102952	2	Retainer	-
23	T122076	1	O-Ring	(K) (SUB FOR T100097)
24	F3353R	1	O-Ring	(K)
25	-	1	Part 32	(SUB AT161601)BUCKET SECTION
25	-	1	Part 33	(SUB AT159953)BOOM SECTION
25	-	1	Part 34	(SUB AT159954)AUXILIARY
26	12M7006	4	Lock Washer	6 mm
27	19M7966	4	Screw	M6 X 25
28	T22827	2	O-Ring	(K)
29	T103097	2	Cap	-
30	19H3640	6	Screw	0.138" X 3/4"
31	AT151089	1	Electrical Coil	BUCKET SECTION
31	AT151089	2	Electrical Coil	BOOM SECTION
31	-	1	Part 42	(NOT REQUIRED AUXILIARY SECTION)
32	T102974	2	Disk	BUCKET SECTION
32	T102974	2	Disk	BOOM SECTION
32	-	1	Part 45	(NOT REQUIRED AUXILIARY SECTION)
33	T102975	2	Spring	BOOM SECTION
33	-	1	Part 49	(NOT REQUIRED AUXILIARY SECTION)
33	T131610	1	Spring	BUCKET SECTION (PORT B)
33	T102975	1	Spring	BUCKET SECTION (PORT A)
34	T103107	1	Retainer	BUCKET SECTION
34	T103107	2	Retainer	BOOM SECTION
34	-	1	Part 52	(NOT REQUIRED AUXILIARY SECTION)
35	T103096	2	Pin	BUCKET SECTION
35	T103096	2	Pin	BOOM SECTION
35	-	1	Part 55	(NOT REQUIRED AUXILIARY SECTION)
36	T103095	2	Plunger	BUCKET SECTION
36	-	1	Part 58	(NOT REQUIRED AUXILIARY SECTION)
36	T103095	2	Plunger	BOOM SECTION
37	T131611	1	Spacer	BUCKET SECTION (PORT B)
38	T137988	1	Washer	-
39	14H774	2	Nut	3/8"
40	T141501	1	Lever	DOUBLE BENT (AUXILIARY STAND ALONE)
41	19H3177	4	Screw	0.164" X 0.620"
42	T145392	1	Plate	-
43	T103092	1	Shim	.004" THICK
43	T103093	1	Shim	.007" THICK
43	T103094	1	Shim	.015" THICK
44	21H971	1	SCREW	0.164" X 5/16"
45	-	1	Part 69	(U41534 NO LONGER AVAIABLE)
46	AT159954	1	Valve Stack	AUXILIARY (SINGLE AND 3 LEVER)
46	AT161601	1	Valve Stack	BUCKET (TWO AND THREE LEVER)
46	AT159953	1	Valve Stack	BOOM (TWO AND THREE LEVER)
..	AT104041	1	Seal Kit	INCLUDES ALL (K) PARTS (ALSO ORDER AT115876 TUBE OF GREASE)

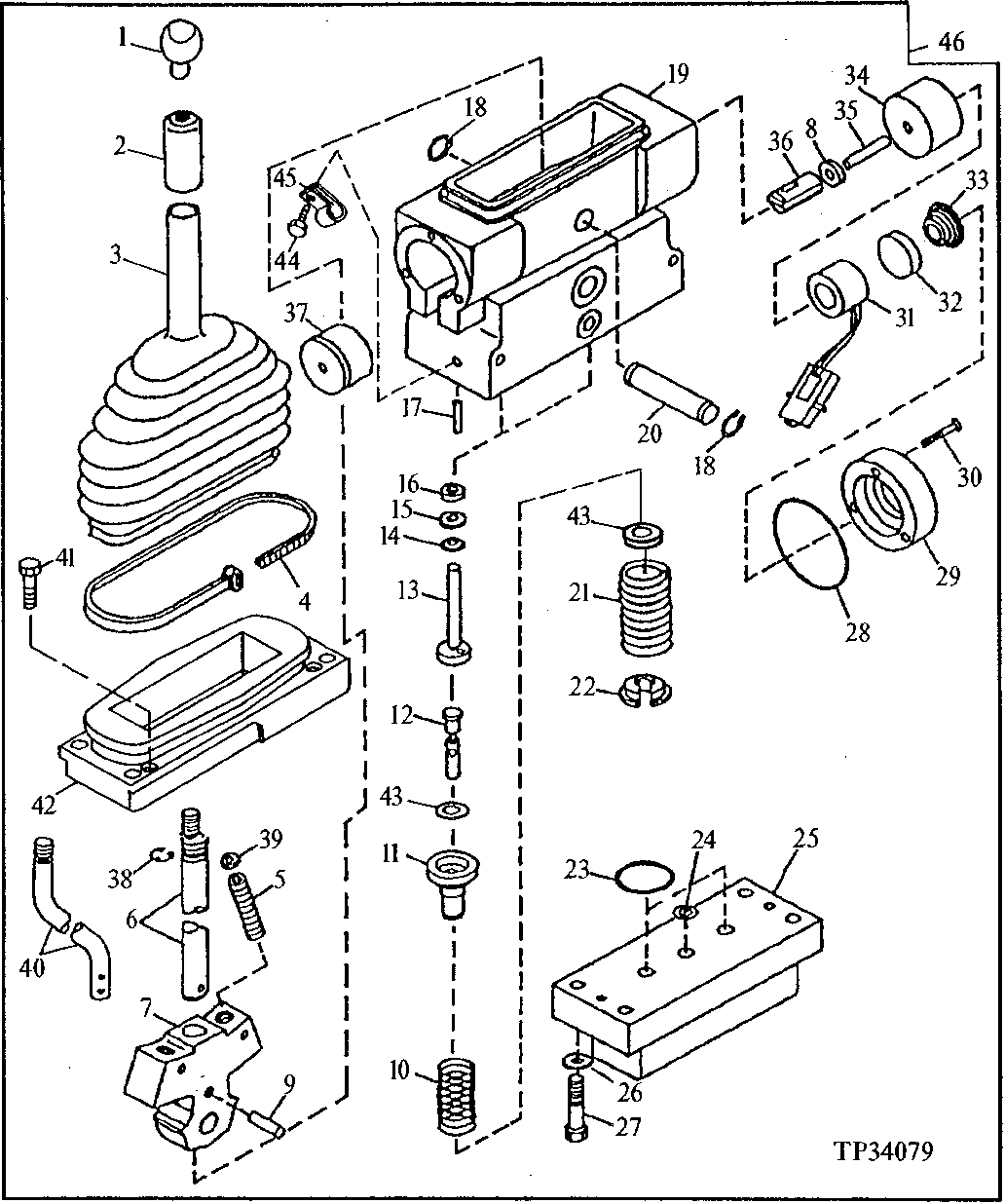

Two or Three Lever Controller Valve Section (For Use With Tool Carrier or Log Loader)
