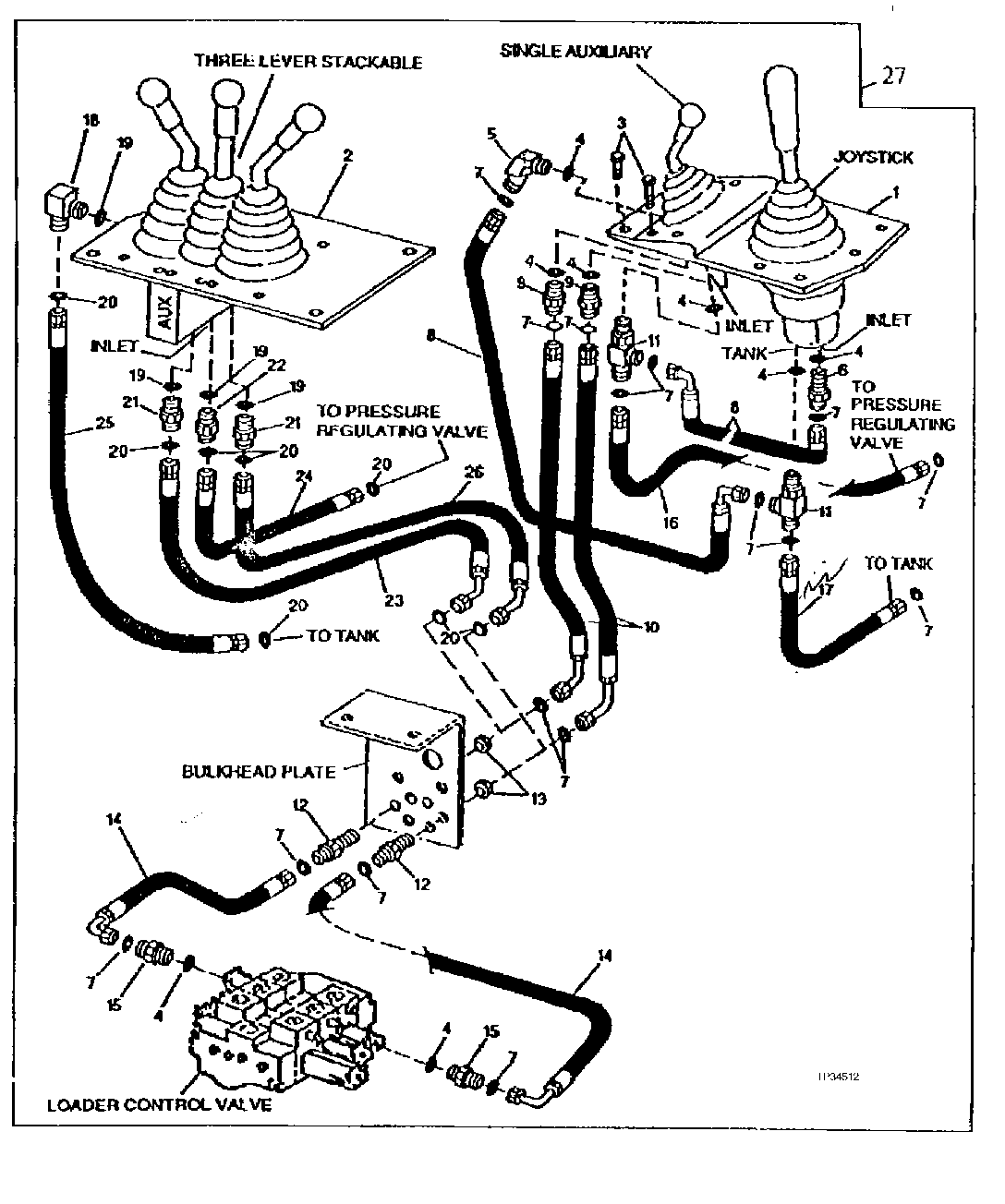

THIRD FUNCTION REMOTE HYDRAULICS ( - 552384)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT149547	1	Plate	(USE WITH SINGLE LEVER JOYSTICK AND SINGLE LEVER AUXILIARY)
2	AT150685	1	Plate	(USE WITH THREE-LEVER STACKABLE)
3	21M7285	12	Screw	M6 X 12, (USE WITH SINGLE LEVER JOYSTICK AND SINGLE LEVER AUXILIARY)
3	24M7054	12	Washer	6.400 X 12 X 1.600 mm, (USE WITH SINGLE-LEVER JOYSTICK AND SINGLE-LEVER AUXILIARY)
3	21M7285	16	Screw	M6 X 12, (USE WITH THREE-LEVER STACKABLE)
3	24M7054	16	Washer	6.400 X 12 X 1.600 mm, (USE WITH THREE-LEVER STACKABLE)
4	R26448	8	O-Ring	-
5	38H1045	1	Elbow Fitting	-
6	38H1212	1	Adapter Fitting	-
7	T77613	16	O-Ring	-
8	AT103379	2	Hydraulic Hose	17.4752" X 655 mm (25-3/4") X 17.4752"
9	38H1160	2	Adapter Fitting	-
10	AT103378	2	Hydraulic Hose	17.4752" X 1454 mm (57-1/4") X 17.4752"
11	38H1023	2	Tee Fitting	-
12	38H1285	2	Union Fitting	-
13	T81029	2	Nut	-
14	AT102553	2	Hydraulic Hose	17.4752" X 1370 mm (54") X 17.4752", (THIRD-FUNCTION SECTION)
15	38H1160	2	Adapter Fitting	-
16	AT102429	1	Hydraulic Hose	17.4752" X 955 mm (37-1/2") X 17.4752"
17	AT102430	1	Hydraulic Hose	17.4752" X 1415 mm (55-3/4") X 17.4752"
18	38H1004	1	Elbow Fitting	-
19	R26448	4	O-Ring	-
20	T77613	8	O-Ring	-
21	38H1160	2	Adapter Fitting	-
22	38H1212	1	Adapter Fitting	-
23	AT102413	1	Hydraulic Hose	17.4752" X 1344 mm (53") X 17.4752"
24	AT102429	1	Hydraulic Hose	17.4752" X 955 mm (37-1/2") X 17.4752"
25	AT102430	1	Hydraulic Hose	17.4752" X 1415 mm (55-3/4") X 17.4752"
26	AT103378	1	Hydraulic Hose	17.4752" X 1454 mm (57-1/4") X 17.4752"
27	-	1	Part 30	( AT149913 NO LONGER AVAILABLE) (THIRD FUNCTION SINGLE LEVER) (DOES NOT INCLUDE KEYS 2, 16, 17, 23, 24 AND 25) (ALSO INCLUDES AUXILIARY SECTION VALVE, OIL LINES, LABELS, CLAMPS, O-RINGS, FITTINGS, STUD ASSEMBLY AND MISCELLANEOUS HARDWARE)
27	-	1	Part 31	( AT149914 NO LONGER AVAILABLE) (THIRD FUNCTION TWO LEVER)(DOES NOT INCLUDE KEYS 2, 16, 17, 24 AND 25) (ALSO INCLUDES AUXILIARY SECTION VALVE, OIL LINES, LABELS, CLAMPS, O-RINGS, FITTINGS, STUD ASSEMBLY AND MISCELLANEOUS HARDWARE)
27	-	1	Part 32	( AT149923 NO LONGER AVAILABLE) (THIRD FUNCTION SINGLE LEVER) (DOES NOT INCLUDE KEYS, 2, 16, 17, 23, 24 AND 25) (ALSO INCLUDES AUXILIARY SECTION VALVE, OIL LINES, LABELS, CLAMPS, O-RINGS, FITTINGS, STUD ASSEMBLY AND MISCELLANEOUS HARDWARE)
27	-	1	Part 33	( AT149924 NO LONGER AVAILABLE) (THIRD FUNCTION TWO LEVER)(DOES NOT INCLUDE KEYS 2, 16, 17, 24 AND 25) (ALSO INCLUDES AUXILIARY SECTION VALVE, OIL LINES, LABELS, CLAMPS, O-RINGS, FITTINGS STUD ASSEMBLY AND MISECLLANEOUS HARDWARE)
27	-	1	Part 34	( AT161641 NO LONGER AVAILABLE) (USE WITH TOOL CARRIER) (THIRD FUNCTION SINGLE LEVER)(DOES NOT INCLUDE KEYS 2, 16, 17, 23, 2 AND 25)(ALSO INCLUDES AUXILIARY SECTION VALVE, OIL LINES, LABELS, CLAMPS, O-RINGS, FITTINGS, STUD ASSEMBLY AND MISCELLANEOUS HARDWARE)
27	-	1	Part 35	( AT161644 NO LONGER AVAILABLE) (USE WITH TOOL CARRIER)(THIRD FUNCTION TWO LEVER) (DOES NOT INCLUDE KEYS, 2, 16, 17, 24 AND 25) (ALSO INCLUDES AUXILIARY SECTION VALVE, OIL LINES, LABELS, CLAMPS, O-RINGS, FITTINGS, STUD ASSEMBLY AND MISCELLANEOUS HARDWARE)

THIRD FUNCTION REMOTE HYDRAULICS ( - 552384)
