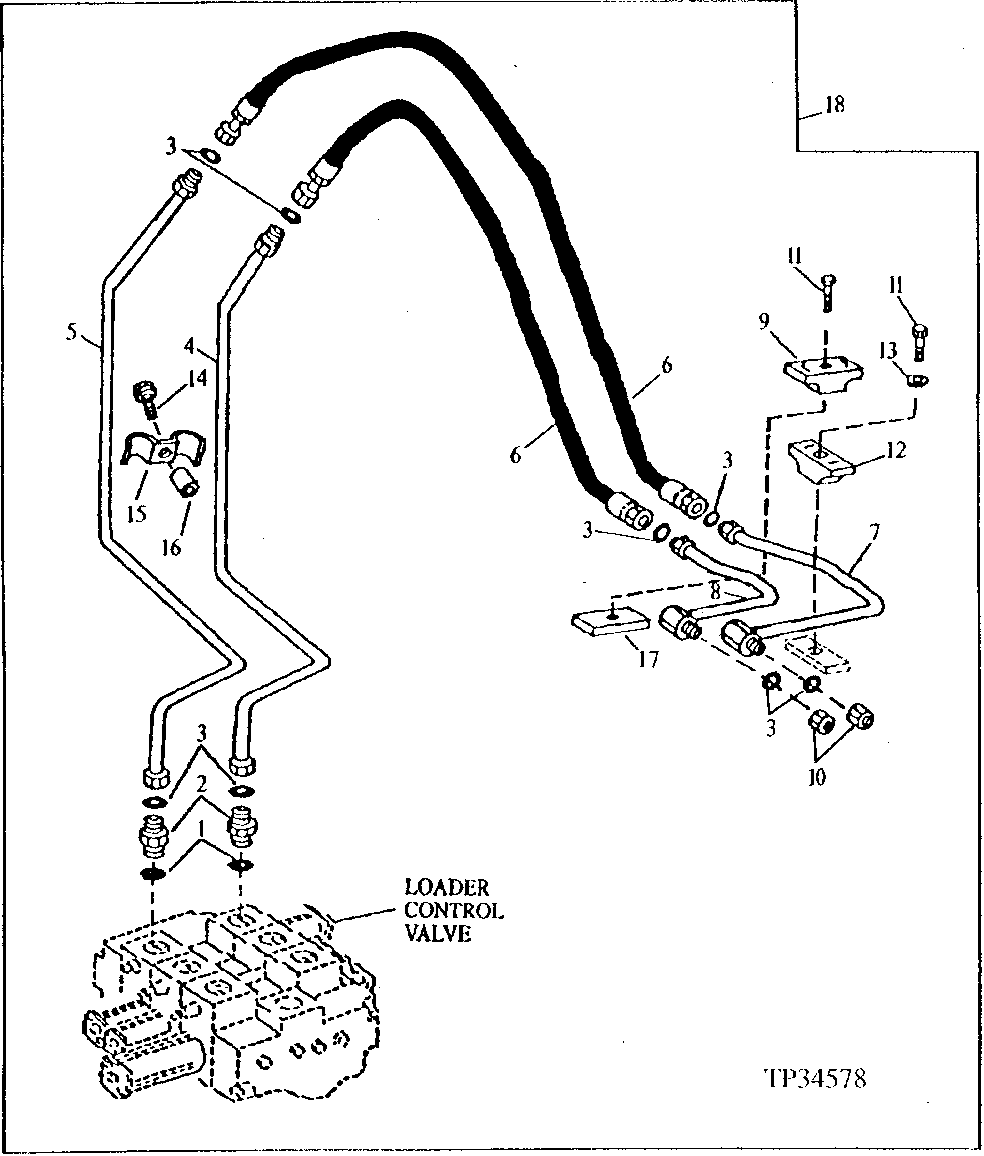

Third Function Auxiliary Hydraulics (For Use With Tool Carrier or Log Loader)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R29936	2	O-Ring	-
2	38H1164	2	Adapter Fitting	-
3	T76938	8	O-Ring	-
4	AT165094	1	Oil Line	RIGHT
5	AT165095	1	Oil Line	LEFT
6	AT103088	2	Hydraulic Hose	-
7	AT158830	1	Oil Line	RIGHT
8	AT158829	1	Oil Line	LEFT
9	T123721	1	Clamp	-
10	38H1419	2	Fitting	-
11	19M8292	2	Screw	M10 X 50
12	T68500	1	CLAMP	-
13	24M7296	1	Washer	10.500 X 30 X 2.500 mm
14	19M8528	1	Screw	M10 X 55
15	T31056	1	Clamp	-
16	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
17	T122974	1	Bar	-
18	-	1	Part 18	( AT161641 NO LONGER AVAILABLE) (THIRD FUNCTION SINGLE LEVER) (ALSO INCLUDES AUXILIARY SECTION VALVE, HYDRAULIC HOSES, LABELS, CLAMPS, O-RINGS, FITTINGS, STUD ASSEMBLY AND MISCELLANEOUS HARDWARE)
18	-	1	Part 19	( AT161644 NO LONGER AVAILABLE) (THIRD FUNCTION TWO LEVER) (ALSO INCLUDES AUXILIARY SECTION VALVE FUNCTION, HYDRAULIC HOSES, STUDS, LINES, BANDS, O-RINGS, CONTROLLER PLATE, ADAPTERS AND HARDWARE)

Third Function Auxiliary Hydraulics (For Use With Tool Carrier or Log Loader)
