RE44168 Differential Assembly (Differential Lock) (Front)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2964	12	Cap Screw	7/16" X 1-1/8", USE WITH R84993 AND R89118
1	R116064	12	CAP SCREW	11.125 X 28.448 mm (7/16" X 1.120"), SUB FOR R40236 ; USE WITH R84993 AND R89118
1	R116214	12	Screw	USE WITH R116210 AND YZ120646
2	R84993	1	Cover	ALSO ORDER (3) 34H327
2	R116210	1	Cover	-
3	34H327	3	Spring Pin	5/16" X 1"
4	R93623	2	Thrust Washer	SUB FOR R77145
5	R34203	3	Spring	-
6	RE53823	4	Disk	-
7	R34858	3	Clutch Plate	SEPARATOR
8	R34857	1	Clutch Plate	BACKING
9	R58775	1	Piston	-
10	R68615	1	O-Ring	-
11	R68616	1	Washer	-
12	R70532	1	BUSHING	USE WITH R84993 AND R89118
13	R60038	1	Packing	-
14	RE32603	1	Housing	MARKED R89118; SUB FOR RE31198; SUB RE53244 AND RE53704
14	RE53704	1	Housing	MARKED R116208
15	R85225	12	Cap Screw	-
16	R85226	12	Washer	-
17	R59290	1	Bevel Gear	-
18	R59460	4	Thrust Washer	-
19	R70112	4	Thrust Washer	-
20	R70115	104	Needle Roller	-
21	R134726	4	Pinion	ALSO ORDER (26) R70115
22	R70113	4	Thrust Washer	-
23	YZ120471	4	Ring	SUB FOR R70114
24	R70111	2	Pinion Shaft	-
25	R59289	1	Bevel Gear	-
26	400R	1	Ball	-
27	H871R	2	Ball	-
28	RE21029	1	Housing	MARKED R82197; SUB RE53244, RE53704, (12) 19H2563 AND (12) T105740
28	RE53244	1	Housing	MARKED R116209
29	R116211	8	Screw	SUB FOR R52718
30	T105740	12	Washer	USE WITH R84993 AND R89118
31	34H348	1	Spring Pin	3/8" X 1"
32	YZ122371	1	Bearing Cone	(Not Illustrated) SUB FOR APPL JD9601
33	YZ122370	1	Bearing Cup	(Not Illustrated) SUB FOR APPL JD9156
34	YZ122227	1	Bearing Cone	(Not Illustrated) SUB FOR APPL JD9159
35	YZ122231	1	Bearing Cup	(Not Illustrated) SUB FOR APPL JD8210

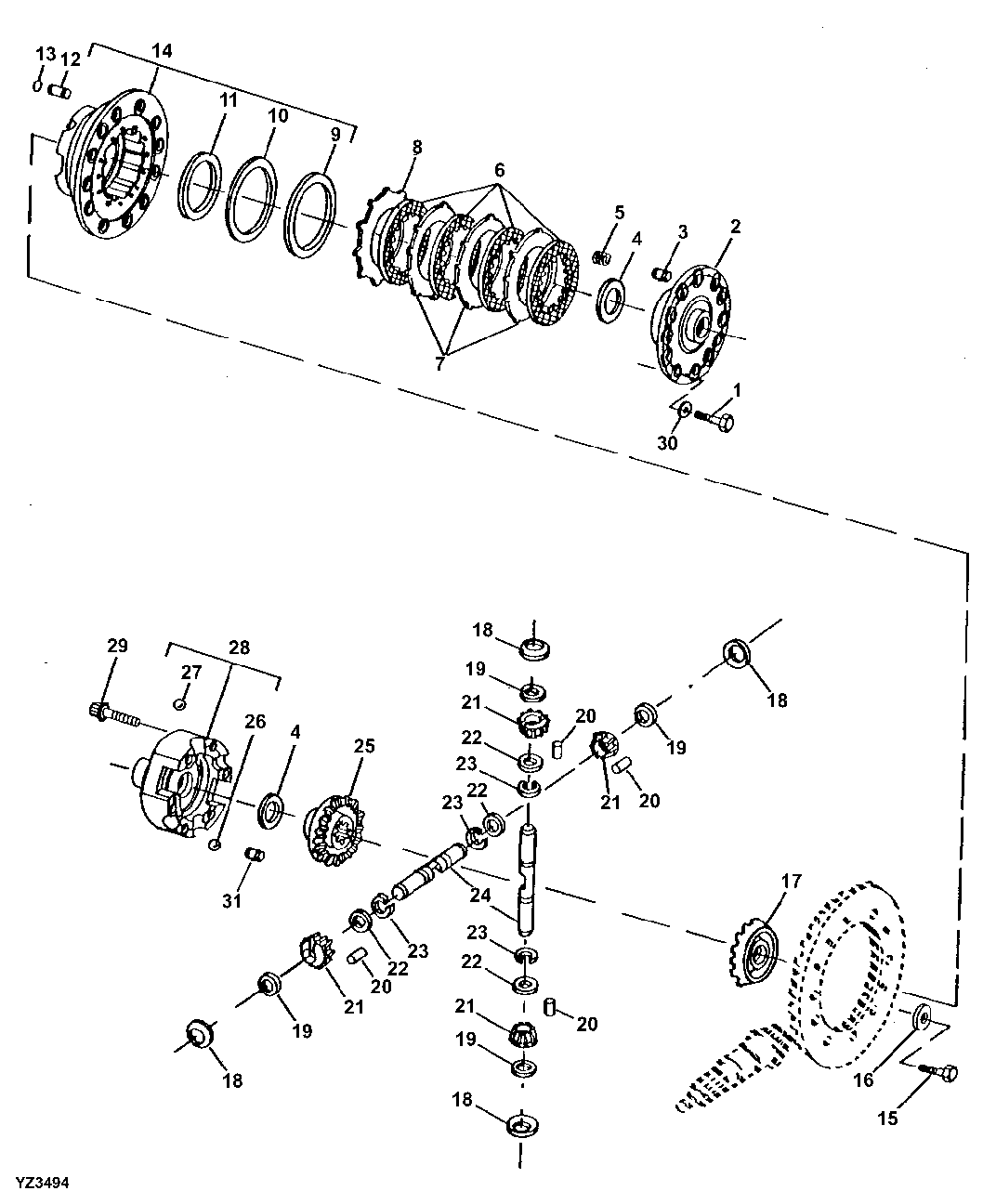

RE44168 Differential Assembly (Differential Lock) (Front)
