Loader Control Valve (2-Spool) (3-Spool) (For Use With Tool Carrier or Log Loader)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7821	3	Screw	M12 X 120, PORT INLET SECTION
2	14H1040	2	Nut	1/2"
3	24H1111	2	Washer	17/32" X 1-1/16" X 0.090"
4	R26448	6	O-Ring	PILOT END CAP PORTS
5	AT103433	1	Hyd Actuated Control Valve	PORT INLET SECTION
6	AT159666	1	Spool Valve	BOOM SECTION TANDEM VALVE
7	14M7401	3	Lock Nut	M12
8	AT161623	1	Spool Valve	BUCKET SECTION
9	-	1	Part 9	AUXILIARY SECTION (THREE-SPOOL ONLY) _ _ _ _ _ _ ( AT159965, USE IF AVAILABLE)
10	T102437	1	Housing	PORT OUTLET SECTION
11	-	1	Part 11	1/2" X 9-1/2", (SUB AT103443 (TWO-SPOOL VALVE))
11	-	1	Part 12	1/2" X 11-1/2", (SUB AT103456 (THREE-SPOOL VALVE))
12	AT103443	4	Stud	(SUB-ASSEMBLY) (TWO-SPOOL VALVE)
12	AT103456	4	Stud	(SUB-ASSEMBLY) (THREE-SPOOL VALVE)
13	AT158693	1	Spool Valve	(TWO-SPOOL TANDEM VALVE)
13	AT158695	1	Spool Valve	(THREE-SPOOL TANDEM VALVE
14	AT175287	4	Check Valve	(SUB FOR AT160574)ORIFICE CHECK

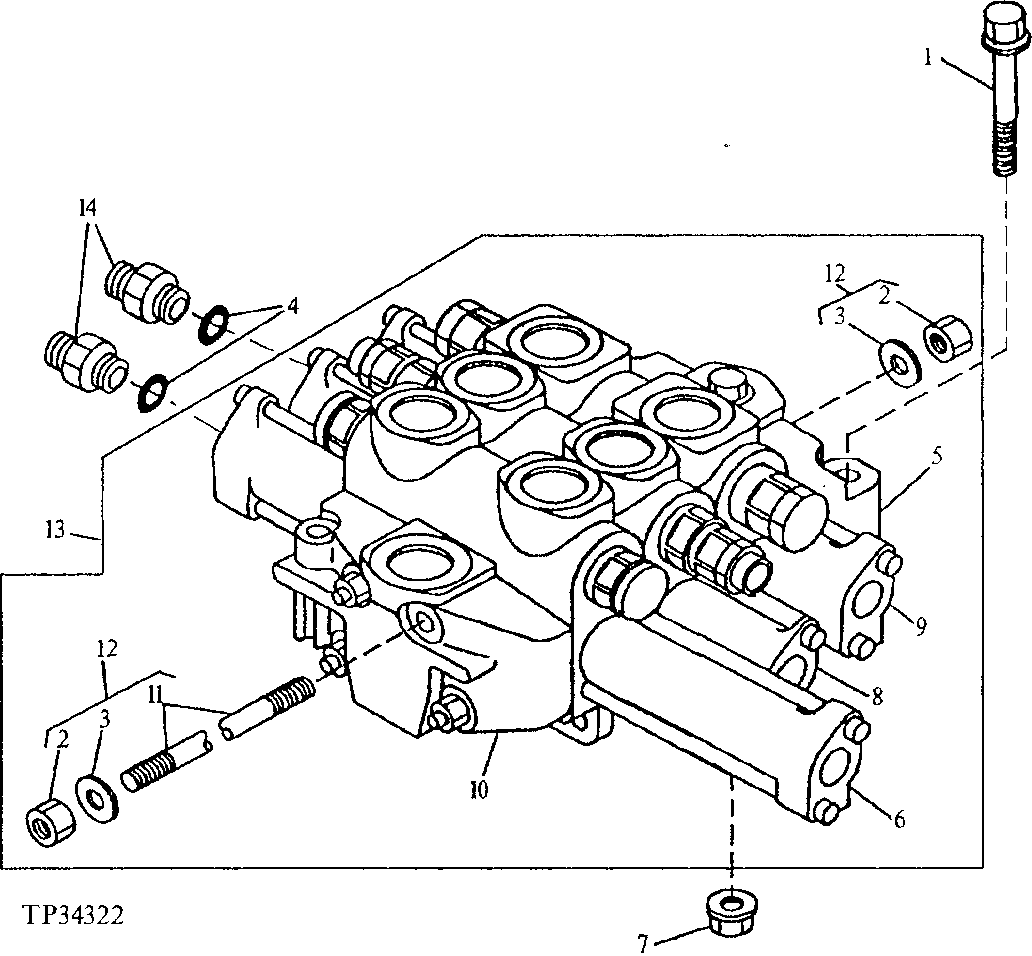

Loader Control Valve (2-Spool) (3-Spool) (For Use With Tool Carrier or Log Loader)
