Input Quill Assembly (Differential Lock) (Oscillating) (544G Rear)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE49486	1	Tapered Roller Bearing	-
2	R35365	1	Shim	-
2	R35366	1	Shim	-
2	R35367	1	Shim	-
3	R26448	2	O-Ring	-
4	R27218	2	Fitting Plug	-
5	R135543	14	Washer	-
5	R135543	15	Washer	-
6	19M7409	14	Cap Screw	M16 X 50
6	19M7409	15	Cap Screw	M16 X 50
7	F3171R	2	O-Ring	-
8	R27175	2	Drain Plug	-
9	R70452	1	Sleeve	-
10	R70453	1	Sleeve	-
11	RE39026	1	Cover	(IF APPLICABLE THE APPROPRIATE DIFF. LOCK OIL LINES ( <service-part >RE52859</service-part>, <service-part>RE52860</service-part>, <service-part >RE52861</service-part> AND <service-part>RE52862</service-part>)) (IF OSCILLATING AXLE, ALSO ORDER <service-part>R121629</service-part > PIVOT PIN &amp; (2) <service-part>19M8634</service-part>) (SUB R116259, R70452 AND R70453 ) (ALSO ORDER R150474, R27175, F3171R, R132574, R112210, (2) R134339, (2) RE63922, 19M7409, R135543, U17409, R76653)(MARKED R100266)
11	R116259	1	Cover	(ALSO ORDER R70452 AND R70453)
12	AT146238	1	Shim	(SUB (3) R51196, (2) R51197, (3) R51198 AND (2) R51199)
13	R56308	1	Spacer	-
14	JD8255	1	Bearing Cup	-
15	JD9078	1	Bearing Cone	-
16	RE45315	1	Seal Kit	-
16	R100500	1	Seal	-
17	A4540R	1	O-Ring	-
18	R48733	1	Washer	-
18	R48734	1	Washer	-
18	R48735	1	Washer	-
19	11M7032	1	Cotter Pin	5 X 50 mm
20	R48776	1	Nut	-
..	UN7189	1	Sealant	(SUB TY16021)

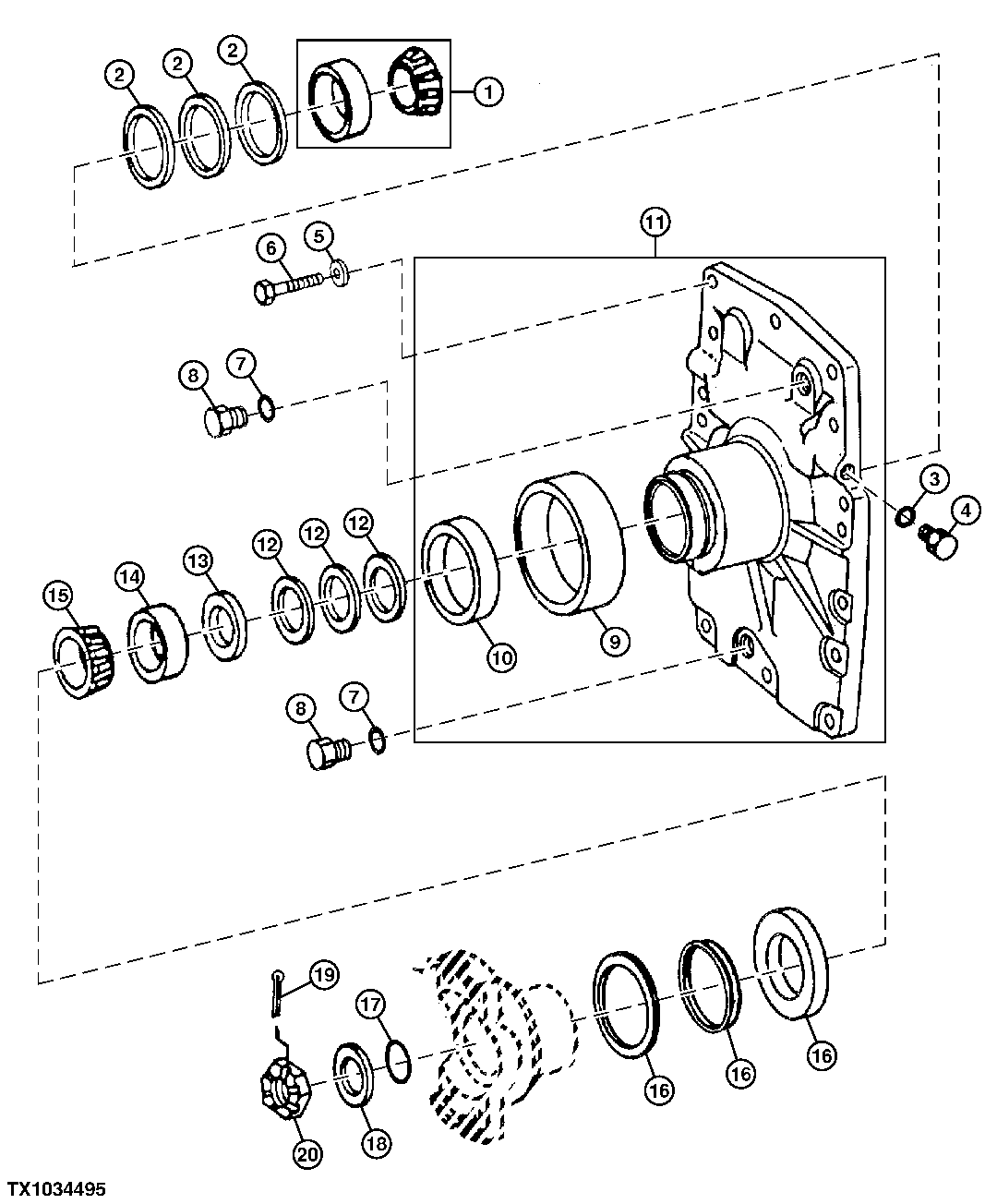

Input Quill Assembly (Differential Lock) (Oscillating) (544G Rear)
