Hydraulic Remote Controller (For Use With Tool Carrier or Log Loader) ( - 563542)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT161677	1	Knob	(WITH KICKDOWN SWITCH)
2	T141746	1	Round Retainer	(USE WITH T141750)
2	T158975	1	Retainer	(USE WITH T158974)
3	T155091	1	Boot	(SUB FOR T141743)
4	R70513	4	Screw	-
5	AT177380	1	Control Kit	TOP (INCLUDES T158976 PLATE AND T49257 BUSHING), (SUB FOR T149238)
6	T141740	1	Spacer	PLATE
7	T141741	1	Plate	COIL, RETAINER
8	T141750	1	Lever	LEVER, WITH WIRE HOLE (USE IF AVAILABLE), (SUB T158974 AND T158975)
8	T158974	1	Lever	(ALSO REQIRES T158975)
9	T131605	4	Pressure Relief Valve	-
10	AT151917	1	Plate	DETENT
11	T141728	1	Plate	PUSH
12	T144268	1	Sleeve	B PORT
12	-	3	Part 14	A, C AND D PORT, (SUB AT168888)
13	-	3	Part 16	(12-V), (SUB AT168888)
14	T141736	1	Ball Joint Retainer	BALL JOINT
15	M41029	1	Snap Ring	-
16	-	4	Part 19	(SUB AT168888)
17	-	4	Part 20	PULL, (SUB AT168888)
18	T102975	3	Spring	(USE WITH ELECTRIC COIL)
18	T146598	1	Spring	(USE WITHOUT ELECTRIC COIL)
19	T141730	1	Ball Stud	BALL
20	T146043	1	Pin Fastener	ANTI-ROTATION
21	12M7006	4	Lock Washer	6 mm
22	19M7966	4	Screw	M6 X 25
23	-	1	Part 27	(SUB AT158690)
23	T102961	2	Dowel Pin	(IN HOUSING)
24	R26448	1	O-Ring	(K1)
25	T102952	4	Retainer	-
26	AT49216	1	Fitting Plug	-
27	T131602	1	Spring	RETURN
28	T145381	4	Spring	MAIN (BORE "B, C AND D") (K3)
28	T145382	1	Spring	MAIN (BORE "A") (K4)
29	T102955	4	Retainer	-
30	-	4	Part 36	(SUB AT158690)
31	T102958	4	Plunger	-
32	T131617	4	Ring	(K1) (K2)
33	T77857	1	O-Ring	(K1)
34	T30424	4	O-RING	(K1)
35	T103092	1	Shim	.004" THICK (K3) (K4)
36	T103093	1	Shim	.007" THICK (K3) (K4)
37	T103094	1	Shim	.015" THICK (K3) (K4)
38	15H560	1	Pipe Plug	1/16"
39	R70513	4	Screw	-
40	T141737	1	Housing	-
41	T131604	1	Cover	HEAT SHRINK WRAP (NO LONGER AVAILABLE)
42	T49257	1	Grommet	-
43	AT168888	3	Detent Kit	-
43	AT168953	1	Piston Kit	(INCLUDES: TOP PLATE, SPACER PLATE AND DETENT PIN) (NOT ILLUSTRATED)
44	AT158690	1	Control	HYDRAULIC REMOTE (ALSO ORDER AT150683 MOUNTING PLATE FOR SINGLE LEVER OR AT149547 MOUNTING PLATE FOR SINGLE LEVER WITH AUXILIARY AND T146659 LABEL) (SUB AT181705 ROBUST CONTROLLER) (ALSO ORDER AT181867 PLATE (JOYSTICK ONLY) OR AT181868 PLATE, (JOYSTICK WITH THIRD FUNCTION)
..	AT151918	1	Seal Kit	INCLUDES ALL (K) PARTS (ALSO ORDER AT115876 TUBE OF GREASE)
..	AT104041	1	Seal Kit	INCLUDES ALL (K) PARTS (ALSO ORDER AT115876 TUBE OF GREASE)

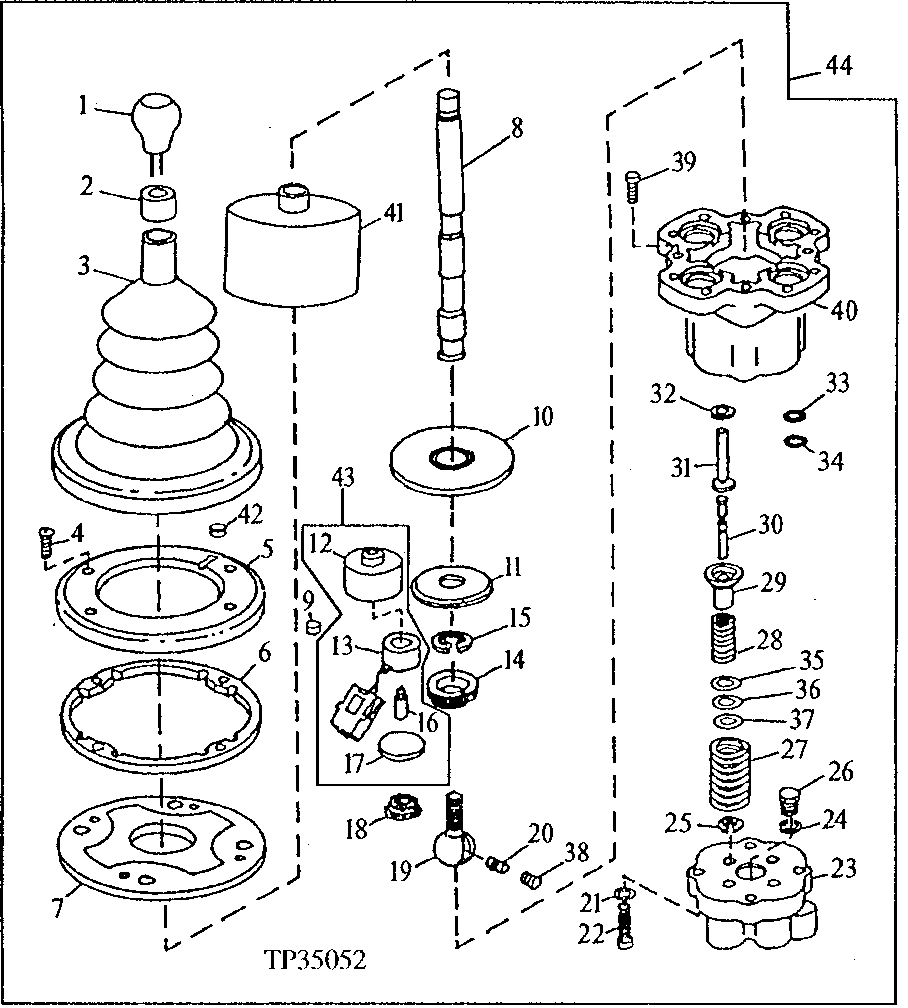

Hydraulic Remote Controller (For Use With Tool Carrier or Log Loader) ( - 563542)
