Attachment Coupler Hydraulics, For Use With Tool Carrier or Log Loader

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T102136	2	Seal	-
2	T119557	1	Bushing	-
3	T162396	2	Lubrication Fitting	SUB FOR JD7798
4	28H3401	2	Spacer	0.742" X 1.050" X 5/8"
5	19M7489	2	Cap Screw	M16 X 45
6	T146246	2	Washer	-
7	AT115976	2	Pin Fastener	Bucket Pivot
8	T63795	1	Washer	-
9	T144038	2	Plunger	USE WITH AT158618
9	T171552	2	Pin	USE WITH AT311573
10	34H385	2	Spring Pin	1/4" X 1-3/4"
11	R27218	1	Fitting Plug	-
12	R26448	3	O-Ring	-
13	38H1160	2	Adapter Fitting	-
14	-	1	Part 15	NLA, ORDER AT311573, ALSO ORDER AT158620 AND T171552
14	AT311573	1	Hydraulic Cylinder	ORDER AT376971
14	AT376971	1	Hydraulic Cylinder	-
14	AT158619	1	Seal Kit	Cylinder Seal Kit, USE WITH AT158618
14	AT158620	1	Cylinder Kit	Cylinder Seal Kit, USE WITH AT311573
15	T77613	2	O-Ring	-
16	JD7799	1	Lubrication Fitting	90°
17	AT172310	1	Quick Coupler	Coupler, High Visibility, SUB FOR AT158617
18	-	1	Part 23	AT162531 NLA, ALSO INCLUDES PIN DISCONNECT VALVE, OIL LINES, HYDRAULIC HOSES, O-RINGS, BRACKET, CLAMPS, FITTINGS PIN DISCONNECT HARNESS, STARTER SWITCH, LABELS, FUSES AND MISCELLANEOUS HARDWARE
19	AT158620	1	Cylinder Kit	-

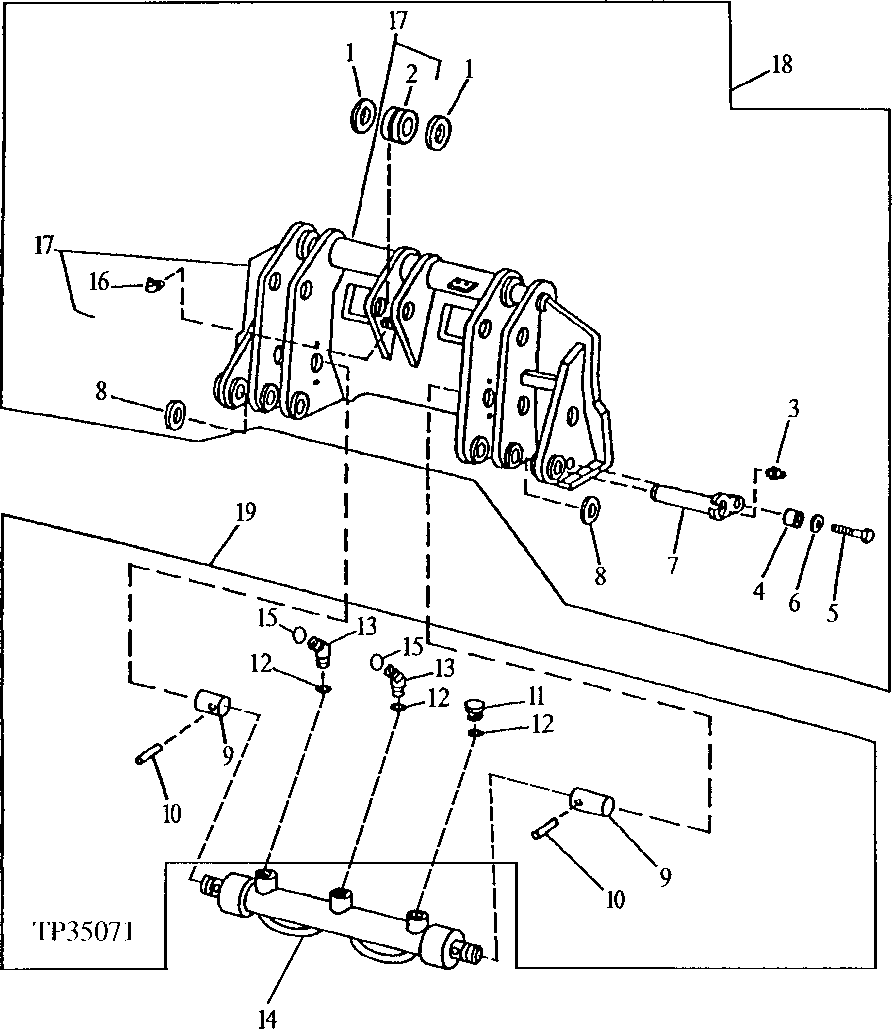

Attachment Coupler Hydraulics, For Use With Tool Carrier or Log Loader
