Two or Three Lever Remote Controller (For Use With Tool Carrier or Log Loader) (534615 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TH100591	1	Knob	BUCKET, BOOM AND AUXILIARY SECTION
2	T137986	1	Cover	-
3	T127703	1	Boot	BOOM AND BUCKET FUNCTIONS, (SUB FOR T126189, THIS APPLICATION)
3	T127703	1	Boot	AUXILIARY FUNCTION, (SUB FOR T126189, AND T126189THIS APPLICATION)
4	H77698	1	Tie Band	-
5	T103100	2	Set Screw	-
6	T132295	1	Lever	BUCKET (TWO-LEVER)
6	T132295	2	Lever	BUCKET AND AUXILIARY (THREE LEVER)
6	T132294	1	Lever	BOOM (TWO AND THREE LEVER)
7	T137987	1	Link	-
8	T137989	1	Solid Shim	BOOM PORT A AND BUCKET PORT A
9	25H50	1	Groove Pin	5/32" X 3/4"
10	T131614	3	Spring	(MAIN) (A AND B PORT OF BOOM SECTION) (A PORT OF BUCKET SECTION)
10	T138047	5	Spring	MAIN, AUXILIARY (SINGLE AND THREE LEVER) (A PORT OF BOOM SECTION) (A AND B PORT OF AUXILIARY SECTION) (A AND B PORT OF BUCKET SECTION)
11	T102955	2	Retainer	-
12	-	2	Part 16	-
13	T102958	2	Plunger	-
14	T131617	2	Ring	(K)
15	-	2	Part 19	(K) ( T131619 NO LONGER AVAILABLE)
16	-	2	Part 20	(K) ( T131616 NO LONGER AVAILABLE)
17	T102961	2	Dowel Pin	-
18	M43940	2	Snap Ring	-
19	T131615	1	Housing	(USE WITH AT146974 AUXILIARY)
19	-	1	Part 24	(SUB AT151094 OR AT151088)
20	T103105	1	Pin Fastener	-
21	T131608	1	Spring	B PORT ON BOOM
21	T131602	3	Spring	B PORT ON BUCKET, A AND B PORT ON AUXILIARY
22	T102952	2	Retainer	-
23	T122076	1	O-Ring	(K) (SUB FOR T100097)
24	F3353R	1	O-Ring	(K)
25	-	1	Part 32	(SUB AT144859)BOOM SECTION
25	-	1	Part 31	(SUB AT144858)BUCKET SECTION
26	12M7006	4	Lock Washer	6 mm
27	19M7966	4	Screw	M6 X 25
28	T22827	2	O-Ring	(K)
29	T103097	2	Cap	-
30	19H3640	6	Screw	0.138" X 3/4"
31	AT151089	1	Electrical Coil	BUCKET SECTION
31	AT151089	2	Electrical Coil	BOOM SECTION
31	-	1	Part 40	(NOT REQUIRED AUXILIARY SECTION)
32	T102974	2	Disk	BUCKET SECTION
32	T102974	2	Disk	BOOM SECTION
32	-	1	Part 43	(NOT REQUIRED AUXILIARY SECTION)
33	-	1	Part 47	(NOT REQUIRED AUXILIARY SECTION)
33	T102975	2	Spring	BOOM SECTION
33	T102975	1	Spring	BUCKET SECTION (PORT A)
33	T131610	1	Spring	BUCKET SECTION (PORT B)
34	T103107	1	Retainer	BUCKET SECTION
34	T103107	2	Retainer	BOOM SECTION
34	-	1	Part 50	(NOT REQUIRED AUXILIARY SECTION)
35	T103096	2	Pin	BUCKET SECTION
35	T103096	2	Pin	BOOM SECTION
35	-	1	Part 53	(NOT REQUIRED AUXILIARY SECTION)
36	T103095	2	Plunger	BUCKET SECTION
36	-	1	Part 56	(NOT REQUIRED AUXILIARY SECTION)
36	T103095	2	Plunger	BOOM SECTION
37	T131611	1	Spacer	BUCKET SECTION (PORT B)
38	T137988	1	Washer	-
39	14H774	2	Nut	3/8"
40	AT146974	1	Valve Stack	AUXILIARY (SINGLE AND 3 LEVER)
40	AT151094	1	Control	BUCKET (TWO AND THREE LEVER)
40	AT151088	1	Control	BOOM (TWO AND THREE LEVER)

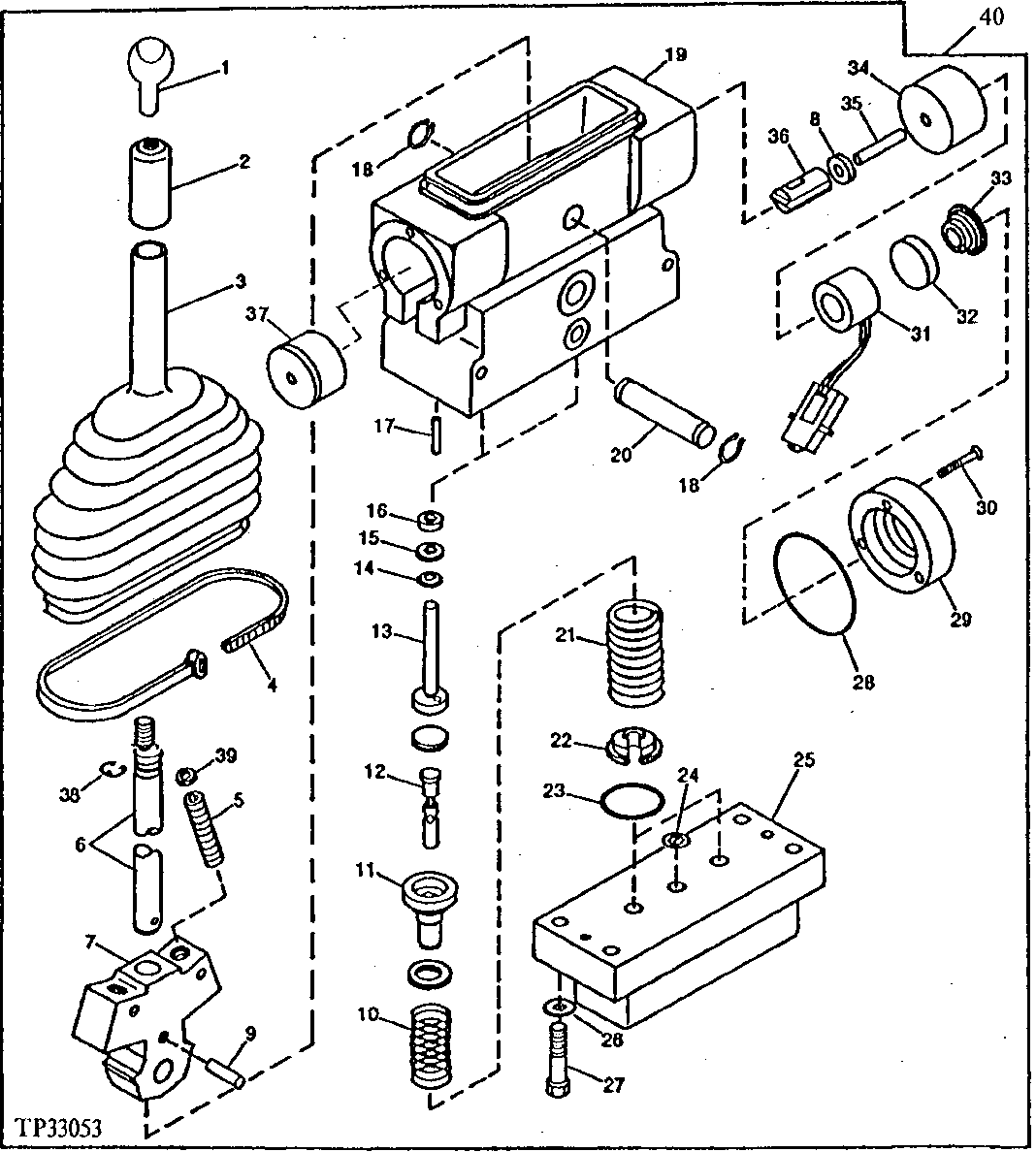

Two or Three Lever Remote Controller (For Use With Tool Carrier or Log Loader) (534615 - )
