Two or Three Lever Remote Controller (For Use With Tool Carrier or Log Loader) ( - 534614)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T39225	1	Knob	(SUB FOR T103104)
2	T102976	1	Cover	-
3	T127703	1	Boot	AUXILIARY FUNCTION, (SUB FOR T126189, AND T126189THIS APPLICATION)
3	T126189	1	Boot	BOOM AND BUCKET FUNCTION
4	H77698	1	Tie Band	(SUB FOR R43750, THIS APPLICATION)
5	T103100	2	Set Screw	-
6	T103108	1	Rod	BUCKET (TWO-LEVER AND THREE-LEVER)
6	T103108	1	Rod	BOOM (TWO-LEVER)
6	T103103	1	Rod	BOOM (THREE-LEVER)
6	T131621	1	Lever	AUXILIARY (SINGLE AND THREE-LEVER)
7	T103098	1	Link	-
8	-	2	Part 12	( T103099, NO LONGER AVAILABLE)
9	25H50	4	Groove Pin	5/32" X 3/4", (SUB FOR T103101)
10	-	2	Part 14	MAIN (BUCKET SECTION)
10	-	1	Part 15	BOOM SECTION
10	T131603	2	Spring	MAIN AUXILIARY SECTION, (SUB FOR T102954)
11	T102955	2	Retainer	-
12	-	2	Part 18	-
13	T102958	2	Plunger	-
14	T131617	2	Ring	(K)
15	-	2	Part 21	(K)
16	-	2	Part 22	(K)
17	T102961	2	Dowel Pin	-
18	M43940	2	Snap Ring	(SUB FOR T103106)
19	T131615	1	Housing	(SUB FOR T103091, THIS APPLICATION)(USE WITH AUXILIARY SECTION)
19	-	1	Part 26	(SUB AT139905 OR AT104043)
20	T103105	1	Pin Fastener	-
21	T131614	2	Spring	RETURN (BUCKET SECTION), (SUB FOR T102953)
21	-	1	Part 29	BOOM SECTION
21	T131602	2	Spring	RETURN, AUXILIARY SECTION
22	T102952	2	Retainer	-
23	T122076	1	O-Ring	(K) (SUB FOR T100097)
24	F3353R	1	O-Ring	(K)
25	-	1	Part 36	(SUB AT104048)AUXILIARY SECTION
25	-	1	Part 35	(SUB AT104043)BOOM SECTION
25	-	1	Part 34	(SUB AT104046)BUCKET SECTION
26	12M7006	4	Lock Washer	6 mm
27	19M7966	4	Screw	M6 X 25
28	T22827	2	O-Ring	(K)
29	T103097	2	Cap	-
30	19H3640	6	Screw	0.138" X 3/4"
31	AT103931	1	Electrical Coil	12-V BUCKET SECTION
31	AT103931	2	Electrical Coil	12-V BOOM SECTION
31	-	1	Part 44	(NOT REQUIRED AUXILIARY SECTION)
32	T102974	1	Disk	BUCKET SECTION (PORT A)
32	-	1	Part 47	(NOT REQUIRED AUXILIARY SECTION)
32	T102974	2	Disk	BOOM SECTION (PORT B)
33	T102975	1	Spring	BUCKET SECTION (PORT A)
33	T131610	1	Spring	BUCKET SECTION (PORT B)
33	T102975	2	Spring	BOOM SECTION
33	-	1	Part 51	(NOT REQUIRED AUXILIARY SECTION)
34	T103107	1	Retainer	BUCKET SECTION
34	-	1	Part 54	(NOT REQUIRED AUXILIARY SECTION)
34	T103107	2	Retainer	BOOM SECTION
35	T103096	2	Pin	BUCKET SECTION
35	T103096	2	Pin	BOOM SECTION
35	-	1	Part 57	(NOT REQUIRED AUXILIARY SECTION)
36	T103095	2	Plunger	BUCKET SECTION
36	T103095	2	Plunger	BOOM SECTION
36	-	1	Part 60	(NOT REQUIRED AUXILIARY SECTION)
37	T131611	1	Spacer	BUCKET SECTION (PORT B)
38	T103092	1	Shim	.004" THICK
38	T103093	1	Shim	.007" THICK
38	T103094	1	Shim	.015" THICK
39	AT139905	1	Control Valve	BUCKET (TWO-LEVER AND THREE-LEVER), (SUB FOR AT104046, THIS APPLICATION)
39	AT104043	1	Control Valve	(SUB FOR AT104042)BOOM (TWO-LEVER)
39	AT104048	1	Valve Stack	AUXILIARY (SINGLE AND THREE-LEVER)
39	AT104043	1	Control Valve	BOOM (THREE-LEVER)

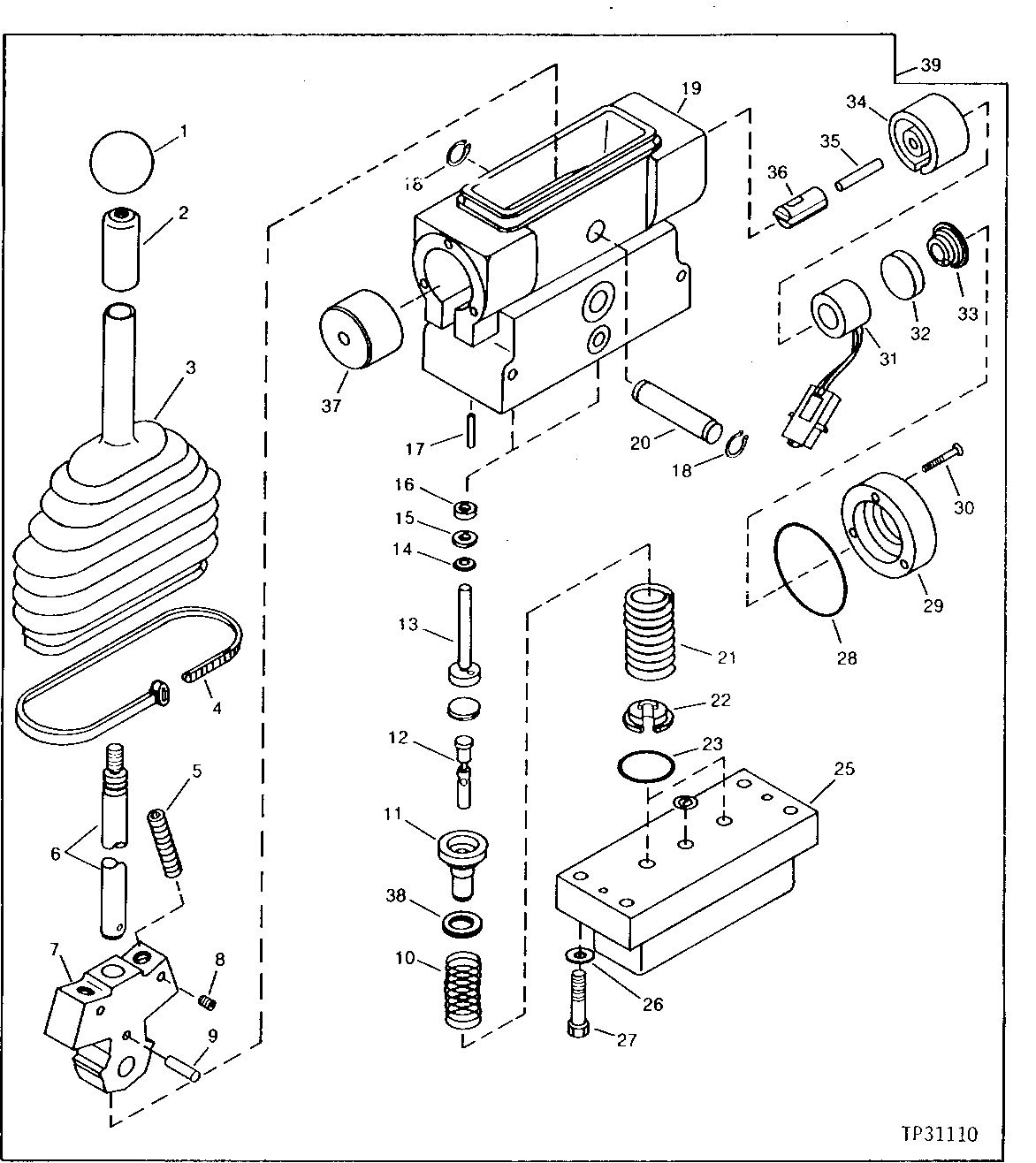

Two or Three Lever Remote Controller (For Use With Tool Carrier or Log Loader) ( - 534614)
