Third Function Auxiliary Hydraulic Lines (For Use With Tool Carrier or Log Loader)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R29936	2	O-Ring	-
2	38H1164	2	Adapter Fitting	-
3	T76938	6	O-Ring	-
4	AT116266	1	Oil Line	LEFT
5	AT116269	1	Oil Line	RIGHT
6	AT103088	2	Hydraulic Hose	(SUB FOR AT129424, THIS APPLICATION)
7	AT116271	1	Oil Line	RIGHT
8	AT116270	1	Oil Line	LEFT
9	T123721	2	Clamp	(SUB FOR T102623)
10	24M7239	3	Washer	10.700 X 21 X 2.500 mm
11	19M7935	3	Cap Screw	M10 X 55
12	AT151832	1	Oil Line	RIGHT AUXILIARY TUBE, TANDEM VALVE
12	AT116267	1	Oil Line	RIGHT
13	AT116268	1	Oil Line	LEFT
13	AT151833	1	Oil Line	LEFT AUXILIARY TUBE, TANDEM VALVE
14	T76938	2	O-Ring	-
15	T27022	1	Clamp	-
16	19M7402	1	Cap Screw	M10 X 25
17	T68500	1	CLAMP	-
18	24H1308	1	Washer	13/32" X 1" X 0.134"
19	T76938	2	O-Ring	-
20	38H1419	2	Fitting	-
21	AT141838	1	Mounting Parts	THIRD FUNCTION TWO LEVER (ALSO INCLUDES AUXILIARY SECTION VALVE, HYDRAULIC HOSES, LABELS, CLAMPS, O-RINGS, FITTINGS, STUD ASSEMBLY, AND MISCELLANEOUS HARDWARE)
21	AT151834	1	Kit	TANDEM, THIRD FUNCTION TWO LEVER KIT (INCLUDES AUXILIARY VALVE FUNCTION, HYDRAULIC HOSES, STUDS, LINES, BANDS, O-RINGS, CONTROLLER PLATE, ADAPTERS AND HARDWARE)

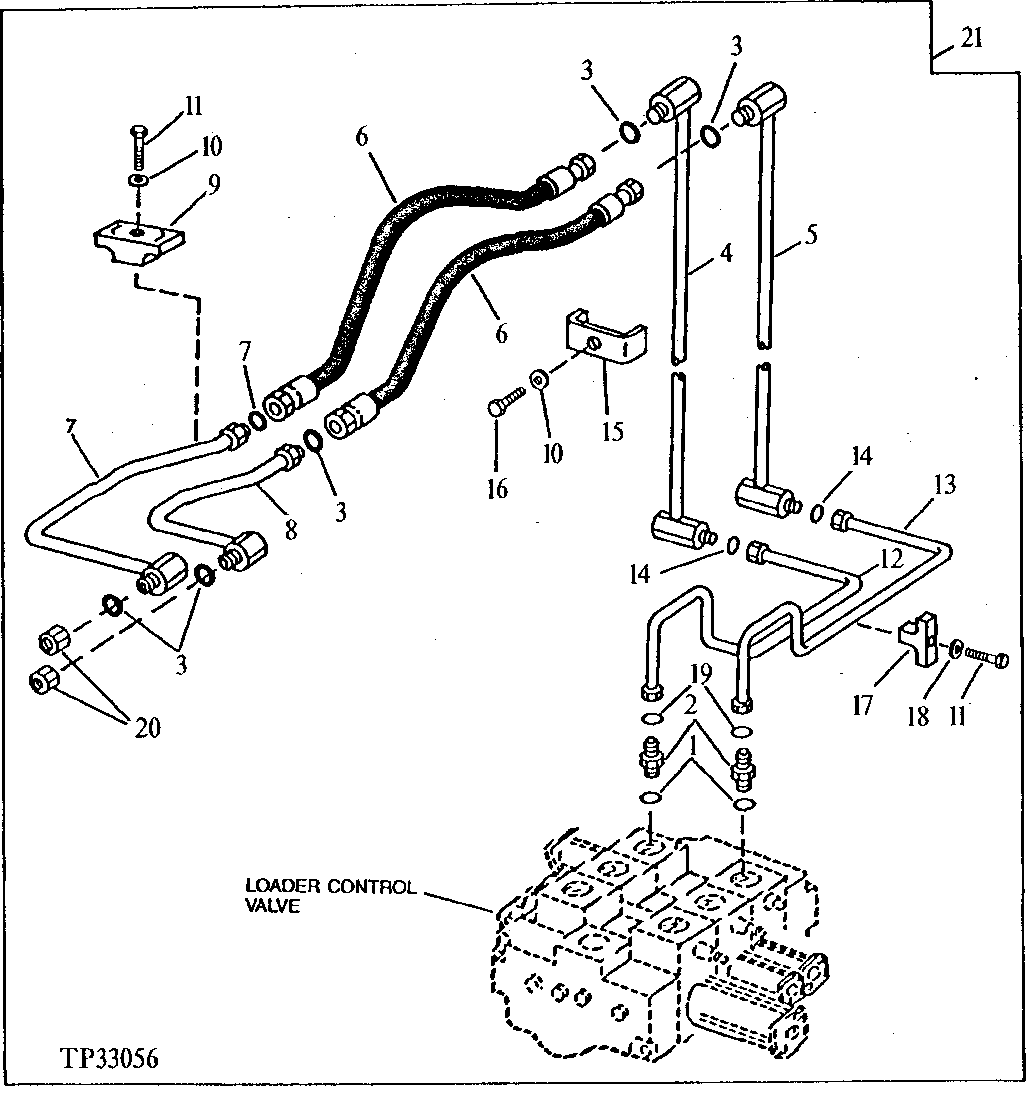

Third Function Auxiliary Hydraulic Lines (For Use With Tool Carrier or Log Loader)

Нет текстового описания
