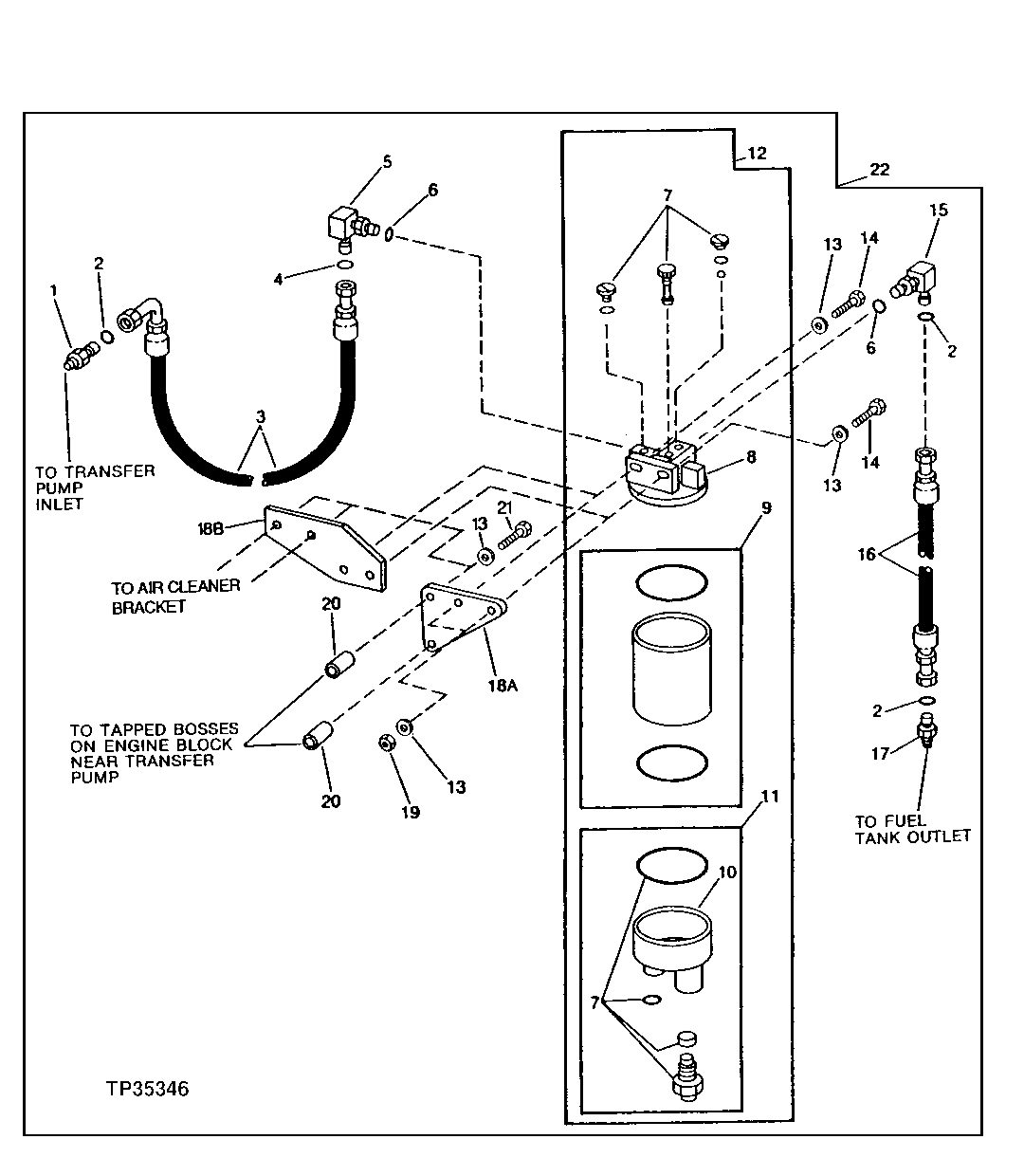

Supplemental Fuel Filter and Water Separator (Engine S.N. -299999)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T80937	1	Adapter Fitting	-
2	T77814	3	O-Ring	-
3	AT115941	1	Hydraulic Hose	17.4752" X 304 mm (12") X 9/16"
3	AT116131	1	Hydraulic Hose	9/16" X 660 mm (26") X 17.4752", (INCLUDES TWO STRAIGHT FITTINGS) (NOT ILLUSTRATED)
4	T77613	1	O-Ring	-
5	38H1004	1	Elbow Fitting	-
6	R26448	2	O-Ring	-
7	AT81477	1	Engine Overhaul Kit	-
8	-	1	Part 9	(SUB AT81268)
9	AT81478	1	Filter Element	-
10	-	1	Part 11	(SUB AT81476)
11	AT81476	1	Bowl Kit	-
12	AT81268	1	Separator	-
13	24M7239	4	Washer	10.700 X 21 X 2.500 mm, (MOUNTING PLATE)
13	24M7238	4	Washer	8.700 X 17 X 2 mm, (AIR CLEANER BRACKET)
13	24M7239	6	Washer	10.700 X 21 X 2.500 mm
14	19H3239	2	Cap Screw	3/8" X 1-1/4", (MOUNTING PLATE)
15	38H1009	1	Elbow Fitting	-
16	AT115942	1	Hydraulic Hose	9/16" X 914 mm (36") X 9/16"
16	AT102427	1	Hydraulic Hose	9/16" X 1074 mm (42-1/4") X 9/16", (SUB FOR AT116130)
17	T80938	1	Adapter Fitting	-
19	14H812	2	NUT	3/8"
19	14M7273	2	Nut	M8, (AIR CLEANER BRACKET)
20	28H3377	2	Bushing	0.423" X 0.675" X 1-3/4"
21	19H2732	2	Cap Screw	3/8" X 2-3/4"
21	19M7881	2	Screw	M8 X 20, (AIR CLEANER BRACKET)
22	AT115955	1	Complete Goods/Ship. Bundle	-
22	AT116134	1	Complete Goods/Ship. Bundle	-
18A	-	1	Part 22	( T120483 NLA)
18B	-	1	Part 23	( T108322 NLA)

Supplemental Fuel Filter and Water Separator (Engine S.N. -299999)

Нет текстового описания
