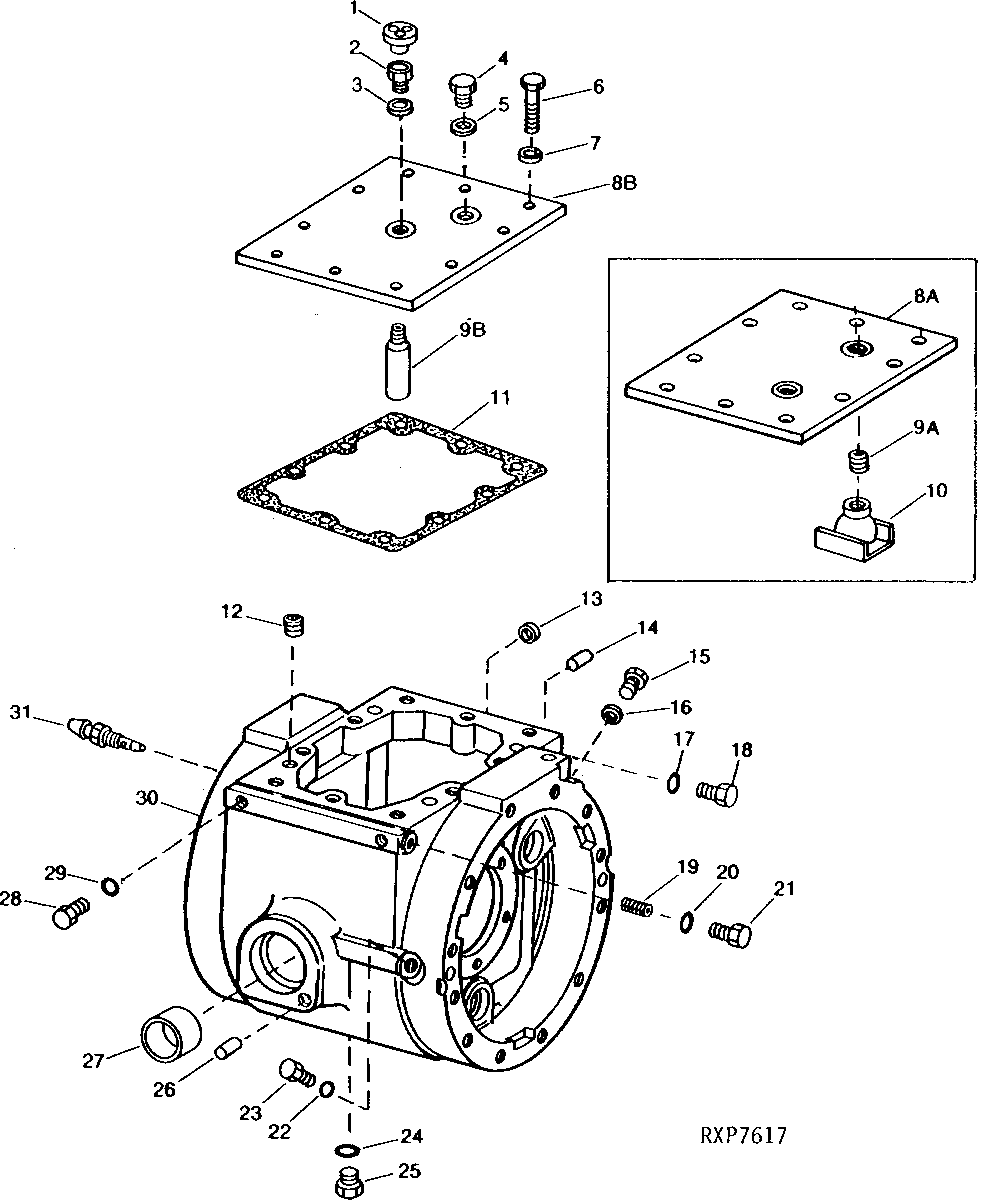

Rear Differential Case (ROAR, ROAS, ROAL)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AM1074T	1	BREATHER	-
2	R45362	1	Fitting	-
3	A4827R	1	Washer	-
4	R26727	1	DRAIN PLUG	-
5	A4827R	1	Washer	-
6	19H2500	10	CAP SCREW	7/16" X 1-3/8"
7	12H293	10	Lock Washer	7/16"
10	AR51553	1	COUPLING	-
11	R42051	1	GASKET	-
12	R21630	4	PIPE PLUG	3.175 mm (1/8")
13	R26149	1	PACKING	-
14	R48685	2	Dowel Pin	-
15	R27483	2	FITTING PLUG	-
16	H851R	2	WASHER	-
17	R51494	4	WASHER	(LESS DIFFERENTIAL LOCK)
17	R51494	2	WASHER	(WITH DIFFERENTIAL LOCK)
18	R69532	4	FITTING PLUG	(LESS DIFFERENTIAL LOCK)
18	R69532	2	FITTING PLUG	(WITH DIFFERENTIAL LOCK)
19	15H558	1	Pipe Plug	1/8", (LESS DIFFERENTIAL LOCK)
20	R26448	1	O-Ring	-
21	R27218	1	Fitting Plug	-
22	A4827R	2	Washer	-
23	R26727	2	DRAIN PLUG	-
24	R26375	1	O-Ring	-
25	R33138	1	Fitting	-
26	R48685	1	Dowel Pin	-
27	R55523	1	BUSHING	-
28	R27094	2	Drain Plug	-
29	R26286	2	O-Ring	-
30	RE35442	1	Case	REPLACEMENT ASSEMBLY, (MARKED R89592 OR R93829 ) (SUB FOR RE32611 ) (SUB RE35547)
31	R21612	2	Bleed Valve	-
8A	R87119	1	Cover	(SUB A4827R, R26727, R99081 AND R99861)
8B	R99081	1	COVER	-
9A	29H587	1	THREADED NIPPLE	3/8"
9B	R104777	1	Structural Tube	(SUB FOR R99861 ) (SUB R132574 AND R112210)

Rear Differential Case (ROAR, ROAS, ROAL)
