Loader Control Valve To Boom Cylinder Hydraulics ( - 534614)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R29936	2	O-Ring	-
2	38H1164	2	Adapter Fitting	-
2	38H1196	2	Adapter Fitting	-
3	T76938	6	O-Ring	-
3	T78612	2	O-Ring	-
4	AT102502	1	Oil Line	LOWER
4	AT103079	1	Oil Line	LOWER
5	AT102499	1	Oil Line	RAISE
5	AT103080	1	Oil Line	RAISE
6	AT102500	1	Oil Line	RAISE
6	AT104010	1	Oil Line	RAISE
7	AT102503	1	Oil Line	LOWER
7	AT104009	1	Oil Line	LOWER
8	AT102435	2	Hydraulic Hose	30.1752" X 1279 mm (50-1/2") X 30.1752", LOWER
9	-	1	Part 15	( AT103004 NO LONGER AVAILABLE DUE TO PDC OBSOLESCENCE POLICY) LOWER
9	AT104011	1	Oil Line	LOWER
10	-	1	Part 17	( AT103003 NO LONGER AVAILABLE DUE TO PDC OBSOLESCENCE POLICY) RAISE
10	AT104012	1	Oil Line	RAISE
11	T77858	4	O-Ring	-
12	AT102501	2	Oil Line	RAISE
12	AT135169	2	Line	RAISE, (SUB FOR AT104007)
13	AT102504	2	Oil Line	LOWER
13	AT104008	2	Oil Line	LOWER
14	AT102435	2	Hydraulic Hose	30.1752" X 1279 mm (50-1/2") X 30.1752", RAISE
14	AT103088	2	Hydraulic Hose	RAISE
15	T77858	4	O-Ring	-
16	T76938	2	O-Ring	-
17	38H1037	2	Elbow Fitting	-
18	38H1007	2	Elbow Fitting	-
18	38H1037	2	Elbow Fitting	-
19	U12547	2	O-Ring	-
19	R29936	2	O-Ring	-
20	R29936	2	O-Ring	-
21	T77858	2	O-Ring	-
22	28H3383	2	Bushing	0.493" X 0.675" X 3/4"
23	T40705	2	Clamp	-
24	19M7572	2	Cap Screw	M10 X 45
25	24M7239	2	Washer	10.700 X 21 X 2.500 mm, (NO LONGER REQUIRED)
26	AR89602	4	Clamp	-
26	AT84191	4	Hose Clamp	(SUB FOR AT103166, THIS APPLICATION)
27	T105773	2	Guide	RAISE TUBE
28	T105774	2	Guide	LOWER TUBE
28	T105773	2	Guide	LOWER TUBE
29	19M8499	4	Cap Screw	M10 X 60
29	19M8499	4	Cap Screw	M10 X 60
30	24H1308	8	Washer	13/32" X 1" X 0.134"
30	24H1308	8	Washer	13/32" X 1" X 0.134"
31	T127230	2	Support	-
31	T127230	2	Support	-
32	14M7274	4	Nut	M10
32	14M7274	4	Nut	M10

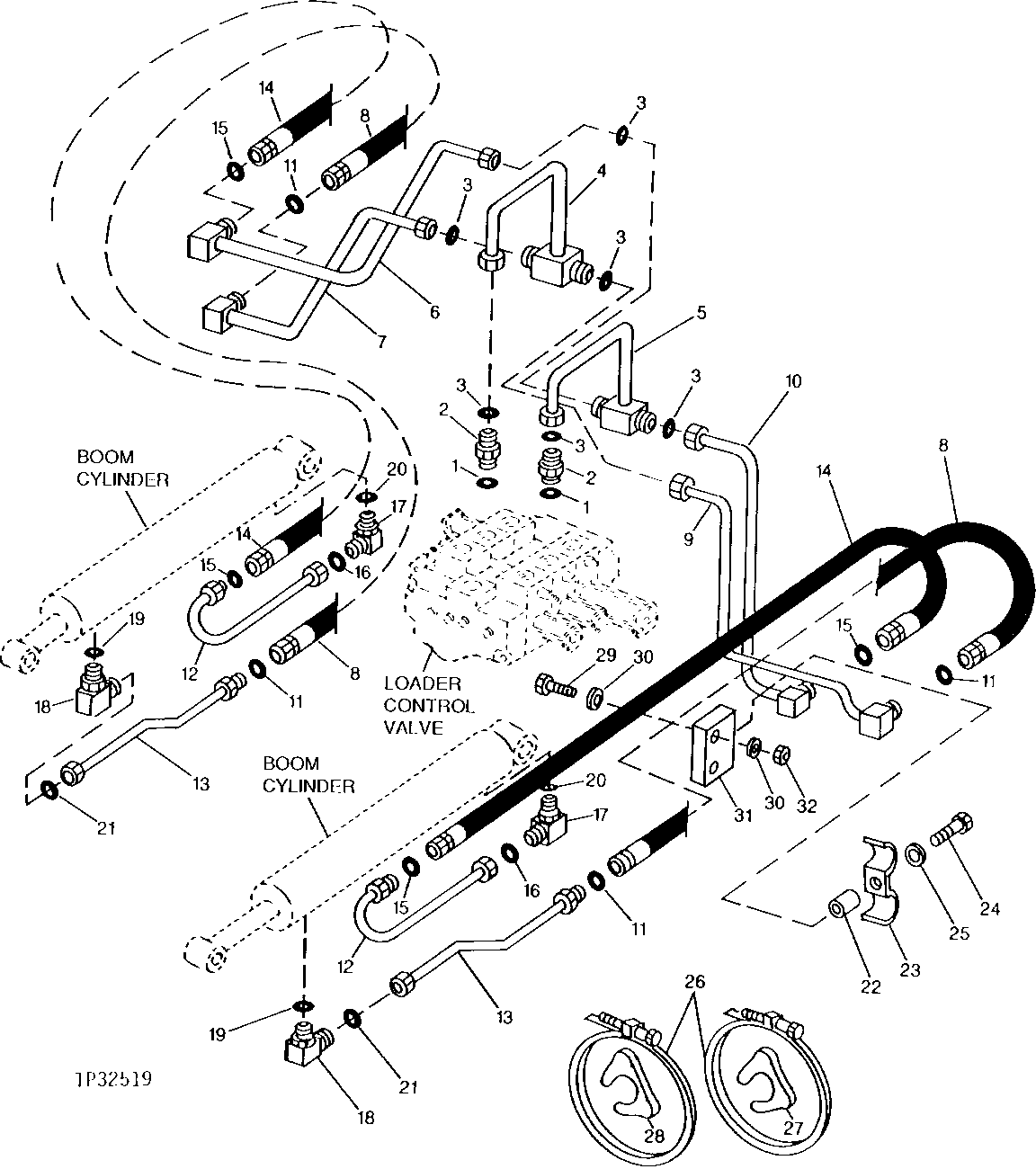

Loader Control Valve To Boom Cylinder Hydraulics ( - 534614)
