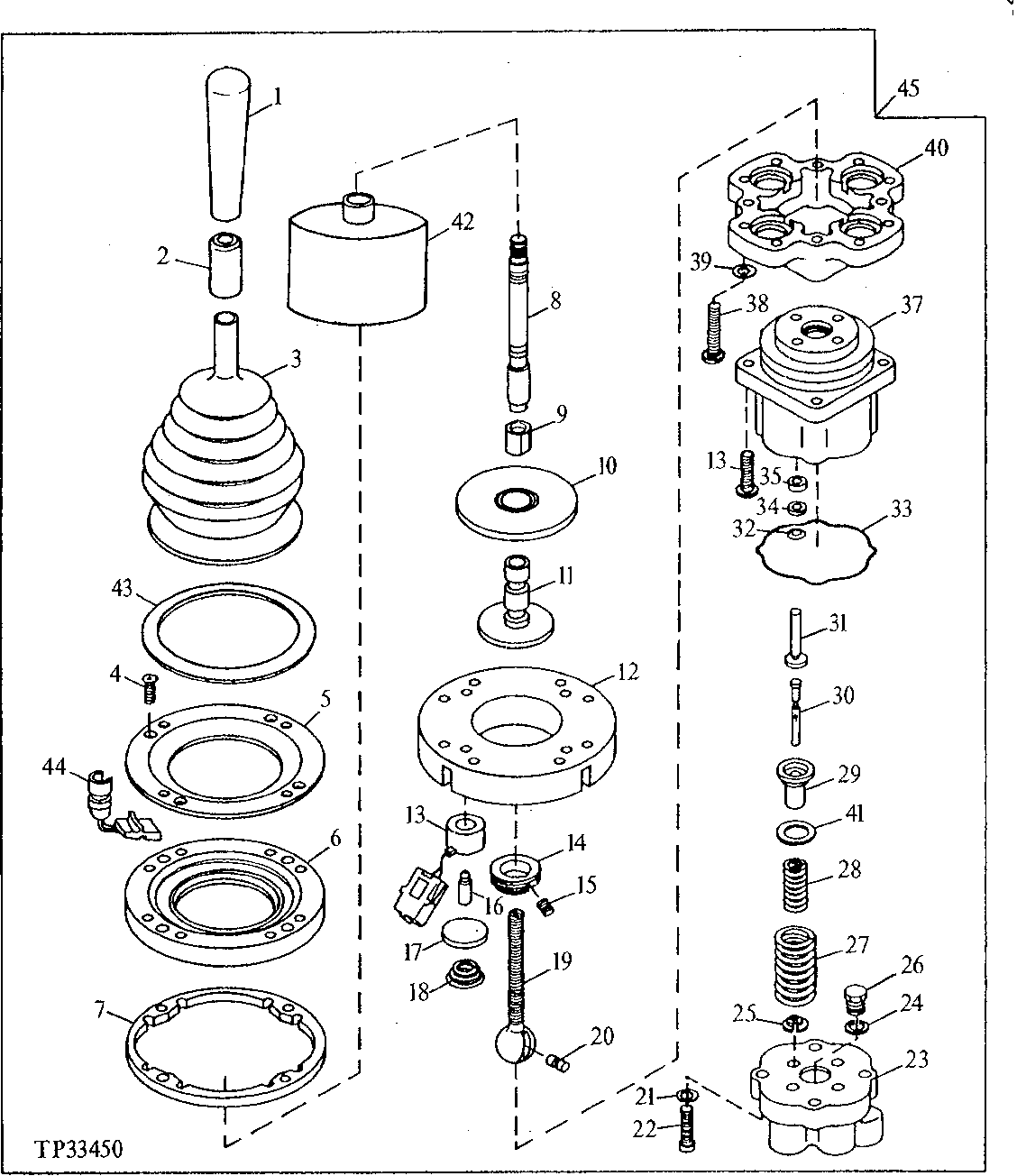

Hydraulic Remote Controller (For Use With Tool Carrier or Log Loader) ( - 537112)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T102971	1	Handle	TAPERED
2	T102976	1	Cover	-
3	T102970	1	Boot	-
4	19H3639	4	Screw	0.190" X 3/4"
5	T102969	1	Plate	-
6	T102968	1	Plate	-
7	T144169	1	Spacer	(SUB FOR T102967)
8	T102972	1	Handle	MANUAL
9	T102973	1	Nut	-
10	AT103929	1	Plate	DETENT
11	AT103930	1	Plate	PUSH
12	T102966	1	Plate	-
13	AT139925	3	Electrical Coil	(12-V), (SUB FOR AT103931, THIS APPLICATION)
14	T102959	1	Retainer	BALL JOINT
15	T131607	1	Set Screw	-
16	T102965	4	Pin Fastener	-
17	T102974	3	Disk	PULL
18	T102975	3	Spring	(POSITION A, C AND D)
18	T131610	1	Spring	(POSITION B) (NOT ILLUSTRATED)
19	T102960	1	Lever	DETENT
20	T102963	1	Pin Fastener	ANTI-ROTATION
21	12M7006	4	Lock Washer	6 mm
22	19M7966	4	Screw	M6 X 25
23	-	1	Part 24	(SUB AT102145)
23	T102961	2	Dowel Pin	(IN HOUSING)
24	R26448	1	O-Ring	(K1)
25	T102952	4	Retainer	-
26	R27218	1	Fitting Plug	-
27	T131608	4	Spring	RETURN, (SUB FOR T102953, THIS APPLICATION)
28	T131609	1	Spring	MAIN (POSITION C), (SUB FOR T102954)
28	-	2	Part 31	(POSITION A AND D)
28	-	1	Part 32	(POSITION B)
29	T102955	4	Retainer	-
30	-	4	Part 34	(SUB AT102145)
31	T102958	4	Plunger	-
32	T131617	4	Ring	(K1) (K2)
33	-	1	Part 37	(K1)
34	-	4	Part 38	(K1) (K2)
35	-	4	Part 39	(K1) (K2)
36	19H3641	4	Screw	1/4" X 1.380"
37	-	1	Part 41	(SUB AT102145)
38	19H3642	4	Screw	0.190" X 2"
39	12H246	4	LOCK WASHER	0.190"
40	T102964	1	Plate	-
41	T103092	1	Shim	.004" THICK
41	T103093	1	Shim	.007" THICK
41	T103094	1	Shim	.015" THICK
42	T131604	1	Cover	HEAT SHRINK WRAP (NO LONGER AVAILABLE)
43	T131606	1	Gasket	-
44	T131605	1	Pressure Relief Valve	STRAIN RELIEF
45	AT129661	1	Electronic Control Unit	HYDRAULIC REMOTE, (SUB AT151073)
