Gearshift System (Control Valve) (624E)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

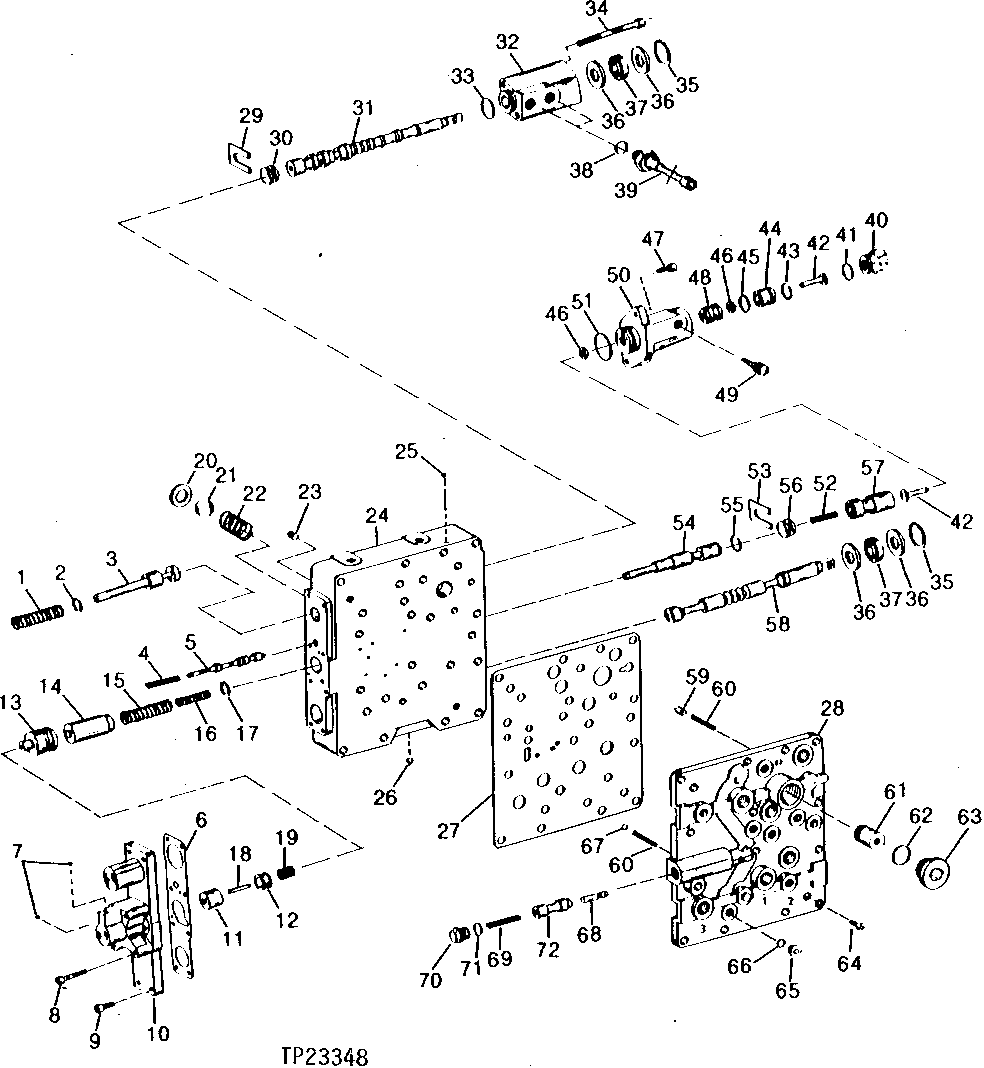

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T116911	1	Compression Spring	-
2	T116903	3	Shim	-
2	T116906	3	Washer	-
2	T116904	3	Washer	-
2	T116905	3	Washer	-
3	T144546	1	Piston	(SUB FOR T116950)
4	T116492	1	Compression Spring	-
5	T116554	1	Piston	-
6	T145865	1	Gasket	(SUB FOR T131716)
7	T24652	2	Ball	(SUB FOR T116440)
8	19M8265	4	Screw	M6 X 50, (SUB FOR T116887)
9	19M8511	4	Screw	M6 X 22
10	T144547	1	Cover	(SUB FOR T116952)
11	T116552	1	Piston	-
12	-	1	Part 15	( T123065 NO LONGER AVAILABLE DUE TO PDC OBSOLESCENCE POLICY)
13	T116551	1	Bushing	-
14	T116547	1	Piston	-
15	T116489	1	Compression Spring	-
16	T116490	1	Compression Spring	-
17	T116510	1	Washer	-
18	T116443	1	Needle Roller	-
19	T116491	1	Compression Spring	-
20	T116955	1	Ring	-
21	L38752	1	Ball	(SUB FOR T116442)
22	T116926	1	Compression Spring	-
23	-	1	Part 26	( T108405 NO LONGER AVAILABLE DUE TO PDC OBSOLESCENCE POLICY)
24	T116948	1	Housing	-
25	T24652	1	Ball	(SUB FOR T116440)
26	L38730	1	Ball	(SUB FOR T116876)
27	T145866	1	Gasket	(SUB FOR T116953, T131717)
28	T116954	1	Plate	-
29	T116545	1	Strap	-
30	T116543	1	Piston	-
31	T116949	1	Valve Spool	(SUB T123940 AND T123939)
31	T123940	1	Valve Spool	-
32	T116559	1	Cover	(SUB T123939 AND T123940)
32	T123939	1	Cover	-
33	L55601	1	O-Ring	(SUB FOR T116419)
34	19M7604	2	Screw	M8 X 80
35	40M1855	2	Snap Ring	-
36	T116461	4	Washer	-
37	T116431	2	Seal	-
38	T74553	2	O-Ring	(SUB FOR T116868 AND AT85152)
39	AT86950	2	Switch	NEUTRAL LOCK AND REVERSE WARNING
40	T116944	1	Pipe Bushing	-
41	L53816	1	O-Ring	(SUB FOR T116866)
42	T116563	2	Piston	-
43	T32087	1	SNAP RING	(SUB FOR T116399)
44	T116565	1	Guide	-
45	T161218	1	O-Ring	(SUB FOR T116424)
46	T116428	2	Seal	-
47	19M7768	2	Screw	M6 X 16, (SUB FOR T116890)
48	T116564	1	Orifice	-
49	T116457	1	Breather	-
50	T116521	1	Cylinder	-
51	L55601	1	O-Ring	(SUB FOR T116419)
52	T116616	1	Compression Spring	-
53	T116545	1	Strap	-
54	T116548	1	Piston	-
55	T116398	1	Snap Ring	-
56	T116543	1	Piston	-
57	T116568	1	Piston	-
58	T116555	1	Valve Spool	-
59	T116573	1	Pin	-
60	T116483	2	Compression Spring	-
61	T116957	1	Piston	-
62	R82198	1	O-Ring	-
63	T116892	1	Fitting Plug	-
64	19M7657	2	Screw	M8 X 25
65	R53869	7	Drain Plug	(SUB FOR T116893)
66	L11698	7	O-Ring	(SUB FOR T116416)
67	T116441	1	Ball	-
68	T116941	1	Piston	-
69	T116910	1	Compression Spring	-
70	T116943	1	Fitting Plug	-
71	R104558	1	O-Ring	(SUB FOR T116426 AND T107878)
72	T116942	1	Piston	-
